DA-7035-153-8N | Temperature switch | range 250-415°F (120-215°C) | max. temp. 550°F (260°C) | min. deadband 42°F (23°C). | Dwyer Instruments

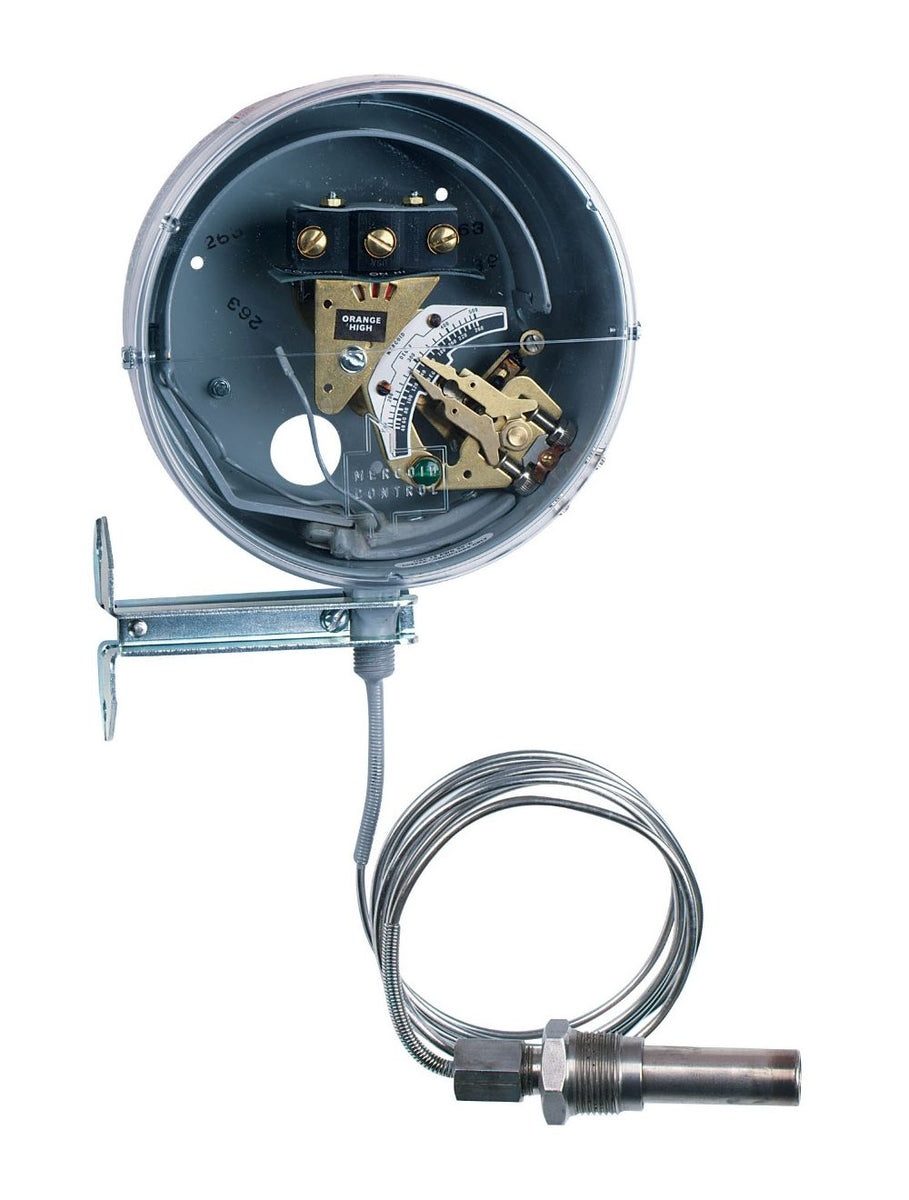

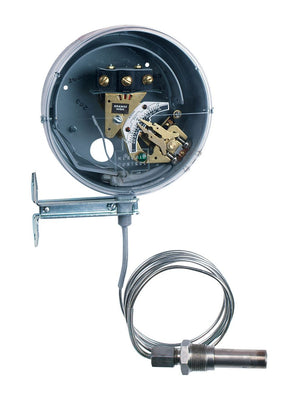

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DA-7035-153-8N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DA-7035-153-8N Documents

DA-7035N Series DA-7035N Catalog Page More Info

Overview

Details for DA-7035-153-8N

The Dwyer Instruments DA-7035-153-8N is a 250/415F temperature switch with a snap action and a 6' capillary. This switch is ideal for applications where precise temperature control is required, such as in industrial settings or laboratories. The DA-7035-153-8N features a rugged construction that can withstand harsh environments. It has a brass body and a stainless steel stem, which provide excellent corrosion resistance. The switch also has a wide temperature range (-65 to 415Â°F), making it suitable for a variety of applications. The DA-7035-153-8N is easy to install and use. It has a 1/2" NPT male connection and a SPDT (single pole double throw) contact configuration. The switch can be mounted in any orientation, and it comes with a mounting bracket for easy installation. The DA-7035-153-8N is a reliable and accurate temperature switch that is ideal for a variety of applications. It is backed by a one-year warranty from Dwyer Instruments. Order your DA-7035-153-8N today from our HVAC supply store and get the best prices and fast shipping on all your industrial supply needs.

Series DA-7035N Temperature Switches

Bulb and Capillary, Inert Gas Fill

The Series DA-7035N Temperature Switches include the same time-proven switching mechanism used in our Series DA pressure switches. Bourdon tube ensures high sensitivity and long life. Fully adjustable deadband makes units suitable for a wide range of control applications. Visible, calibrated dial and external adjustments make changing set points simple and fast.

Product Applications

Mechanical process temperature monitoring

Adjustable deadband
Snap action switch standard
Inert gas activated Bourdon tube
No cross ambient temperature effects
No bulb elevation correction required
Visible dial calibrated in both °F and °C
Visible on/off indication

Specifications

Series: DA-7035N Temperature Switches
freeship
Category/Type: Temperature
Type: Switches
Series: DA-7035N Temperature Switches
Service: Compatible liquids or gases.
Wetted Materials: Bulb and connection: 304 SS.
Temperature Limit: Process: See model chart on catalog page; Ambient: 180°F (82°C).
Pressure Limit: 300 psi (20.6 bar).
Enclosure Rating: General purpose. Optional weatherproof and explosion-proof.
Repeatability: ±1% of FS.
Switch Type: SPDT snap switch. Optional DPDT snap and a variety of mercury switches.
Electrical Rating: 10 A @ 120/240/480 VAC.
Electrical Connections: Screw terminal.
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
Process Connection: 3/4" male NPT. Other sizes available.
Mounting Orientation: Vertical and level.
Set Point Adjustment: External knobs for set point and reset point.
Weight: 5 lb (2.3 kg).
Deadband: Adjustable from minimum in model chart to full range. Optional low fixed deadband.
Capillary: 6' (1.8 m) standard. Ranges 1N - 7N; and 10N: copper. Ranges 8N; 9N; 11N: 304 SS.
Set Point Scale: Indication in °F and °C.
Options: See switch type; see enclosures; fixed deadband; longer or shorter capillary; armored capillary; wells; two stage; 1/2" or 1" connection sizes; manual reset.
