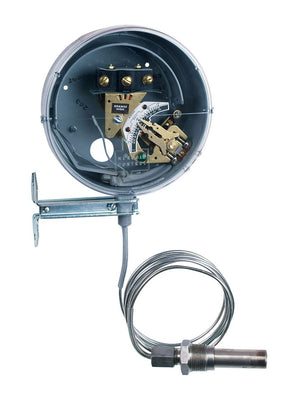

DA-7035-153-5N | Temperature switch | range 100-200°F (40-95°C) | max. temp. 300°F (150°C) | min. deadband 25°F (14°C). | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DA-7035-153-5N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DA-7035-153-5N Documents

DA-7035N Series DA-7035N Catalog Page More Info

Overview

Details for DA-7035-153-5N

DA-7035-153-5N Temperature Switch by Dwyer Instruments Dwyer Instruments' DA-7035-153-5N Temperature Switch is a reliable and versatile solution for precise temperature monitoring and control. Featuring a high-quality sensor, this switch provides accurate and reliable measurements within a range of 100-200Â°F. Its compact design and easy installation make it suitable for various applications, including industrial processes, HVAC systems, and equipment monitoring. With its adjustable set point and narrow deadband, the DA-7035-153-5N allows for precise temperature control, ensuring optimal operation and preventing temperature deviations. Its robust construction and durable materials ensure long-lasting performance in demanding environments, minimizing downtime and maintenance costs. Key Features: - Temperature range: 100-200Â°F - Adjustable set point - Narrow deadband - Compact and easy to install - Durable construction for harsh environments Benefits: - Precise temperature monitoring and control - Optimal equipment operation and efficiency - Minimized downtime and maintenance costs For reliable temperature monitoring and control in industrial and commercial applications, trust the DA-7035-153-5N Temperature Switch by Dwyer Instruments. Visit our HVAC supply store today for the best prices and fast shipping on all your industrial equipment needs!

Series DA-7035N Temperature Switches

Bulb and Capillary, Inert Gas Fill

The Series DA-7035N Temperature Switches include the same time-proven switching mechanism used in our Series DA pressure switches. Bourdon tube ensures high sensitivity and long life. Fully adjustable deadband makes units suitable for a wide range of control applications. Visible, calibrated dial and external adjustments make changing set points simple and fast.

Product Applications

Mechanical process temperature monitoring

Adjustable deadband
Snap action switch standard
Inert gas activated Bourdon tube
No cross ambient temperature effects
No bulb elevation correction required
Visible dial calibrated in both °F and °C
Visible on/off indication

Specifications

Series: DA-7035N Temperature Switches
freeship
Category/Type: Temperature
Type: Switches
Series: DA-7035N Temperature Switches
Service: Compatible liquids or gases.
Wetted Materials: Bulb and connection: 304 SS.
Temperature Limit: Process: See model chart on catalog page; Ambient: 180°F (82°C).
Pressure Limit: 300 psi (20.6 bar).
Enclosure Rating: General purpose. Optional weatherproof and explosion-proof.
Repeatability: ±1% of FS.
Switch Type: SPDT snap switch. Optional DPDT snap and a variety of mercury switches.
Electrical Rating: 10 A @ 120/240/480 VAC.
Electrical Connections: Screw terminal.
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
Process Connection: 3/4" male NPT. Other sizes available.
Mounting Orientation: Vertical and level.
Set Point Adjustment: External knobs for set point and reset point.
Weight: 5 lb (2.3 kg).
Deadband: Adjustable from minimum in model chart to full range. Optional low fixed deadband.
Capillary: 6' (1.8 m) standard. Ranges 1N - 7N; and 10N: copper. Ranges 8N; 9N; 11N: 304 SS.
Set Point Scale: Indication in °F and °C.
Options: See switch type; see enclosures; fixed deadband; longer or shorter capillary; armored capillary; wells; two stage; 1/2" or 1" connection sizes; manual reset.
