DA-7035-153-11N | Temperature switch | range 100-500°F (40-260°C) | max. temp. 600°F (315°C) | min. deadband 100°F (56°C). | Dwyer Instruments

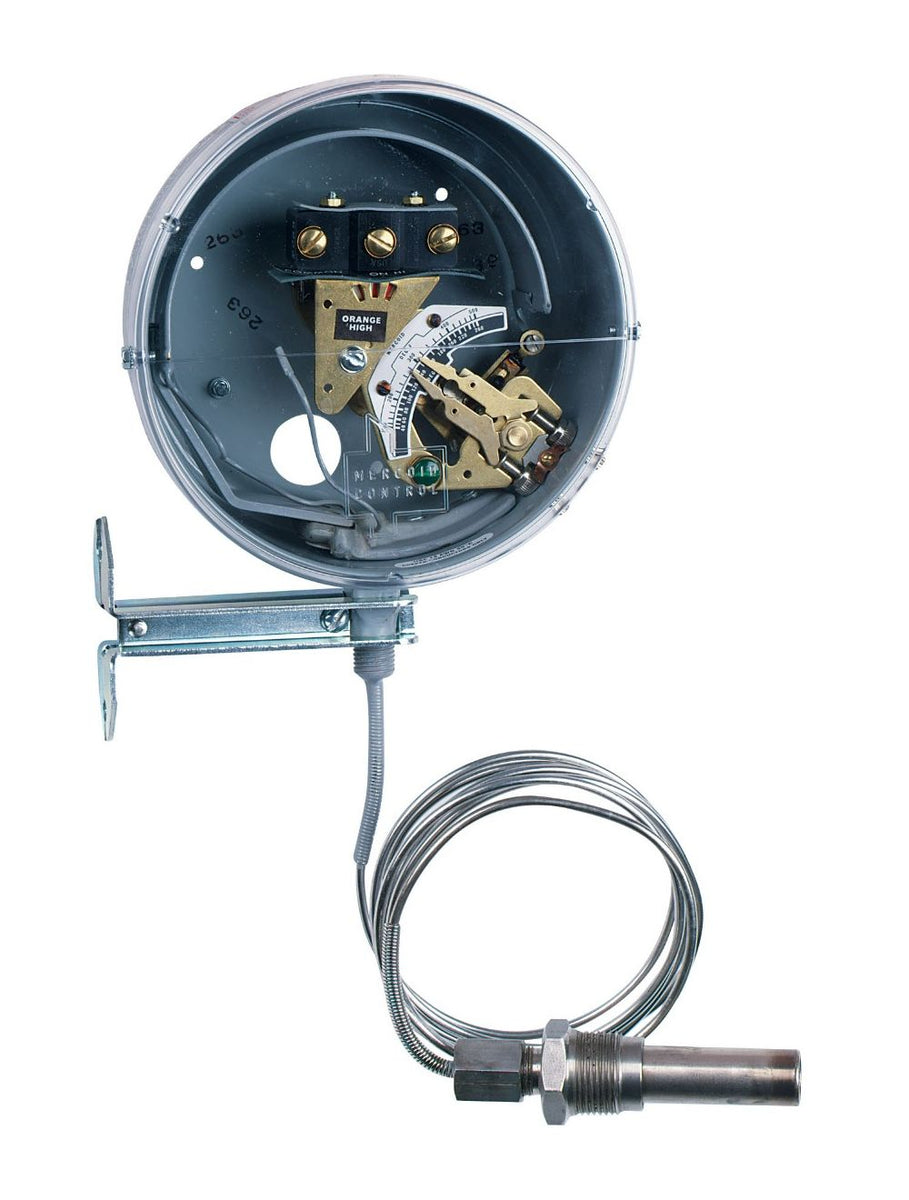

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DA-7035-153-11N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DA-7035-153-11N Documents

DA-7035N Series DA-7035N Catalog Page More Info

Overview

Details for DA-7035-153-11N

Dwyer Instruments DA-7035-153-11N Temperature Controller: Precision Temperature Control for Industrial Applications The Dwyer Instruments DA-7035-153-11N Temperature Controller provides precise and reliable temperature control for a wide range of industrial applications. This compact and versatile controller features a wide temperature range of 100-500Â°F, making it suitable for various temperature-sensitive processes. Its SPDT (Single Pole Double Throw) switch offers flexible control options, allowing you to configure the controller to meet your specific requirements. The 6' capillary sensor ensures accurate temperature sensing, even in remote locations. Built with high-quality materials, the DA-7035-153-11N controller is designed for durability and long-lasting performance in harsh industrial environments. Its rugged construction withstands extreme temperatures and vibrations, ensuring consistent operation. Our HVAC supply store offers competitive pricing and fast shipping on the Dwyer Instruments DA-7035-153-11N Temperature Controller. Upgrade your temperature control system today with this reliable and efficient controller, and experience the benefits of precision temperature management in your industrial applications.

Series DA-7035N Temperature Switches

Bulb and Capillary, Inert Gas Fill

The Series DA-7035N Temperature Switches include the same time-proven switching mechanism used in our Series DA pressure switches. Bourdon tube ensures high sensitivity and long life. Fully adjustable deadband makes units suitable for a wide range of control applications. Visible, calibrated dial and external adjustments make changing set points simple and fast.

Product Applications

Mechanical process temperature monitoring

Adjustable deadband
Snap action switch standard
Inert gas activated Bourdon tube
No cross ambient temperature effects
No bulb elevation correction required
Visible dial calibrated in both °F and °C
Visible on/off indication

Specifications

Series: DA-7035N Temperature Switches
freeship
Category/Type: Temperature
Type: Switches
Series: DA-7035N Temperature Switches
Service: Compatible liquids or gases.
Wetted Materials: Bulb and connection: 304 SS.
Temperature Limit: Process: See model chart on catalog page; Ambient: 180°F (82°C).
Pressure Limit: 300 psi (20.6 bar).
Enclosure Rating: General purpose. Optional weatherproof and explosion-proof.
Repeatability: ±1% of FS.
Switch Type: SPDT snap switch. Optional DPDT snap and a variety of mercury switches.
Electrical Rating: 10 A @ 120/240/480 VAC.
Electrical Connections: Screw terminal.
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
Process Connection: 3/4" male NPT. Other sizes available.
Mounting Orientation: Vertical and level.
Set Point Adjustment: External knobs for set point and reset point.
Weight: 5 lb (2.3 kg).
Deadband: Adjustable from minimum in model chart to full range. Optional low fixed deadband.
Capillary: 6' (1.8 m) standard. Ranges 1N - 7N; and 10N: copper. Ranges 8N; 9N; 11N: 304 SS.
Set Point Scale: Indication in °F and °C.
Options: See switch type; see enclosures; fixed deadband; longer or shorter capillary; armored capillary; wells; two stage; 1/2" or 1" connection sizes; manual reset.
