CX-13 | Compressor pressure switch | 1 port | range 50-175 psig (3.4-12.1 bar) | approx. adj. deadband 35-55 psig (2.4-3.8 bar) | max. pressure 204 psig (14.1 bar). | Dwyer Instruments

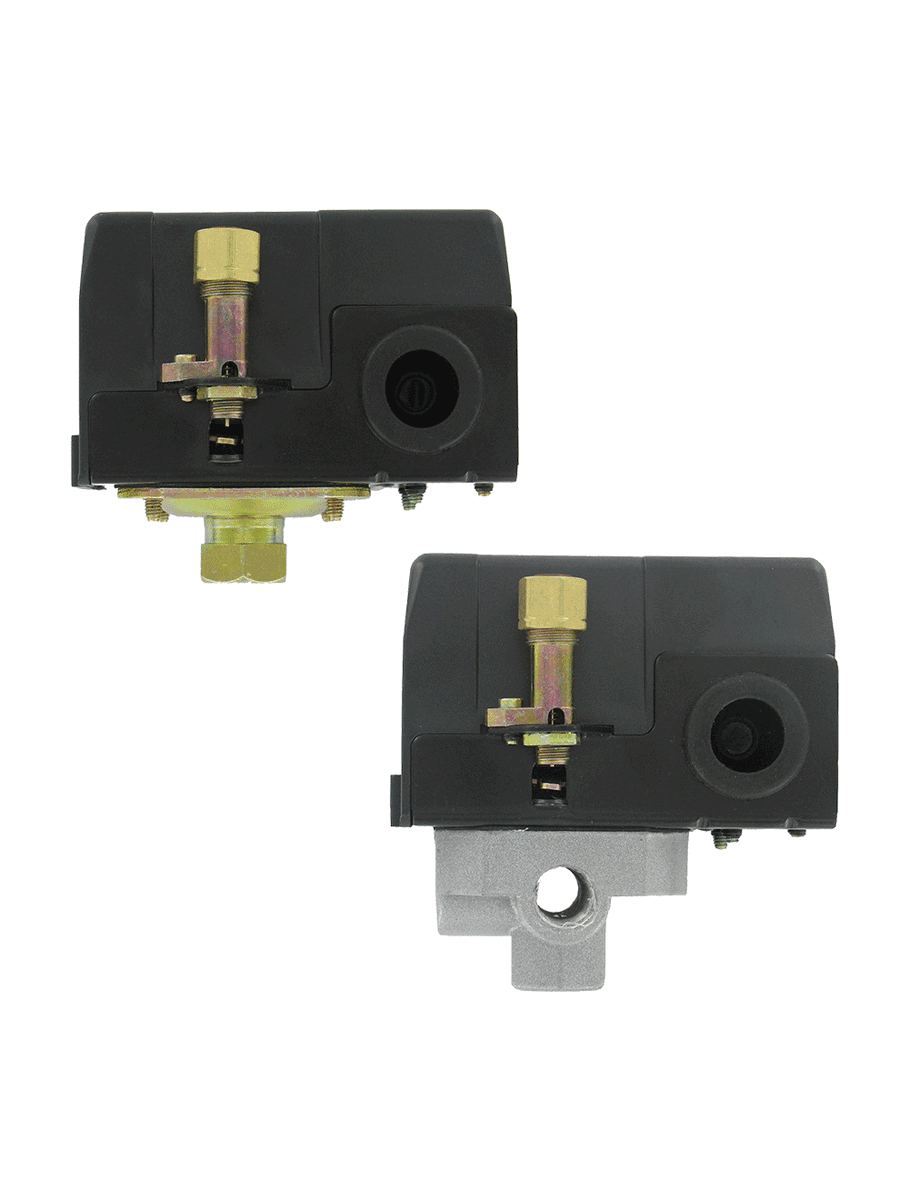

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CX-13

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments CX-13 Documents

Instruction Manual Series CX Catalog Page More Info

Overview

Details for CX-13

CX-13 Low Pressure Compressor Switch by Dwyer Instruments The CX-13 low pressure compressor switch from Dwyer Instruments is a reliable and accurate device designed to control and protect industrial compressors. Key Features: * Adjustable pressure range: 0.5 to 5 psi * Differential pressure: 0.25 psi * Electrically rated: 10A at 120/240 VAC * Provides precise pressure control * Improves compressor efficiency * Prevents damage from low pressure conditions Benefits: * Extends compressor life * Optimizes system performance * Ensures safe and efficient operation * Easy to install and maintain Applications: * Air compressors * Refrigerant compressors * Pneumatic systems Our HVAC supply store offers the CX-13 low pressure compressor switch at competitive prices. Trust Our HVAC supply store for fast shipping and exceptional customer service.

SERIES CX COMPRESSOR PRESSURE SWITCH

Adjustable Set Point and Deadband, 20 Amp Rating

The Series CX Compressor Pressure Switches are designed with a 20 amp normally closed SPST switch for direct control of pumps and motors. The set point and deadband are both easily adjustable via screw terminals inside the cover. For ease of installation, the switches come with a 1/4" female NPT process connection or the optional 4-port connection block on the CX-4 models. Besides making installation easier, one of the other ports can be used to install a pressure gage. Plus, these switches can be mounted in any orientation.

These units are perfect for regulating tank pressure on small air compressors. The CX series switches come with an unloader valve, which prevents compressors from starting under load. They also come with an auto/off disconnect lever for manually cutting off the load. When the lever is in the off position, there is a test button inside the housing that can be pushed to turn on the load.

Specifications

Series: CX COMPRESSOR PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: CX COMPRESSOR PRESSURE SWITCH
Service: Air and non-combustible compatible gases.
Wetted Materials: NBR (Nitrile-Butadiene) rubber diaphragm; steel connection (CX-1); aluminum alloy connection (CX-4).
Temperature Limits: 140°F (60°C).
Pressure Limits: See Ordering page.
Enclosure Rating: General purpose.
Repeatability: ±5 psig (±0.3 bar).
Switch Type: 2 each SPST snap action; normally closed (NC).
Electrical Ratings: 20 A @ 120 VAC; 12 A @ 240 VAC; 9.6 A @ 240 VAC (3 phase); 8.6 A @ 32 VDC; 3.1 A @ 120 VDC; 1.6 A @ 240 VDC. 1.5 HP @ 120 VAC; 2 HP @ 240 VAC; 3 HP @ 240 VAC (3 phase); 0.25 HP @ 32/120/240 VDC.
Electrical Connections: Screw terminal.
Conduit Connection: 7/8" hole for 1/2" conduit hub (2 places).
Process Connection: 1/4" female NPT (CX-4: 4 places).
Mounting Orientation: Switch can be installed in any position.
Setpoint Adjustment: Internal screws.
Weight: CX-1: 0.78 lb (0.35 kg); CX-4: 1.03 lb (0.47 kg).
Deadband: See Ordering page.
Agency Approval: CE.
