CWV2 | Veris CW2 Series Value Air Quality Sensor, Wall, CO2, Analog Output | Veris Industries

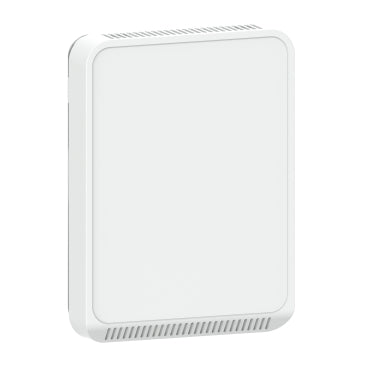

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CWV2
Documents and manuals
Veris Industries CWV2 Documents
Overview
Details for CWV2
NCO-CWV2 CO2 Wall Sensor by Veris Industries
The NCO-CWV2 from Veris Industries is a highly accurate and reliable CO2 wall sensor designed for industrial and commercial applications. It measures CO2 levels from 0 to 2000 PPM with a resolution of 1 PPM, providing precise real-time monitoring of air quality.
Constructed with a durable housing, the NCO-CWV2 withstands harsh environments and ensures a long service life. Its non-dispersive infrared (NDIR) sensor technology delivers stable and consistent readings, making it ideal for monitoring air quality in warehouses, factories, hospitals, and other indoor spaces.
The sensor features a user-friendly digital display that shows current CO2 levels and includes visual and audible alarms to alert users when CO2 levels exceed preset thresholds. It also has a built-in relay output for integration with external ventilation systems or other control devices.
Shop our HVAC supply store today for the best prices and fast shipping on the NCO-CWV2 CO2 Wall Sensor by Veris Industries! The Veris CWV2 Value sensor of air quality for living space are for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a CO² element. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Device Application
- HVAC, Temperature control, Fan speed controller
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display Type
- Without Display
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- NDIR (non-dispersive infrared)
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With CO2 sensor
- Repeat accuracy
- +/- 30 ppm
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- GTIN
- 3606481902078
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.94 in (2.4 cm)
- Package 1 Width
- 3.35 in (8.5 cm)
- Package 1 Length
- 4.53 in (11.5 cm)
- Package 1 Weight
- 4.59 oz (130 g)
