CW2XP2A | Veris CW2 Protocol Series Air Quality Sensor, CO2, Wall, Replaceable Humidity 2%, Temperature Transmitter, BACnet MSTP/Modbus | Veris Industries

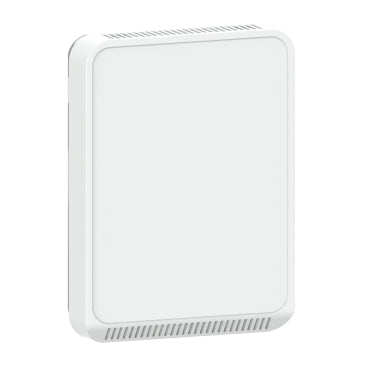

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CW2XP2A
Documents and manuals
Veris Industries CW2XP2A Documents
Overview
Details for CW2XP2A
CW2XP2A CO2, Temperature, and Humidity Sensor: A Comprehensive Solution for Environmental Monitoring
The Veris Industries CW2XP2A sensor is an advanced environmental monitoring device designed for industrial applications. It seamlessly integrates with BACnet and Modbus protocols, enabling effortless integration into existing control systems and easy data retrieval.
Featuring cutting-edge technology, the CW2XP2A provides real-time and highly accurate measurements of temperature, carbon dioxide (CO2), and relative humidity levels. Its compact design and intuitive user interface make it suitable for various indoor environments, including offices, warehouses, and manufacturing facilities.
The sensor's rugged construction ensures reliable operation even in harsh conditions. Its robust housing protects sensitive components from dust, moisture, and vibrations. Furthermore, its self-calibrating capabilities ensure consistent and dependable readings throughout its service life.
With its comprehensive monitoring capabilities, the Veris Industries CW2XP2A CO2, Temperature, and Humidity Sensor empowers businesses to maintain optimal indoor environmental conditions, ensuring the well-being of occupants, improving productivity, and reducing energy consumption.
Order the CW2XP2A today from our HVAC supply store and experience the benefits of precise and reliable environmental monitoring. With our competitive prices and fast shipping, we're your trusted partner for all your industrial supply needs. The Veris CW2 Protocol Series of air quality sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature, humidity and CO² elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Carbon Dioxide (CO2), Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- communication port protocol
- BACnet, Modbus
- Display Type
- Without Display
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- Transmitter, NDIR (non-dispersive infrared), Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With CO2 sensor, With humidity sensor
- Hysteresis
- 1.5 %
- Repeat accuracy
- +/- 20 ppm
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481901965
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.77 in (4.496 cm)
- Package 1 Width
- 3.58 in (9.093 cm)
- Package 1 Length
- 4.92 in (12.497 cm)
- Package 1 Weight
- 6.40 oz (181.437 g)
