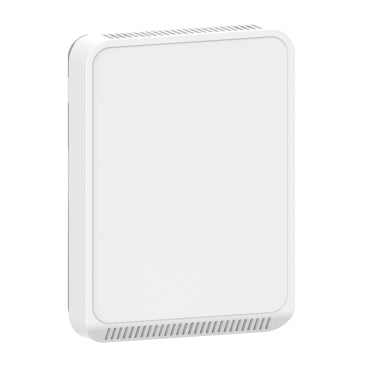

CW2XA2H | Veris CW2 Series Air Quality Sensor, CO2, Wall, Replaceable Humidity 2%, Temperature, 10K Type 3 Thermistor | Veris Industries
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CW2XA2H
Documents and manuals
Veris Industries CW2XA2H Documents
Overview
Details for CW2XA2H
Wall Air Quality Sensor 2%ACC
Veris Industries' Wall Air Quality Sensor is a precise instrument designed to monitor indoor air quality in industrial environments. This sensor measures and displays air quality data with an accuracy of 2%, ensuring reliable and actionable insights.
Features:
* Real-time monitoring of air quality parameters
* Built-in algorithms for advanced data analysis
* Intuitive LED display for easy readability
* Compact and durable design for industrial applications
* 2% accuracy for reliable measurements
Benefits:
* Optimize indoor air quality for employee health and productivity
* Detect potential hazards such as harmful gases and particulates
* Comply with industry regulations and standards
* Reduce downtime and maintenance costs by identifying air quality issues early
* Improve overall indoor environment and well-being
Specifications:
* Accuracy: 2%
* Parameters measured: CO2, VOCs, PM2.5
* Output interface: Digital (RS-485)
* Power supply: 12-24 VDC
Applications:
* Industrial workplaces
* Warehouses and distribution centers
* Hospitals and healthcare facilities
* Offices and commercial buildings
Shop now at our HVAC supply store for the best prices and fast shipping on Veris Industries' Wall Air Quality Sensor! The Veris CW2 Series of air quality sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a 10K Type 3 Thermistor, humidity and CO² elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Carbon Dioxide (CO2), Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display Type
- Without Display
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Calibration Certificate
- Humidity: replaceable RH element available in 1% & 2% with NIST
- Color
- White
- Sensor Type
- 10 kOhm T3 thermistor, NDIR (non-dispersive infrared), Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With CO2 sensor, With humidity sensor
- Hysteresis
- 1.5 %
- Repeat accuracy
- +/- 20 ppm
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481901903
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
