CW2XA2D | Veris CW2 Series Air Quality Sensor, CO2, Wall, Replaceable Humidity 2%, Temperature, 10K Type 2 Thermistor | Veris Industries

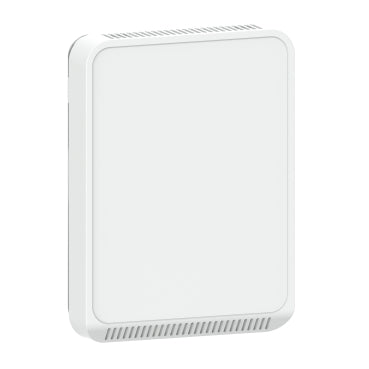

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CW2XA2D
Documents and manuals
Veris Industries CW2XA2D Documents
Overview
Details for CW2XA2D
CW2XA2D Wall Air Quality Sensor by Veris Industries
The CW2XA2D Wall Air Quality Sensor is an essential device for industrial engineers and maintenance professionals seeking to monitor and ensure optimal indoor air quality in critical environments. This sensor provides accurate and reliable readings of harmful gases, particles, and other contaminants, enabling proactive measures to safeguard the health and safety of personnel.
With advanced semiconductor technology, the CW2XA2D sensor detects a wide range of air pollutants, including carbon monoxide, nitrogen dioxide, ozone, ammonia, hydrogen sulfide, and volatile organic compounds (VOCs). Its high sensitivity and fast response time ensure timely alerts when air quality levels exceed safe limits.
The sensor's durable construction and rugged design make it suitable for demanding industrial settings. It features a compact and wall-mounted design for easy installation and efficient use of space. The clear and intuitive display provides real-time readings, allowing for quick and informed decision-making.
For unparalleled reliability and performance, trust the CW2XA2D Wall Air Quality Sensor from Veris Industries. Its proven technology and industry-leading expertise make it the ideal choice for maintaining optimal air quality in your critical facilities.
Shop our HVAC supply store today for the best prices and fast shipping on all your industrial equipment needs! The Veris CW2 Series of air quality sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a 10K Type 2 Thermistor, humidity and CO² elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Carbon Dioxide (CO2), Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display Type
- Without Display
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Calibration Certificate
- Humidity: replaceable RH element available in 1% & 2% with NIST
- Color
- White
- Sensor Type
- 10 kOhm T2 thermistor, NDIR (non-dispersive infrared), Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With CO2 sensor, With humidity sensor
- Hysteresis
- 1.5 %
- Repeat accuracy
- +/- 20 ppm
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481901897
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
