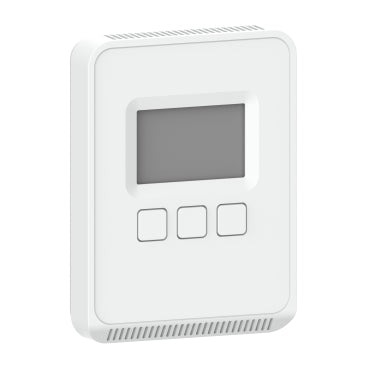

CW2LAXH | Veris CW2 Series Air Quality Sensor, Wall, CO2, Segmented LCD, Temperature, 10K Type 3 Thermistor | Veris Industries
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CW2LAXH
Documents and manuals
Veris Industries CW2LAXH Documents
Overview
Details for CW2LAXH
CO2 & Temperature Sensor with 10K Wall Mount LCD Display: The CW2LAXH from Veris Industries
The CW2LAXH CO2 & Temperature Sensor from Veris Industries provides accurate and reliable monitoring of carbon dioxide (CO2) levels and temperature. It features a wall-mounted LCD display for easy visibility and continuous readings.
Key Features:
- Monitors CO2 levels and temperature simultaneously
- Wall-mounted LCD display for clear readings
- 10K thermistor for precise temperature measurement
- Ideal for monitoring indoor air quality and environmental conditions
- Applications in industrial settings, commercial buildings, and residential spaces
The CW2LAXH is an essential tool for maintaining optimal air quality and ensuring the well-being of occupants in various environments. Its precise monitoring capabilities make it an invaluable asset for industrial engineers and maintenance professionals. Our HVAC supply store offers the CW2LAXH at competitive prices with fast shipping. The Veris CW2 Series of air quality sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a 10K Type 3 Thermistor and CO² elements. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Carbon Dioxide (CO2), Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display size
- 2 inch
- Display Type
- LCD display
- Information Displayed
- Temperature, Temperature set point, Menu-driven user interface, CO2
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- 10 kOhm T3 thermistor, NDIR (non-dispersive infrared)
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- control type
- button, button, button
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With CO2 sensor
- Repeat accuracy
- +/- 20 ppm
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481901583
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
