CW2LA2A | Veris CW2 Series Air Quality Sensor, Wall, CO2, Segmented LCD, Replaceable Humidity 2%, Temperature Transmitter | Veris Industries
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CW2LA2A
Documents and manuals
Veris Industries CW2LA2A Documents
Overview
Details for CW2LA2A

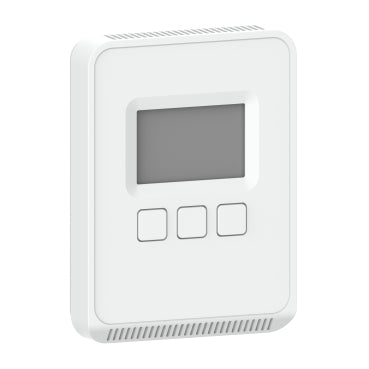

The Veris Industries CW2LA2A is a wall-mounted air sensor that measures temperature, humidity, and carbon dioxide levels. It is designed for use in industrial and commercial environments, such as warehouses, factories, and offices.


The CW2LA2A features a large, easy-to-read display that shows the current temperature, humidity, and CO2 levels. The display is backlit for easy visibility in low-light conditions. The sensor also has a built-in alarm that will sound if the CO2 level exceeds a preset limit.


The CW2LA2A is powered by a standard 110V outlet. It is easy to install and can be mounted on any wall or ceiling. The sensor is also wireless, so it can be placed anywhere within range of the receiver.


The CW2LA2A is a valuable tool for monitoring air quality in industrial and commercial environments. It can help to prevent health problems caused by exposure to high levels of CO2.
We offer the best prices and fast shipping for your products! The Veris CW2 Series of air quality sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature, humidity and CO² elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Carbon Dioxide (CO2), Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display size
- 2 inch
- Display Type
- LCD display
- Information Displayed
- Temperature, Temperature set point, Menu-driven user interface, Relative humidity, CO2
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- Transmitter, NDIR (non-dispersive infrared), Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- control type
- button, button, button
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With CO2 sensor, With humidity sensor
- Hysteresis
- 1.5 %
- Repeat accuracy
- +/- 20 ppm
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481901460
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
