CTE-5202 Electronic Thermostat from KMC Controls The CTE-5202 Electronic Thermostat from KMC Controls is a highly precise and reliable temperature control device designed for industrial and commercial applications. This 24VDC thermostat features a wide temperature range of 0-12 VDC, offering exceptional control over temperature within critical environments. Its compact size and rugged construction make the CTE-5202 suitable for various installations, including HVAC systems, industrial machinery, and process control systems. The thermostat utilizes advanced electronic technology to ensure accurate temperature regulation and maintain a consistent and stable environment. With its simple and intuitive user interface, the CTE-5202 allows for precise adjustments and easy monitoring of temperature parameters. Its durable design and reliable performance make it an ideal solution for maintaining optimal temperature conditions in critical environments. Technical Specifications: * Temperature Range: 0-12 VDC * Power Supply: 24 VDC * Control Type: Electronic * Dimensions: Compact and space-saving For the best prices and fast shipping on all your industrial supply needs, choose our HVAC supply store.

The KMC CTE-5202 thermostat is a dual-setpoint, analog electronic controller with a digital LCD display for use in many new and replacement room temperature control applications. It provides two independent electronic PI (Proportional + Integral) control loops with heating and cooling setpoints. The thermostat drives two (adjustable span) 0–12 VDC analog outputs for control of external devices. The easy to understand LCD display and push buttons enable viewing of current temperature, changing of setpoints, and simple device configuration.

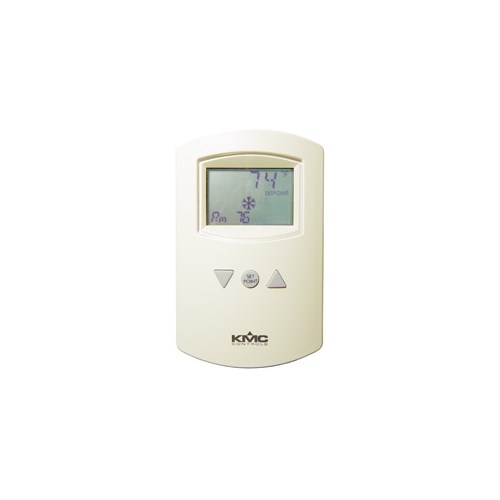

NOTE: The CTE-5202 display in the photograph shows adjustment of the Cooling setpoint; during normal operation, only room temperature is shown in the upper right of the screen.

Applications

The thermostat is typically used with the KMC CEP/CSP-4000 and CSP-5000 series of electronic pressure-independent VAV controllers, MEP-4002 proportional electronic actuators in pressure-dependent VAV applications, and VEB-43/46 series proportional control valves in baseboard and other heating/cooling applications. Common application features for morning warm-up, changeover, and unoccupied/night setback are enabled via an external temperature sensor and/or contact closure provided by a remote building automation system. Application sequences may be selected for the following types of room and terminal unit control:

• Single-duct pressure-dependent VAV terminals with or without reheat
• Single-duct pressure-independent VAV terminals, with or without reheat and auxiliary minimum airflow
• Single-duct fan-powered VAV terminals with or without reheat using REE-5xxx staging modules
• Dual-duct VAV applications with independent control of heating and cooling outputs
• Proportional heating and cooling applications, such as baseboard heating and chilled beams

Replacements

To enable a smooth transition from older thermostats as well as success in new applications, the applications guide has extensive cross-references and many examples of retrofit and new installations. The CTE-5202 functionally replaces the following thermostats (usually with a more contemporary look that has advanced features):

• KMC, Dynacon, and Nailor CTE-1x0x, CTE-50xx, CTE-51xx
• Anemostat (East/West) 13-27, 13-28, 13-29, 13-33, 13-34, 13-35, 004100, 004643
• Barber Colman TP-8101, TP-8102, TP-8103, TP-8124, TP-8125
• Carnes 999-2662, 999-2663, 999-2664
• Metal Industries 01EC-2146, 01EC-2129, 01EC-9229, 01EC-2119, 01EC-2122, 01EC-2120
• Metalaire THM1004, THM1005, THM1101, THM1103, THM1105
• Nailor B3-3001-015, B3-015, B3-3001-191, B3-191, B3-3001-186, B3-186, H1-981
• Price Industries 019814-001, 019810-001, 019726-001, 019816-001, 019822-001
• ASC / Titus 10027401, 10027403, 10027415,10027411, 10027413, 10269601, 10269606, 10269607, 10269608, 10269603, 10269604, 10269609, 10269610
• Honeywell TB7980 (check application and specifications)
• Johnson Controls (various, check application and specifications)
• Kele RTC-2P (with one or less remote inputs, check application and specifications)
• PEKO (various, check application and specifications)
• Siemens (various, check application and specifications)
• Viconics (various, check application and specifications)
