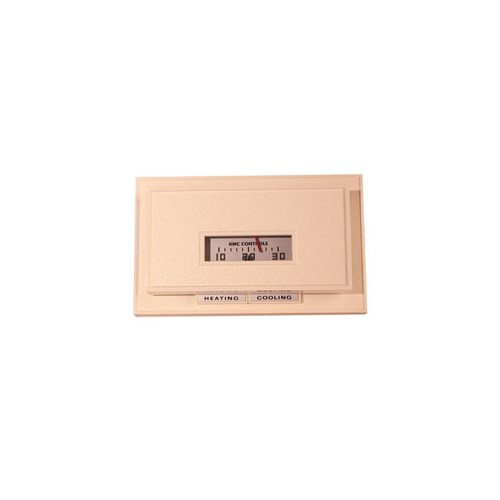

CTE-1004-10 | Tstat: Single, DA with Reheat, Horiz F | KMC Controls

KMC Controls CTE-1004-10 RA/Reheat;DA/Clng Horz Tstat The KMC Controls CTE-1004-10 is a horizontal thermostat designed for controlling reheat and cooling in commercial and industrial applications. It features a rugged construction and precise temperature control, making it an ideal choice for demanding environments. Key Features: * RA/Reheat;DA/Clng operation * Horizontal mounting * Accurate temperature control * Durable construction Applications: The CTE-1004-10 is suitable for a wide range of applications, including: * Commercial buildings * Industrial facilities * Hospitals * Schools Technical Specifications: * Temperature Range: 50 to 90°F (10 to 32°C) * Accuracy: ±1°F (0.5°C) * Dimensions: 4.5" x 2.5" x 1.5" (11.4 cm x 6.4 cm x 3.8 cm) Shop our HVAC supply store for the Best Prices and Fast Shipping

NOTE: The CTE-5202 replaces the CTE-100x/110x series.

The CTE-1004 electronic thermostats are designed to be used with specific CEE/CEP/CSE/CSP-4000 series controller-actuators for controlling damper actuators and/or valves in HVAC systems. The ability to adjust minimum and maximum limits is at the thermostat, rather than at the controller. An auxiliary flow, constant volume setpoint may be initiated manually or automatically for desired air flow across a reheat coil. It is a dual setpoint unit for cooling with reheat applications. Several mounting methods are available.

An additional output is provided for control of optional KMC REE-4000 series relay modules. This 0–6 VDC output (T3) is not restricted by the minimum and maximum control points.

Cover construction allows for the setpoint indicator and thermometer to be either visible or concealed. Optional accessories include an insert for concealing the window and stops to lock/restrict setpoint adjustments.

An optional XEE-4002 9.1 VDC power supply module can power the thermostat. Then the thermostat can be used (without the controller-actuator) to control a damper or valve operated by an MEP series actuator or to control other devices via optional REE-4000 series relays.
