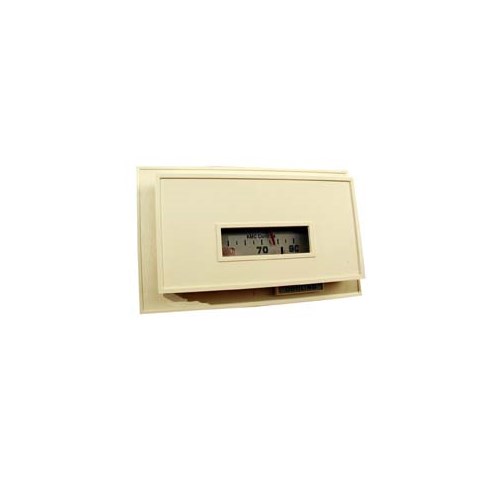

CTE-1001-10 | Tstat: Single, DA, Horiz F | KMC Controls

DA CoolStat 55-85F HORIZ The DA CoolStat 55-85F HORIZ is a temperature controller designed to maintain a stable temperature range between 55°F and 85°F. It features a horizontal design for easy mounting and a compact size for space-saving installation. With its precise temperature control, the DA CoolStat 55-85F HORIZ is ideal for applications where consistent temperature is crucial, ensuring optimal performance and efficiency. Key Features: - Temperature Range: 55°F to 85°F - Compact and Horizontal Design - Reliable and Precise Temperature Control - User-Friendly Interface for Easy Operation Benefits: - Maintains Consistent Temperature for Optimal Performance - Space-Saving Design for Compact Installations - Easy to Install and Configure - Durable Construction for Long-Lasting Operation Applications: - Industrial Environments - Laboratories - Manufacturing Facilities - Healthcare Facilities Shop our HVAC supply store for the best prices and fast shipping on all your industrial supply needs.

NOTE: The CTE-5202 replaces the CTE-100x/110x series.

The KMC CTE-1001/1002 electronic thermostats are designed for use with specific CEP/CSP-4000 series controller-actuators for controlling damper actuators and/or valves in HVAC systems. The ability to adjust minimum and maximum limits is at the thermostat rather than at the controller. They are single setpoint units for cooling and heating applications. Available model options include DA heating or RA cooling, vertical or horizontal mounting, and °F or °C scale.

An additional output is provided for control of optional KMC REE-4000 series relay modules. This 0–6 VDC output (T3) is not restricted by the minimum and maximum control points.

Cover construction allows for the setpoint indicator and thermometer to be either visible or concealed. Optional accessories include a blanking insert for concealing the window, and stops to lock/restrict the setpoint adjustment.

CTE-1001/1002 room thermostats are intended for use with CEE/CEP/CSE/CSP-4000 Series controller/actuators.

An optional XEE-4002 9.1 VDC power supply module can power the CTE-1001/1002 thermostat. Then the CTE-1001/1002 can be used (without the controller-actuator) to control a damper or valve operated by an MEP series actuator or to control other devices via optional REE-4000 series relays.

For similar thermostats with temperature averaging capability and a different relationship between T1 and T3, see the CTE-1101.
