CSP-4702 | ACTUATOR; Analog VAV Differential Pressure Controller / Actuator | KMC Controls

DIF PRESS VAV CNTRLR, 16VDC OUT The KMC Controls CSP-4702 is a highly advanced differential pressure VAV controller, expertly engineered to optimize airflow and maintain precise pressure control in HVAC systems. The controller operates on a 16VDC power supply. Key Features and Benefits: - Accurate and responsive differential pressure sensing - Intelligent control algorithms for optimal airflow balancing - Modulating output for precise pressure regulation - Compatible with a wide range of VAV systems - Easy installation and setup Applications: The CSP-4702 differential pressure controller is ideal for use in commercial, industrial, and institutional buildings where precise airflow control is crucial, such as: - Variable air volume (VAV) systems - HVAC systems with varying load conditions - Hospitals and laboratories requiring controlled air environments Technical Specifications: - SKU: CSP-4702 - Brand: KMC Controls - Input: 16VDC - Output: Modulating - Response Time: < 1 second Why Choose our HVAC supply store? our HVAC supply store is your trusted source for all your industrial and maintenance needs. We offer the most competitive prices and unbeatable shipping times. Contact us today to order your KMC Controls CSP-4702 DIF PRESS VAV CNTRLR!

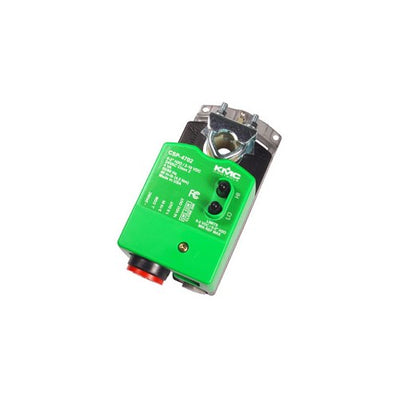

The compact analog electronic CSP-4702 is a combination controller and actuator designed primarily for use on pressure-independent VAV (Variable Air Volume) terminal units. It also has applications as an electronic static pressure controller. (For sample applications, see the application guides.)

Differential air pressure is sensed by an internal digital CMOS sensor connected via 1/4″ FR tubing to an SSS-1000 series airflow sensor. The 0 to 2″ wc (0 to 500 Pa) differential pressure sensor is internally linearized and temperature compensated for high accuracy down to very low pressures.

The CSP-4702 offers full-range flow control of VAV terminal units when used with the CTE-5202 electronic room thermostat. Air flow control limits may be set at the thermostat or internal to the CSP-4702. An adjustable mechanical stop is also included.

The CSP-4702 accepts a 2 to 10 VDC control signal from the thermostat. “Anti-jitter” circuitry significantly reduces hunting and needless wear on the actuator and damper components (from unnecessary miniscule position changes caused by undamped analog input signals). It also provides a 16 VDC output supply to power the thermostat and a 1 to 5 VDC voltage output that is proportional to the sensed differential pressure.

The CSP-4702 mounts directly to 1/4- to 5/8-inch (6 to 16 mm) round shafts or 1/4- to 7/16-inch (6 to 11 mm) square shafts, eliminating the need for expensive and complicated linkages. A non-rotation bracket, to prevent lateral movement, is included. For troubleshooting and setup, internal status LEDs (under the cover) indicate green for opening and red for closing. Factory-set clockwise rotation-to-close can be reversed by changing a jumper position. A gear disengagement button allows easy manual positioning of the actuator.

NOTE: Air flow volume is determined from the differential pressure by the formula Volume (in “cfm”) = the K factor of the VAV box multiplied by the square root of the differential pressure (in “wc”). The K factor should be in the information supplied by the manufacturer of the VAV box.
