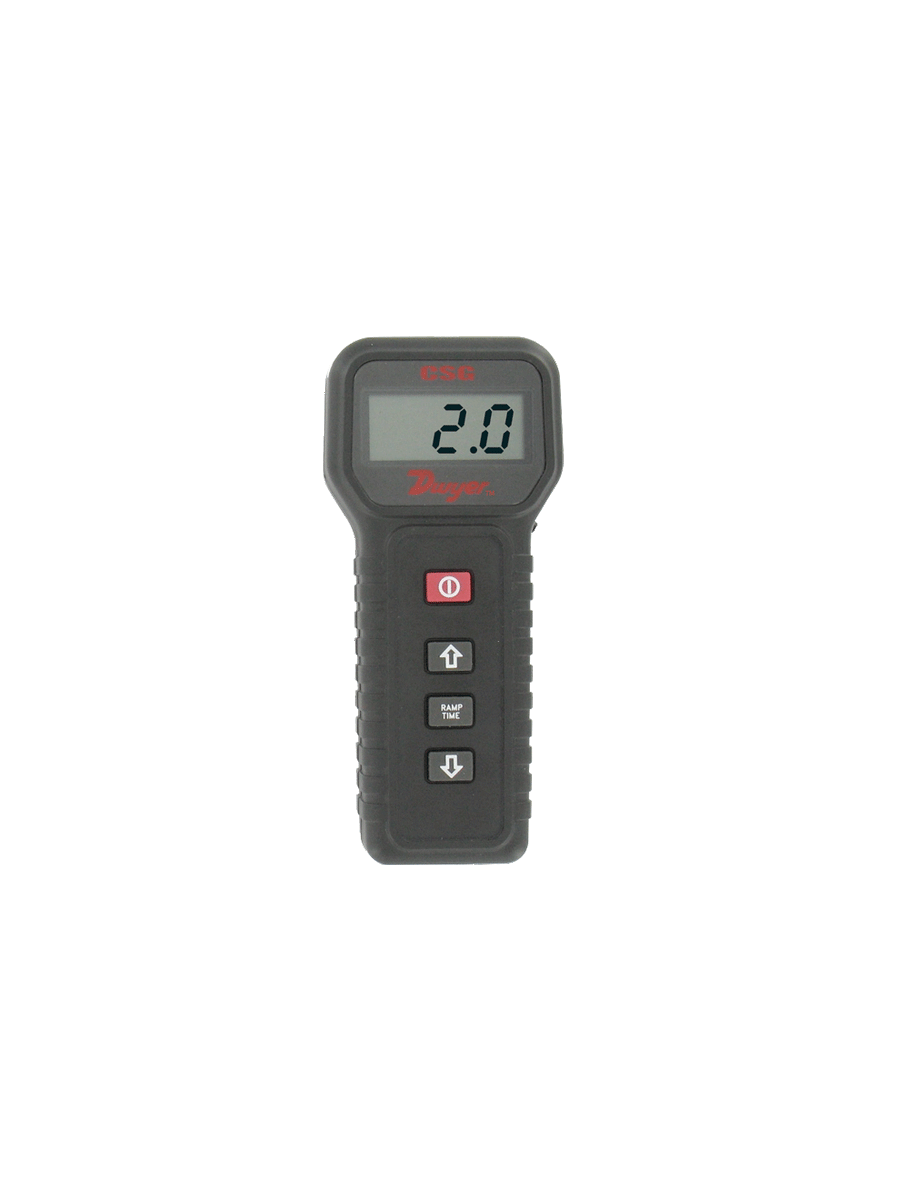

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CSG

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments CSG Documents

CSG Model CSG Catalog Page More Info

Overview

Details for CSG

NCO-CSG-DWYER-INSTRUMENTS Current/Volt Signal Generator Dwyer Instruments' NCO-CSG is a versatile signal generator that generates both current and voltage signals. It's perfect for testing and calibrating process control instruments and control loops. The NCO-CSG has six different ranges of current (0-20mA, 4-20mA, 0-10mA, 4-10mA, 0-5mA, and 0-1mA) and six different ranges of voltage (0-10V, 0-5V, 0-1V, 0-500mV, 0-250mV, and 0-100mV). The output signal is adjustable from 0 to 100% of range. The NCO-CSG is easy to use, with a single push-button operation. The output signal is displayed on a large LCD display. The generator is also battery-powered, so it can be used anywhere. Key Features: * Generates both current and voltage signals * Six different ranges of current and voltage * Output signal adjustable from 0 to 100% of range * Easy-to-use, single push-button operation * Large LCD display * Battery-powered for portable use Applications: * Testing and calibrating process control instruments * Calibrating control loops * Simulating sensors * Troubleshooting electrical systems Shop our HVAC supply store Today! our HVAC supply store offers the best prices and fast shipping on the NCO-CSG-DWYER-INSTRUMENTS Current/Volt Signal Generator. Order yours today!

MODEL CSG CURRENT/VOLTAGE SIGNAL GENERATOR

Ramp Function, Large Numeric LCD Display

The pocket size CSG Current and Voltage Signal Generator is an ideal tool for troubleshooting transmitters, transducers, motors, and actuators. The unit generates a 0 to 10 VDC signal in increments of 1 volt or a 0 to 20 mA signal in increments of 1 mA. The Model CSG features a large LCD display with a blue backlight for use in dimly lit areas. The Model CSG continuously ramps the output using user selected minimum, maximum, and ramp interval timing parameters. Units are furnished with a battery, 120 VAC plug-in power supply, test leads with alligator clips, carrying case, and instruction manual.

Large Backlit Display
Timed Ramp Function
Auto Power Off
Process Display Configuration
Transmitter Calibration

Specifications

Power Requirements: 9 V alkaline battery; included; user replaceable or 120 VAC (provided).
Auto Power Off: 1 to 20 min.
Electrical Connections: 6 ft (1.8 m) with alligator clips.
Weight: 6 oz (170 g).
