Details for CS-1

Dwyer Instruments CS-1 Pressure Switch The Dwyer Instruments CS-1 is a highly accurate and reliable pressure switch designed for various industrial applications. It features a wide measuring range of 1-30"HgVac, making it suitable for monitoring vacuum and low-pressure systems. Constructed with durable materials, the CS-1 ensures longevity. Its SPDT (Single Pole Double Throw) snap action switch provides reliable switching and is rated for up to 30# maximum load. This pressure switch offers versatile mounting options, allowing for easy integration into your system. It is ideal for applications requiring precise pressure monitoring and control, such as HVAC systems, compressors, and process industries. Features: * Measuring range: 1-30"HgVac * SPDT snap action switch * Maximum load: 30# * Durable construction * Versatile mounting options Applications: * HVAC systems * Compressors * Process industries * Vacuum monitoring * Low-pressure control Our HVAC supply store offers the CS-1 pressure switch at competitive prices with fast shipping. We are committed to providing top-quality products and exceptional customer service. Contact us today for more information or to place an order!

SERIES CS & CD DIAPHRAGM PRESSURE SWITCH

Visible Set Points, Fixed or Adjustable Deadband

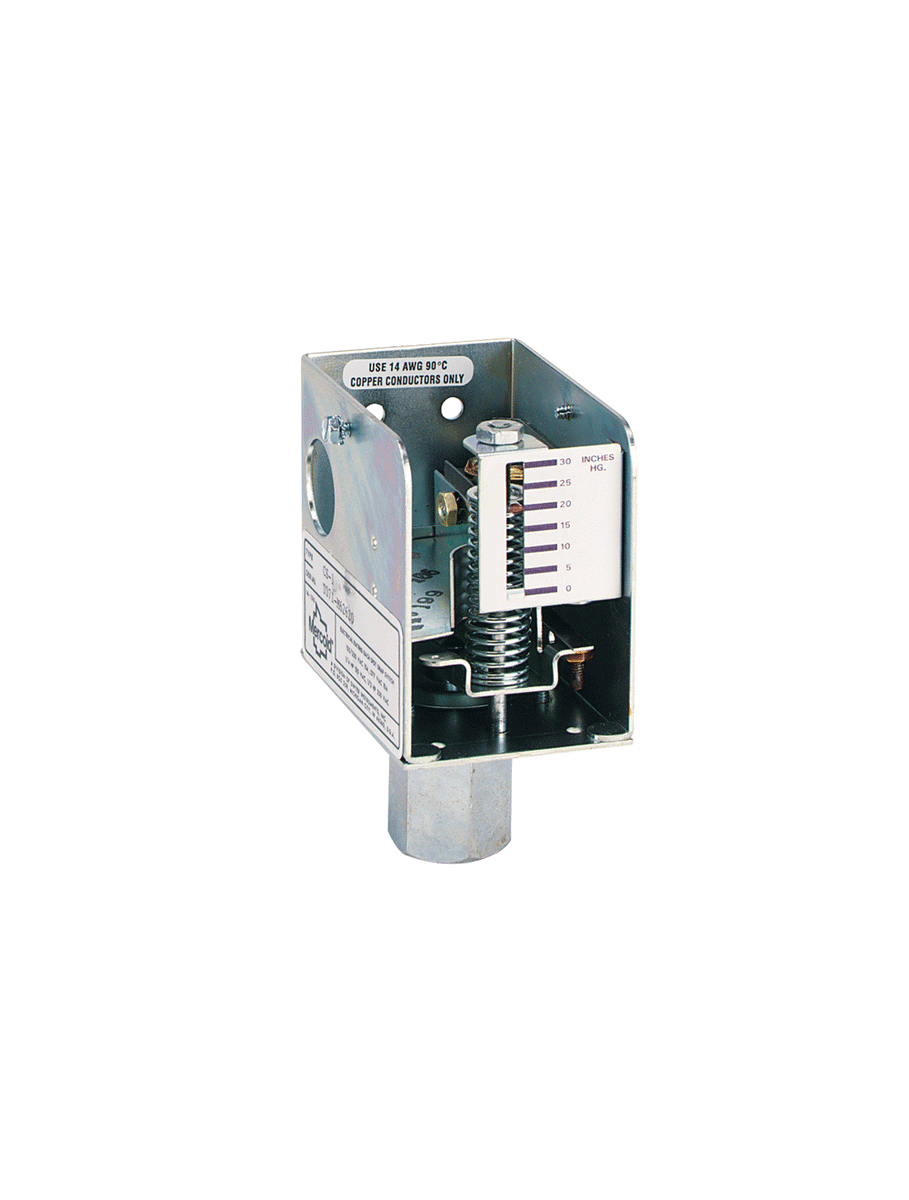

Series CS & CD Diaphragm Pressure Switches combine advanced design and precision construction in a small size. Unit is ideal for instrument panels, small compressors and general industrial applications. Visible set point and easy to wire SPDT snap switch reduce installation time. Operates in any position and is vibration resistant.

Specifications

Series: CS & CD DIAPHRAGM PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: CS & CD DIAPHRAGM PRESSURE SWITCH
Wetted Materials: Nylon reinforced Buna-N and steel.
Temperature Limits: -30 to 150°F (-35 to 66°C).
Pressure Limit: 30 psig (2.1 bar) for ranges 1; 3; and 10. 50 psig (3.5 bar) for range 30. 175 psig (12.1 bar) for range 150.
Enclosure Rating: General purpose.
Switch Type: SPDT snap switch.
Electrical Rating: 15 A @ 120 VAC; 8 A @ 240 VAC.
Electrical Connections: Screw terminal.
Conduit Connection: 1/2" hole for conduit hub.
Process Connection: 1/4" female NPT.
Mounting Orientation: Any position.
Set Point Adjustment: Internal screw.
Weight: .5 lb (0.23 kg).
Deadband: See Ordering page.
