CFS2-OGDSN-20 | SJOW 3X16 cable | SPST | NO | 1 HP 125V~ 16FLA 2 HP 250V~12FLA | 20 ft (6.10 m) cable | Dwyer Instruments

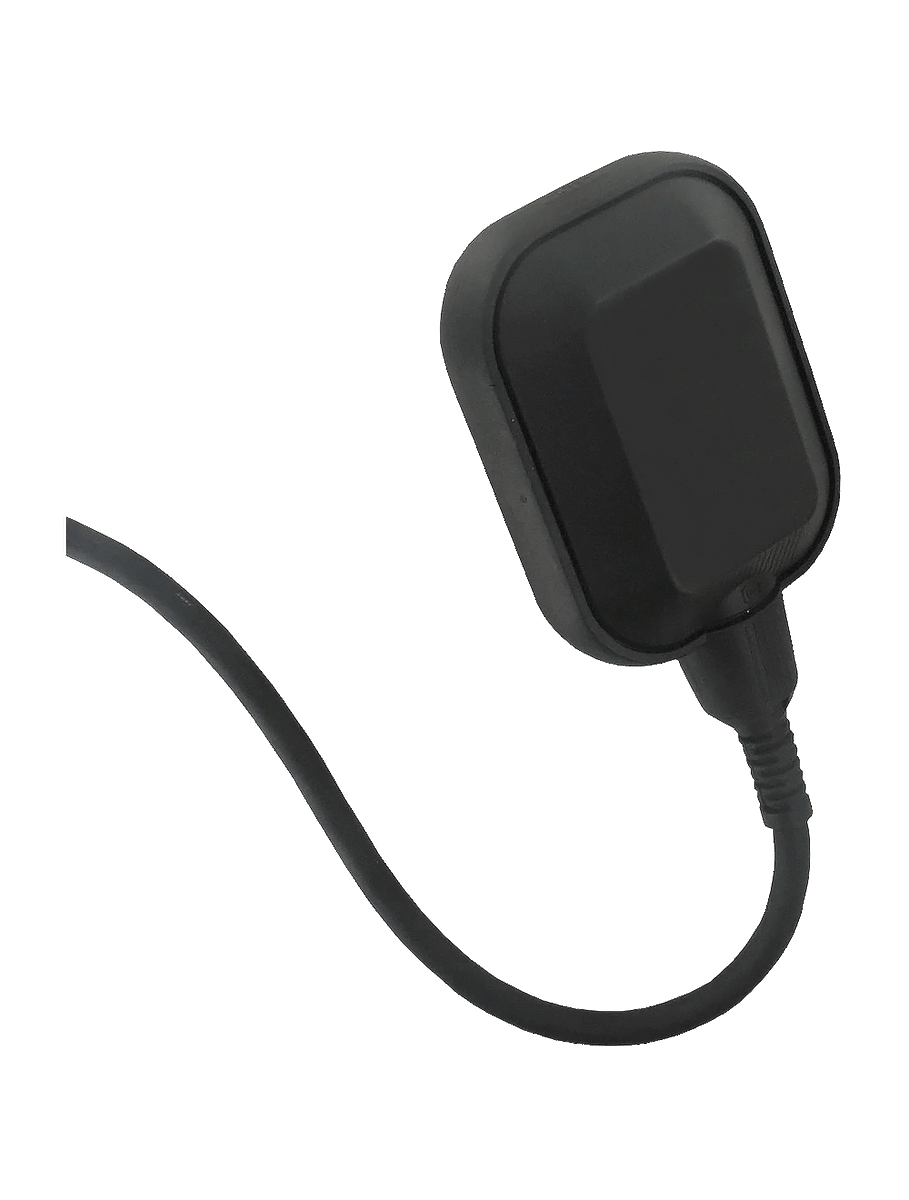

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CFS2-OGDSN-20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments CFS2-OGDSN-20 Documents

Instruction Manual Series CFS2 Catalog Page More Info

Overview

Details for CFS2-OGDSN-20

Reliable and Durable: CFS2-OGDSN-20 Cable by Dwyer InstrumentsThe CFS2-OGDSN-20 cable from Dwyer Instruments is a high-quality, 3-conductor cable designed for demanding industrial applications. This 20-foot cable features a durable construction for extended longevity and reliable performance. Its 16 AWG conductors provide efficient signal transmission, making it suitable for various industrial sensing and monitoring applications. Versatile Applications: Designed for Industrial EnvironmentsThe CFS2-OGDSN-20 cable is designed to withstand harsh industrial environments. Its rugged construction ensures reliable performance in challenging conditions, making it an ideal choice for connecting sensors, transmitters, and other devices in factories, warehouses, and other industrial facilities. Easy Installation and Maintenance:The CFS2-OGDSN-20 cable is designed for ease of installation and maintenance. Its flexible construction allows for easy routing and positioning, even in tight spaces. Color-coded conductors simplify wiring and troubleshooting, reducing installation time and effort. Shop at our HVAC supply store for Industrial Solutions: our HVAC supply store offers a wide selection of industrial products at competitive prices. We specialize in providing high-quality cables, sensors, and other components for industrial applications. With our fast shipping and exceptional customer service, you can count on us for reliable delivery and support. Choose our HVAC supply store for all your industrial supply needs and experience the difference in quality, convenience, and affordability.

SERIES CFS2 CABLE FLOAT SWITCH

Mercury-Free, UL/CSA Approval Options

The Series CFS2 Cable Float Switches is a mechanically actuated floating switchintended to activate electrical components, such as pumps, to start and stop automatically.The CFS2 is perfect for simple level control of liquids for filling or draining reservoirs andtanks. Float switches such as the CFS2 are the most universally used for pump automation,due to their high reliability, economical pricing, and easy installation. Counterweights andcable hangers are available to suit a variety of mounting applications. Optional cablesavailable include those with UL/CSA approval, higher chemical compatibility, hightemperature durability, oil resistance, and drinking water suitability. Contact factory forpiggyback plug option, gold contact switch option and cable length options ranging from 10to 70' (3.04 to 21.34 m).

Product Applications

Water level monitoring
Tank level control
High or low level alarm
Municipal water control
Industrial water control
Filling or draining reservoirs and tanks
Pump automation

High reliability with mercury-free, magnetic, mechanical internal design
Economical pricing with multiple option available for increased versatility
Easy installation with counterweights and cable hangers to suit a variety of mountingapplications

Specifications

Series: CFS2 CABLE FLOAT SWITCH
Category/Type: Level
Type: Level Switches
Series: CFS2 CABLE FLOAT SWITCH
Service: Compatible liquids.
Wetted Materials: Enclosure: Polypropylene; Cable: See model chart on catalog page.
Temperature Limits: 32 to 122°F (0 to 50°C).
Pressure Limits: 14.5 psi (1 bar).
Enclosure Rating: IP68.
Switch Type: See model chart on catalog page.
Electrical Rating: CFS2-XXBXX-XX10 (8) A @ 250 VAC.CFS2-XXDXX-XX1 HP @ 125 VAC 16 FLA;2 HP @ 250 VAC 12 FLA;
Shipping Weight: Enclosures: 5.43 oz (154 g);Cable: 0.77 oz (21.27 g) per ft.
Agency Approvals: CE; CSA; UL.
