CEP-4013 | Controller: VAV, 45 in-lbs, 100 deg, CW Close, SSE-2001 | KMC Controls

VAV Flow Controller, 100' Rotation CW: CEP-4013 The KMC Controls CEP-4013 VAV Flow Controller is an essential component for precise airflow management in HVAC systems. With its wide 100-degree rotation range in clockwise direction, this controller provides exceptional control over airflow in various applications. Designed specifically for VAV (Variable Air Volume) systems, the CEP-4013 enables precise regulation of airflow based on demand. Its accurate and responsive operation ensures optimal HVAC performance, maximizing comfort levels and energy efficiency. Constructed from durable materials, this flow controller withstands the rigors of industrial environments. Its robust design ensures longevity and reliability, even under heavy usage. The CEP-4013 is compatible with a wide range of HVAC systems, making it a versatile solution for various applications. If you seek a dependable and precise VAV Flow Controller, look no further than the KMC Controls CEP-4013. Our HVAC supply store offers the best prices and fast shipping, ensuring your HVAC systems operate at peak performance.

The analog electronic CEP-4000 series pressure-independent controller-actuators are designed primarily for use on variable air volume terminal units. Cooling and heating air flow is sensed by a temperature-compensated hot-wire anemometer. Velocity sensing is unaffected by changes in the duct air temperature.

The CEP-4000 series offers full-range flow control of VAV terminal units when used with the CTE-1000/1100/5000 series as well as the CTE-5202 room thermostats. Air-velocity flow control limits are set at the room thermostat or remotely with the REE-1012 remote-limits accessory module.

The actuator section provides a magnetic clutch that allows the actuator to be stalled at either end of stroke, eliminating the requirement for mechanical stops or end switches. The controller-actuator is available with 100° or 60° built-in stops.

The default rotation direction can easily be reversed by swapping the red and blue motor wires.

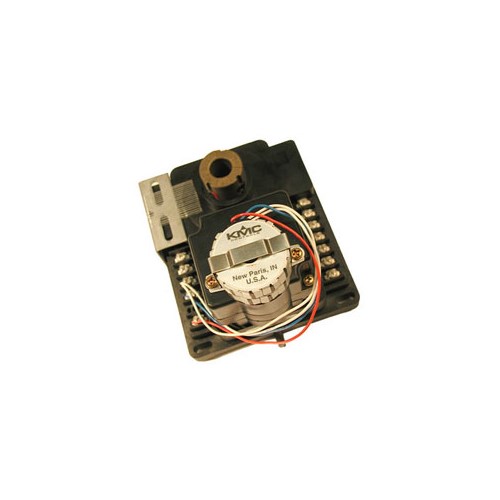

When replacing an older model, the CEP-4995 (100° rotation, CW to close, no sensor) is a “universal replacement” for most applications and will replace MOST CEP-1000/3000/4000 series controllers. (When replacing a CEP-1000 or CEP-3000 series controller, the REE-1000 series relay may also need to be replaced with the equivalent REE-4000 series module—see the CEP-4000 Applications Guide for more details.)

NOTE: CEP-4xxxC models with silicon conformal coatings have been discontinued.

NOTE: See also the CSP-4702.
