CDT-2D4F | Carbon Dioxide Transmitter | duct mount | 2000 ppm | CO2 transmitter with current/voltage CO2 outputs and 20K Ohm thermistor temperature output | Dwyer Instruments

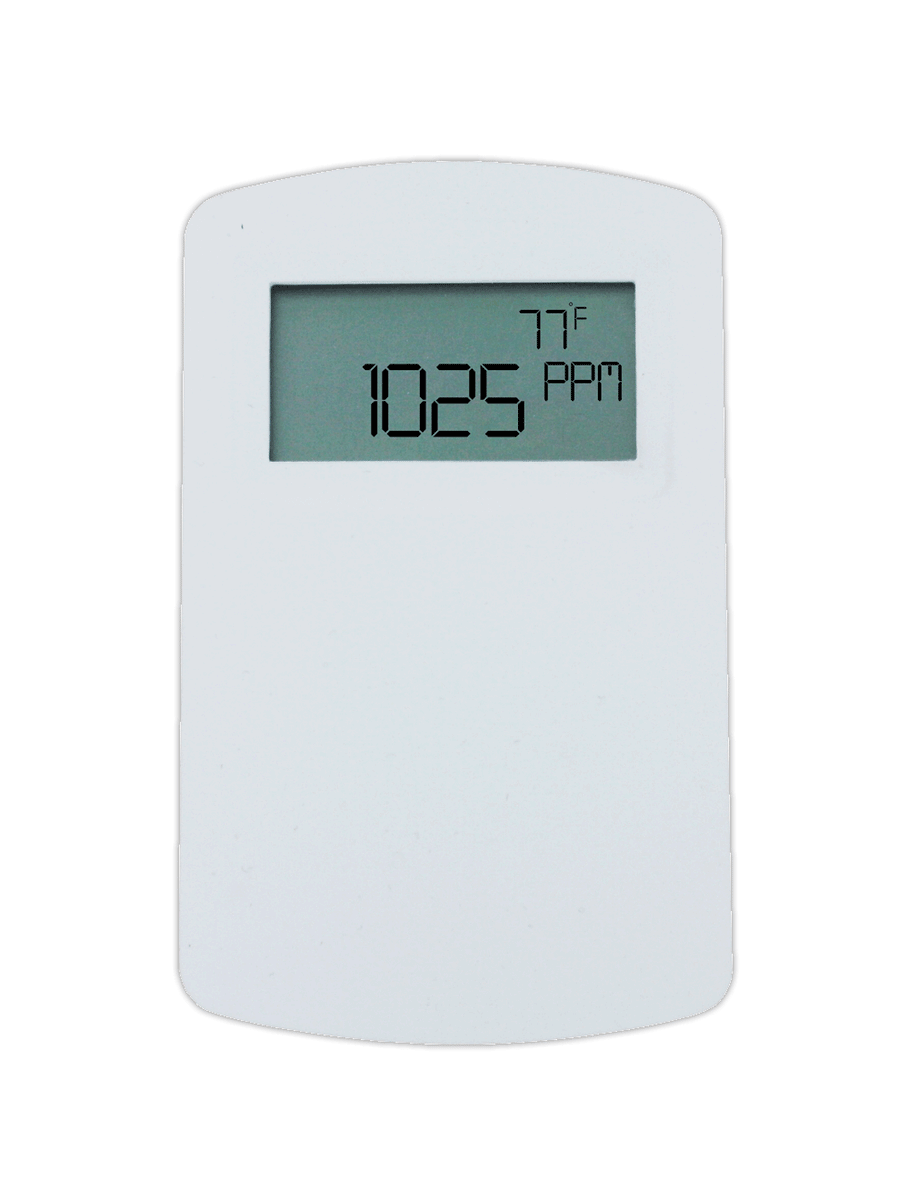

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CDT-2D4F

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments CDT-2D4F Documents

AQ-CDT Duct Mount Manual (Pre April 2022)AQ-CDT Duct Mount Manual (Post April 2022)AQ-CDT-N Wall Mount Manual (Pre April 2022)AQ-CDT-N Wall Mount Manual (Post April 2022)Series CDT Catalog Page CDT More Info

Overview

Details for CDT-2D4F

CDT-2D4F Duct Mount 2000PPM CO2 Transmitter by Dwyer InstrumentsThe CDT-2D4F Duct Mount 2000PPM CO2 Transmitter from Dwyer Instruments is meticulously designed to measure carbon dioxide levels in commercial, industrial, and HVAC applications. With its advanced NDIR (Non-Dispersive Infrared) sensing technology, this transmitter delivers precise and reliable CO2 readings, ensuring optimal indoor air quality. The CDT-2D4F boasts a compact and robust design, making it ideal for duct mounting. Its 4-20 mA output signal allows for easy integration with building automation systems, providing real-time monitoring and control of CO2 levels. Key Features: â€¢ NDIR technology for accurate CO2 measurement â€¢ Duct mountable for versatile placement â€¢ 4-20 mA output signal for seamless integration â€¢ Compact design for space-saving installation Benefits: â€¢ Ensures optimal indoor air quality by monitoring CO2 levels â€¢ Facilitates early detection and control of excessive CO2 levels â€¢ Enhances occupant comfort and productivity â€¢ Simplifies integration with building automation systems Applications: â€¢ Commercial buildings â€¢ Industrial facilities â€¢ HVAC systems â€¢ Greenhouses â€¢ Laboratories Shop now at our HVAC supply store for the best prices and fast shipping on the CDT-2D4F Duct Mount 2000PPM CO2 Transmitter by Dwyer Instruments.

SERIES CDT CARBON DIOXIDE/TEMPERATURE TRANSMITTER

NDIR CO2 Sensor, Universal Outputs, Optional Relay

The Series CDT Carbon Dioxide and Temperature Transmitters accurately monitorthe CO2 concentration and temperature in indoor environments to help achieve energysavings. In order to achieve a higher level of accuracy, the Series CDT includesbarometric pressure adjustment. The CO 2 universal output allows users to select thetransmitter output to be 4-20 mA, 0-5 VDC, or 0-10 VDC to work with virtually anybuilding management controller.
For applications that require visual indication, the wall mount configurations of theSeries CDT can be ordered with an integral LCD display. To prevent tampering, theaction of the buttons can be locked out using an internal dip switch selection.

*For buildings occupied 24 hours per day, it is recommended that calibration be verified every 6 to 12 months depending on application.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

Product Applications

Demand control ventilation in schools, office buildings, hospitals, and other indoorenvironments
LEED® certification

Minimize inventory and save time by combining CO 2 and temperaturemeasurements into one transmitter
Requires minimal maintenance with Automatic Baseline Correction (ABC) to accountfor sensor drif
Reduce operation costs using a low energy, reliable, and repeatable CO 2 sensor
Simplify installation with backplate electrical connection

Specifications

Series: CDT CARBON DIOXIDE/TEMPERATURE TRANSMITTER
Category/Type: Air Quality
Type: Carbon Dioxide Transmitters
Series: CDT CARBON DIOXIDE/TEMPERATURE TRANSMITTER
Sensor: NDIR; 15 year life expectancy.
Range: CO2: 0 to 2000 or 0 to 5000 ppm (depending on model); Temperature: 32 to 122°F (0 to 50°C).
Accuracy*: CO2: ±40 PPM + 3% of reading (2000 PPM CO2); ± 50 PPM + 5% of reading (5000 PPM CO2); Temperature: ±1°C @ 25°C.
Response Time: 2 min for 99% step change.
Temperature Limits: 32 to 122°F (0 to 50°C).
Humidity Limits: 0 to 85% (non-condensing).
Power Requirements: 16 to 35 VDC or 19 to 28 VAC.
Power Consumption: Average: 2 w; Peak: 3.75 w.
Output: Current: 4-20 mA (max. 500 Ω); Voltage: 0-5 VDC or 0-10 VDC (min. 500Ω); Relay: SPST NO rated 2A @ 30 VDC; RTD or thermistor per r-t curves on page4 (depending on model).Relay: SPST NO rated 2 A @ 30 VDC; RTD or thermistor per r-t curves on page 4 in catalog (depending on model).
Compliance: CE.
