CD-150 | Low cost diaphragm pressure switch | adj. range 10-150 psig (.69-10.3 bar) | min. deadband 14 psig (.97 bar) | max. deadband 24 psig (1.7 bar). | Dwyer Instruments

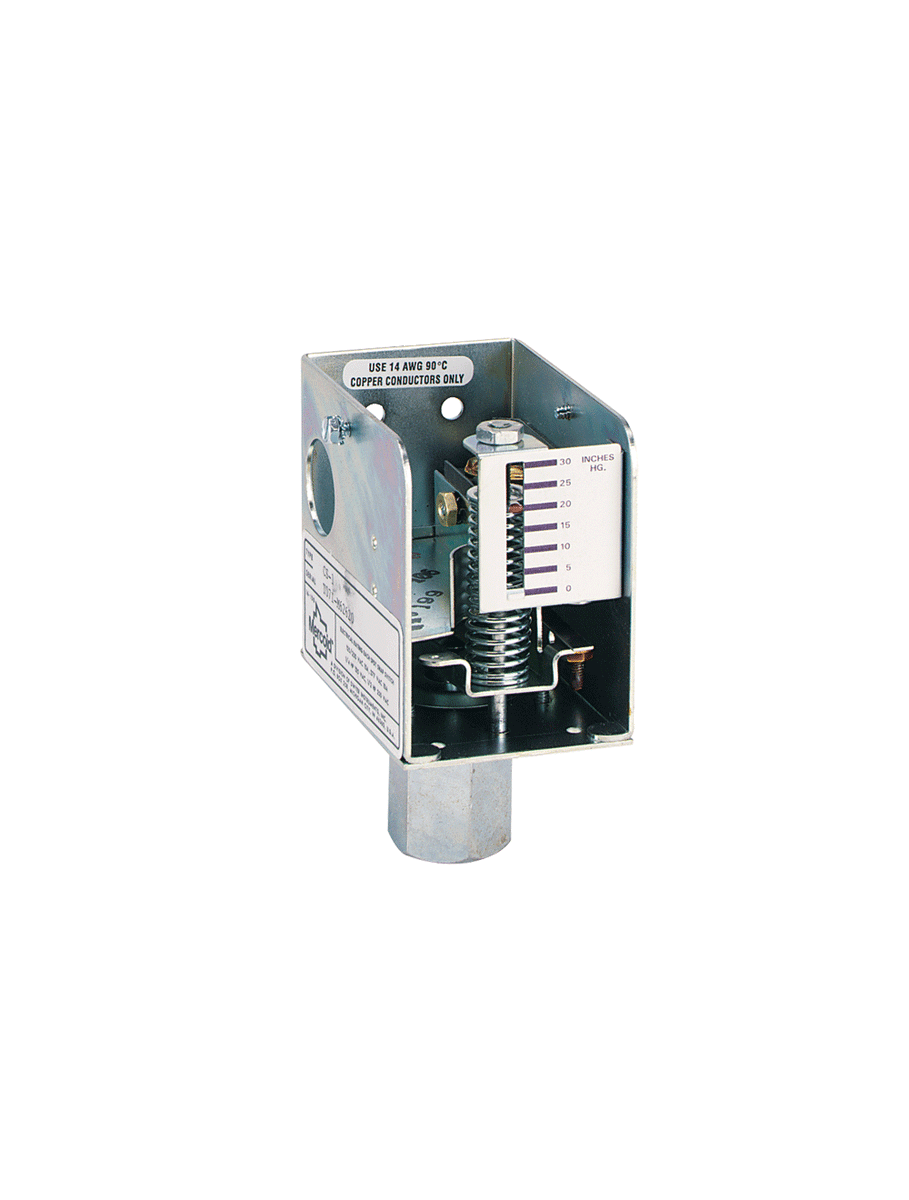

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CD-150

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments CD-150 Documents

CS/CD Series CS & CD Catalog Page More Info

Overview

Details for CD-150

CD-150 Diaphragm Pressure Switch by Dwyer Instruments The Dwyer CD-150 is a 10/150# adjustable diaphragm pressure switch designed for industrial applications. It features a rugged construction, adjustable settings, and a wide range of options for customizable configurations. Key Features: * Adjustable pressure range from 10 to 150 PSI * Diaphragm design provides reliable operation and high accuracy * Compact and lightweight construction for easy installation * Adjustable switch point for precise pressure control * Optional SPDT or DPDT electrical contacts for versatile application Applications: The CD-150 is ideal for a wide range of industrial applications, including: * Air compressors * Hydraulic systems * Process control * HVAC systems * Boiler control Our HVAC supply store offers the CD-150 pressure switch at competitive prices with fast shipping. Contact us today for more information or to place an order.

SERIES CS & CD DIAPHRAGM PRESSURE SWITCH

Visible Set Points, Fixed or Adjustable Deadband

Series CS & CD Diaphragm Pressure Switches combine advanced design and precision construction in a small size. Unit is ideal for instrument panels, small compressors and general industrial applications. Visible set point and easy to wire SPDT snap switch reduce installation time. Operates in any position and is vibration resistant.

Specifications

Series: CS & CD DIAPHRAGM PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: CS & CD DIAPHRAGM PRESSURE SWITCH
Wetted Materials: Nylon reinforced Buna-N and steel.
Temperature Limits: -30 to 150°F (-35 to 66°C).
Pressure Limit: 30 psig (2.1 bar) for ranges 1; 3; and 10. 50 psig (3.5 bar) for range 30. 175 psig (12.1 bar) for range 150.
Enclosure Rating: General purpose.
Switch Type: SPDT snap switch.
Electrical Rating: 15 A @ 120 VAC; 8 A @ 240 VAC.
Electrical Connections: Screw terminal.
Conduit Connection: 1/2" hole for conduit hub.
Process Connection: 1/4" female NPT.
Mounting Orientation: Any position.
Set Point Adjustment: Internal screw.
Weight: .5 lb (0.23 kg).
Deadband: See Ordering page.
