CAD32F7 | TeSys D Control Relay, 3 NO + 2 NC, 110V AC, 10A, Screw Clamp Terminals | Schneider Electric (Square D)

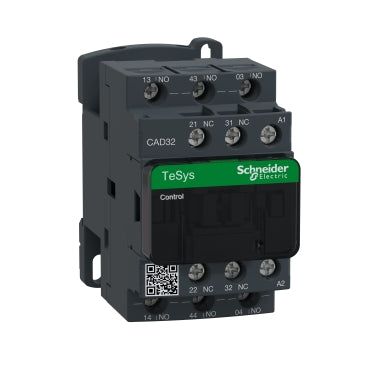

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CAD32F7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) CAD32F7 Documents

More Info

Overview

Details for CAD32F7

CAD32F7 120V Control Relay Schneider Electric's (Square D) CAD32F7 is a versatile control relay engineered to handle complex electrical systems in industrial applications. Featuring three normally open (NO) and two normally closed (NC) contacts, this relay offers flexibility in controlling various circuits. Its compact design maximizes space utilization in control panels. The CAD32F7 operates on a 120V supply voltage, providing efficient and reliable operation. Its electrical life of up to 10 million operations ensures long-lasting performance. With its rugged construction and UL 508 certification, this relay withstands demanding industrial environments. The clear terminal markings and easy-to-read diagram facilitate quick and accurate wiring. Whether you're designing new control systems or replacing existing relays, the CAD32F7 delivers exceptional performance and reliability. Contact our HVAC supply store for the best prices and fast shipping on your electrical needs. TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Specifications

range: TeSys;TeSys Deca
product name: TeSys CAD
Product or Component Type: Control relay
device short name: CAD
contactor application: Control circuit
utilisation category: AC-15;AC-14;DC-13
pole contact composition: 3 NO + 2 NC
[Ue] rated operational voltage: <= 690 V AC 25...400 Hz
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 110 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C)
Irms rated making capacity: 140 A AC IEC 60947-5-1;250 A DC IEC 60947-5-1
[Icw] rated short-time withstand current: 100 A - 1 s;120 A - 500 ms;140 A - 100 ms
associated fuse rating: 10 A gG IEC 60947-5-1
[Ui] rated insulation voltage: 600 V UL;600 V CSA;690 V IEC 60947-5-1
Mounting Support: Rail;Plate
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end;screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end;screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)solid without cable end;screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)solid without cable end
tightening torque: 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
control circuit voltage limits: 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
operating time: 12...22 ms coil energisation and NO closing;4...12 ms coil de-energisation and NO opening;4...19 ms coil energisation and NC opening;6...17 ms coil de-energisation and NC closing
mechanical durability: 30 Mcycles
maximum operating rate: 180 cyc/mn
inrush power in VA: 70 VA 50 Hz 68 °F (20 °C))
hold-in power consumption in VA: 8 VA 50 Hz 68 °F (20 °C))
minimum switching voltage: 17 V
minimum switching current: 5 mA
non-overlap time: 1.5 ms on energisation between NC and NO contact;1.5 ms on de-energisation between NC and NO contact
insulation resistance: > 10 MOhm
mechanical robustness: Shocks control relay open10 Gn for 11 ms IEC 60068-2-27;Shocks control relay closed15 Gn for 11 ms IEC 60068-2-27;Vibrations control relay open2 Gn;5...300 Hz IEC 60068-2-6;Vibrations control relay closed4 Gn;5...300 Hz IEC 60068-2-6
Height: 3.03 in (77 mm)
Width: 1.77 in (45 mm)
Depth: 3.31 in (84 mm)
Net Weight: 1.28 lb(US) (0.58 kg)
standards: BS 4794;EN 60947-5;IEC 60947-5-1;NF C 63-140;VDE 0660;IEC 60335-1
Product Certifications: UL;CSA;UKCA
IP degree of protection: IP2x front face VDE 0106
protective treatment: TH IEC 60068
ambient air temperature for operation: -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
Ambient Air Temperature for Storage: -76…176 °F (-60…80 °C)
operating altitude: 0...9842.52 ft (0...3000 m)
Category: 22371-RELAYS;CONTROL
Discount Schedule: I12
GTIN: 3389110534276
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.17 in (5.5 cm)
Package 1 Width: 3.74 in (9.5 cm)
Package 1 Length: 4.49 in (11.4 cm)
Package 1 Weight: 12.45 oz (353 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 20
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 16.70 lb(US) (7.575 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 320
Package 3 Height: 31.50 in (80 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 282.41 lb(US) (128.1 kg)
Warranty: 18 months
