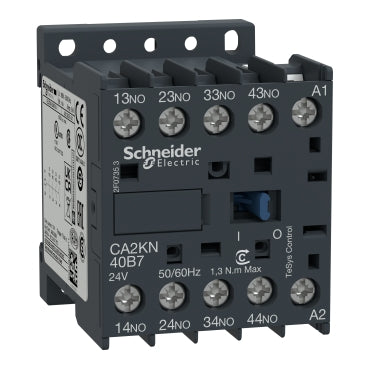

CA2KN40U7 | TeSys K Control Relay, 4 NO, <=690V, 230-240V AC, Screw Clamp Terminals | Schneider Electric (Square D)

Schneider Electric (Square D) | CA2KN40U7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CA2KN40U7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) CA2KN40U7 Documents

More Info

Overview

Details for CA2KN40U7

Advanced Control and Automation: Schneider Electric (Square D) CA2KN40U7 240V Control RelayThe Schneider Electric (Square D) CA2KN40U7 240V Control Relay is a vital component for industrial control and automation systems. This robust relay provides reliable and efficient switching operations for various electrical circuits. Key Features: Â» 240V Operation: Designed for use in 240V electrical systems. Â» 4 Normally Open (N/O) Contacts: Enables control of multiple circuits simultaneously. Â» Compact Design: Space-saving form factor for easy integration into control panels. Â» Durable Construction: Built to withstand demanding industrial environments. Â» Reliable Performance: Ensures accurate and consistent switching operations. Applications: Â» Industrial automation systems Â» Machine control Â» Electrical distribution panels Â» Lighting control Â» HVAC systems Enhance the performance and reliability of your control systems with the Schneider Electric (Square D) CA2KN40U7 240V Control Relay. Shop now at our HVAC supply store for the best prices and fast shipping on all your electrical needs! TeSys K control relay, 4 contacts (4NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 230-240V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Specifications

range: TeSys
product name: TeSys CAK
Product or Component Type: Control relay
device short name: CA2K
contactor application: Control circuit
utilisation category: DC-13;AC-15
pole contact composition: 4 NO
[Ue] rated operational voltage: <= 690 V <= 400 Hz
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 230...240 V AC 50/60 Hz
[Ith] conventional free air thermal current: 10 A 122 °F (50 °C)
Irms rated making capacity: 110 A IEC 60947
associated fuse rating: 10 A gG IEC 60947;10 A gG VDE 0660
[Ui] rated insulation voltage: 690 V IEC 60947;750 V VDE 0110 group C;690 V BS 5424;600 V CSA C22.2 No 14
Mounting Support: Rail;Plate
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible without cable end
tightening torque: 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm;11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 0.24 in (6 mm);11.51 lbf.in (1.3 N.m) screw clamp terminals pozidriv No 2
control circuit voltage limits: Drop-out 0.2...0.75 Uc 122 °F (50 °C));Operational 0.8...1.15 Uc 122 °F (50 °C))
operating time: 10...20 ms coil de-energisation and NO opening;10...20 ms coil energisation and NO closing
mechanical durability: 10 Mcycles
maximum operating rate: 10000 cyc/h
immunity to microbreaks: 2 ms
inrush power in VA: 30 VA 68 °F (20 °C))
hold-in power consumption in VA: 4.5 VA 68 °F (20 °C))
heat dissipation: 1.3 W
minimum switching voltage: 17 V
minimum switching current: 5 mA
non overlap distance: 0.02 in (0.5 mm)
insulation resistance: > 10 MOhm
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.24 in (57 mm)
Net Weight: 0.40 lb(US) (0.18 kg)
standards: BS 5424;IEC 60947;NF C 63-140;VDE 0660
Product Certifications: UL;CSA;UKCA
IP degree of protection: IP2x
protective treatment: TC IEC 60068
Ambient air temperature for operation: -13…122 °F (-25…50 °C)
Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
operating altitude: 6561.68 ft (2000 m) without derating
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
mechanical robustness: Vibrations contactor open2 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Shocks contactor open10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
Category: 22371-RELAYS;CONTROL
Discount Schedule: I12
GTIN: 3389110483376
Returnability: No
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.56 in (6.5 cm)
Package 1 Width: 1.89 in (4.8 cm)
Package 1 Length: 2.44 in (6.2 cm)
Package 1 Weight: 6.35 oz (180 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 50
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 20.59 lb(US) (9.338 kg)
Warranty: 18 months
