BTT-R25-2 | Outside Air Temperature Transmitter with 0 to 10 V Output with solar radiation shield | Dwyer Instruments

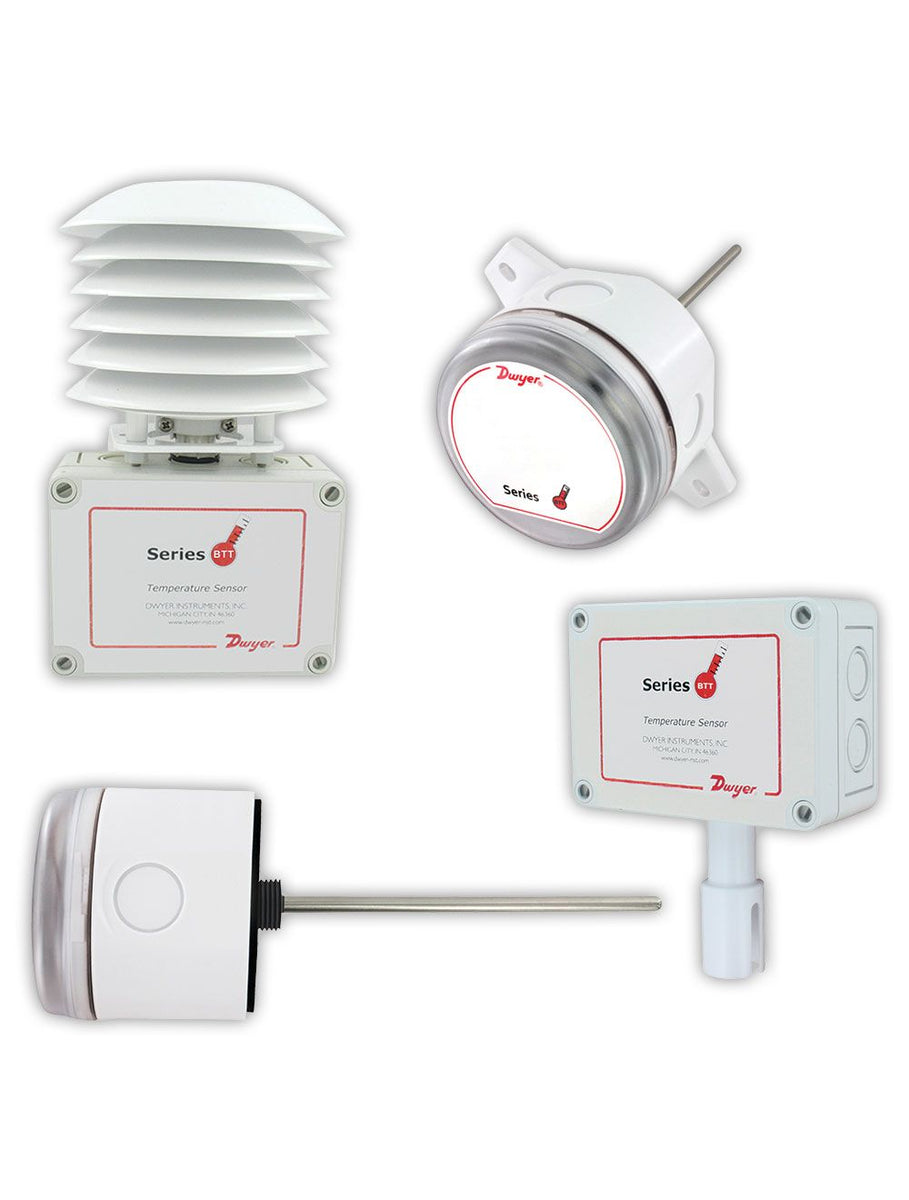

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BTT-R25-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BTT-R25-2 Documents

BTT-E/N Instruction Manual BTT Instruction Manual Series BTT Catalog Page More Info

Overview

Details for BTT-R25-2

Dwyer Instruments BTT-R25-2 Outside Air Temp Transmitter The BTT-R25-2 Outside Air Temperature Transmitter from Dwyer Instruments precisely measures and transmits outdoor temperature for HVAC applications. With its robust stainless steel probe and rugged enclosure, this transmitter can withstand harsh outdoor conditions. Key Features: * Accuracy: Â±0.5Â°F (Â±0.28Â°C) * Temperature Range: -40Â°F to 150Â°F (-40Â°C to 65Â°C) * Output: 4-20 mA * Transmitter Output: 3-wire * Ambient Temperature: 0Â°F to 120Â°F (-18Â°C to 49Â°C) Benefits: * Accurate and reliable temperature measurement * Durable construction for outdoor environments * Easy installation and integration with HVAC systems * Provides valuable data for temperature monitoring and control Applications: * Building automation systems * HVAC controllers * Industrial and commercial facilities * Energy management systems Shop our HVAC supply store today for the best prices and fast shipping on the Dwyer Instruments BTT-R25-2 Outside Air Temperature Transmitter. Enhance your HVAC system with accurate temperature monitoring and control!

Series BTT Temperature Transmitters

Current or Voltage Output; NEMA 4X Enclosures

The Series BTT Temperature Transmitters offer transmitter output signals with the same form and fit as our popular TE thermistor and RTD sensors for building HVAC applications. Thermowells are required when using immersion models in liquid applications.

NIST CALIBRATION available in Product Configurator.

The wall mount models can also be seen on the Series BTT-E/N page.

Product Applications

Building automation system temperature monitoring

Duct, immersion, and outside air models available
Radiation shield available for mounting in direct sunlight
Transmitter output allows for longer wire runs than standard thermistor sensors

Specifications

Series: BTT Temperature Transmitters
Category/Type: Temperature
Type: Transmitters
Series: BTT Temperature Transmitters
Temperature Sensor: Pt1000 RTD.
Range: -40 to 140°F (-40 to 60°C).
Temperature Limits: Operating: -40 to 302°F (-40 to 150°C).
Accuracy: ±0.5°C @ 25°C.
Thermal Effect: ±0.01%/°C.
Response Time: 100 ms.
Wetted Materials: All models: 304 SS (probe); polycarbonate (housing);Duct and immersion models: Neoprene (gasket);Outside air models: Nylon (insert); silicone (O-ring).
Process Connection: 1/2" NPT (immersion models only).
Electrical Connection: Removable terminal block; knocks out for conduit fitting.
Conduit Connection: 1/2" NPT.
Probe Lengths: 2.5 to 18" (depending on configuration).
Power Requirements: 13 to 36 VDC for current models; 13 to 36 VDC or 16 to 28 VAC for voltage models.
Output Signal: 4 to 20 mA or 0 to 10 VDC (depending on model).
Enclosure Rating: NEMA 4X (IP66) (immersions models require thermowell).
Weight: 5.11 oz; 145 g (duct/immersion); 8.4 oz (238 g) (OSA without radiationshield); 1 lb 7.4 oz (663.4 g) (OSA with radiation shield).
Agency Approvals: CE.
