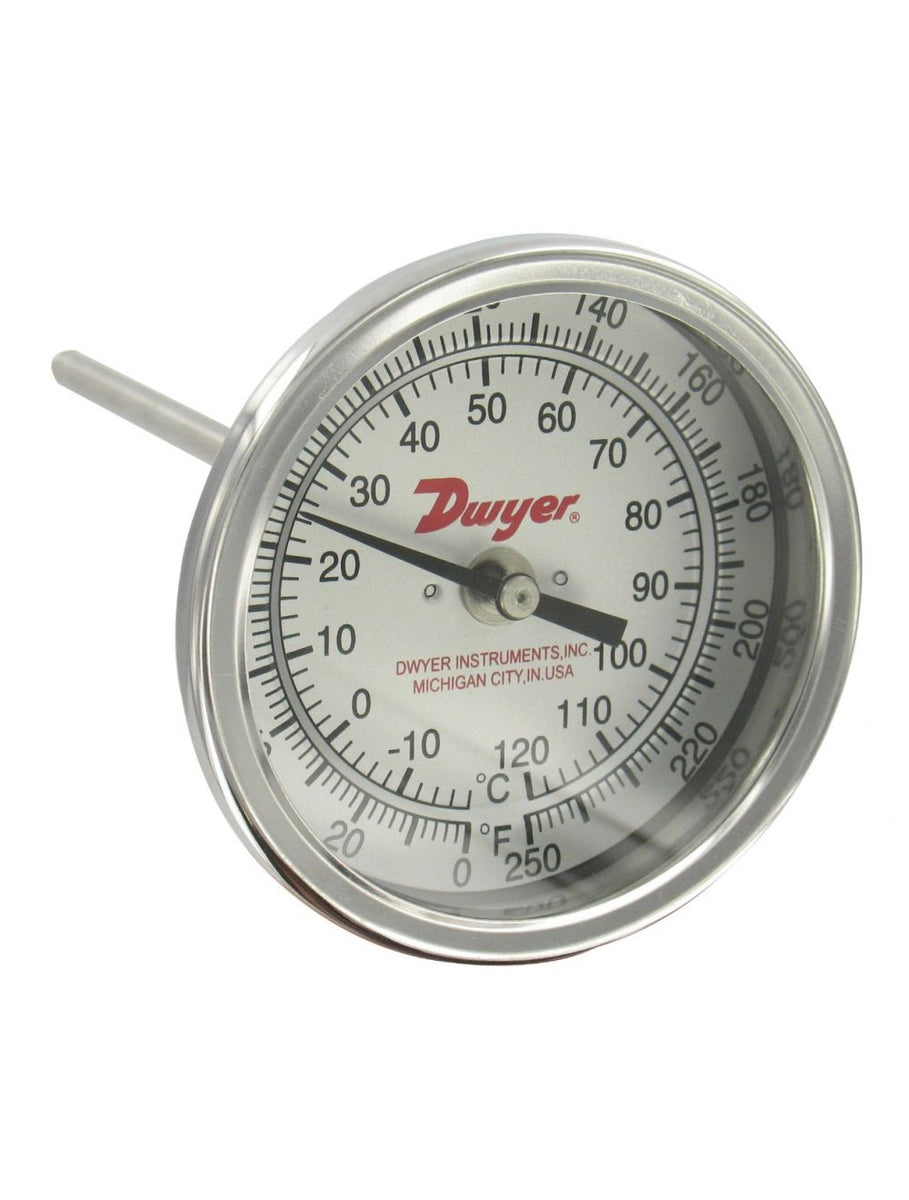

BTB3605D | Bimetal thermometer | 3" dial | 6" stem length | range 0/250°F (-20/120°C) | 2°F (2°C) div. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BTB3605D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BTB3605D Documents

Series BT Catalog Page More Info

Overview

Details for BTB3605D

BTB3605D Dwyer Instruments Bimetal Thermometer Dwyer Instruments BTB3605D is a high-quality bimetal thermometer designed to provide accurate temperature measurements in various industrial applications. With a temperature range of 0â€“250Â°F (0â€“120Â°C) and a 6-inch stem length, this thermometer is ideal for monitoring temperatures in tanks, boilers, pipelines, and other industrial equipment. The BTB3605D thermometer is constructed from durable materials for long-lasting reliability. Its bimetallic coil and brass stem ensure accuracy and resistance to harsh environments. The easy-to-read dial face provides clear temperature readings, and the adjustable pointer allows for precise calibration. Key Features: * Temperature range: 0â€“250Â°F (0â€“120Â°C) * Stem length: 6 inches * Bimetal coil for accuracy * Brass stem for durability * Easy-to-read dial face * Adjustable pointer for precise calibration Applications: * Temperature monitoring in tanks * Monitoring boiler temperatures * Measuring temperatures in pipelines * Monitoring industrial equipment temperatures * Suitable for various industrial and commercial applications Trust our HVAC supply store for the Best Prices and Fast Shipping!

SERIES BT BIMETAL THERMOMETER

2", 3" or 5" Dial, Dual Scale, ±1% FS Accuracy, External Reset

The Series BT Bimetal Thermometers offer accurate, reliable service even in the toughest environments. These corrosion resistant units are constructed from stainless steel and are hermetically sealed to prevent crystal fogging. The bimetal element directly drives pointer, eliminating gears and linkage. An external reset screw allows field calibration and easy-to-read aluminum dial minimizes parallax error. Choose back connection, lower connection or adjustable angle for easy viewing and installation. Adjustable models can be rotated a full 360° and tilted over a 180° arc. NOTE: When using in pressurized applications, use a suitable thermowell.

Product Applications

Chiller or boiler water temperature monitoring
Treatment plant temperature monitoring

Hermetically sealed
Adjustable dial position models

Specifications

Series: BT BIMETAL THERMOMETER
Category/Type: Temperature
Type: Thermometers
Series: BT BIMETAL THERMOMETER
Wetted Materials: 304 SS.
Housing Material: Series 300 SS.
Lens: Glass.
Accuracy: ±1% FS.
Response Time: ≤40 s.
Temperature Limits: Head: 200°F (93°C); Stem: Not to exceed 50% over-range or 1000°F (538°C) or 800°F (427°C) continuously.
Process Connection: 1/4" NPT on 2" dial size; 1/2" NPT on 3" or 5" dial size.
Stem Diameter: 1/4" O.D.
Immersion Depth: Minimum 2" in liquids; 4" in gas.
