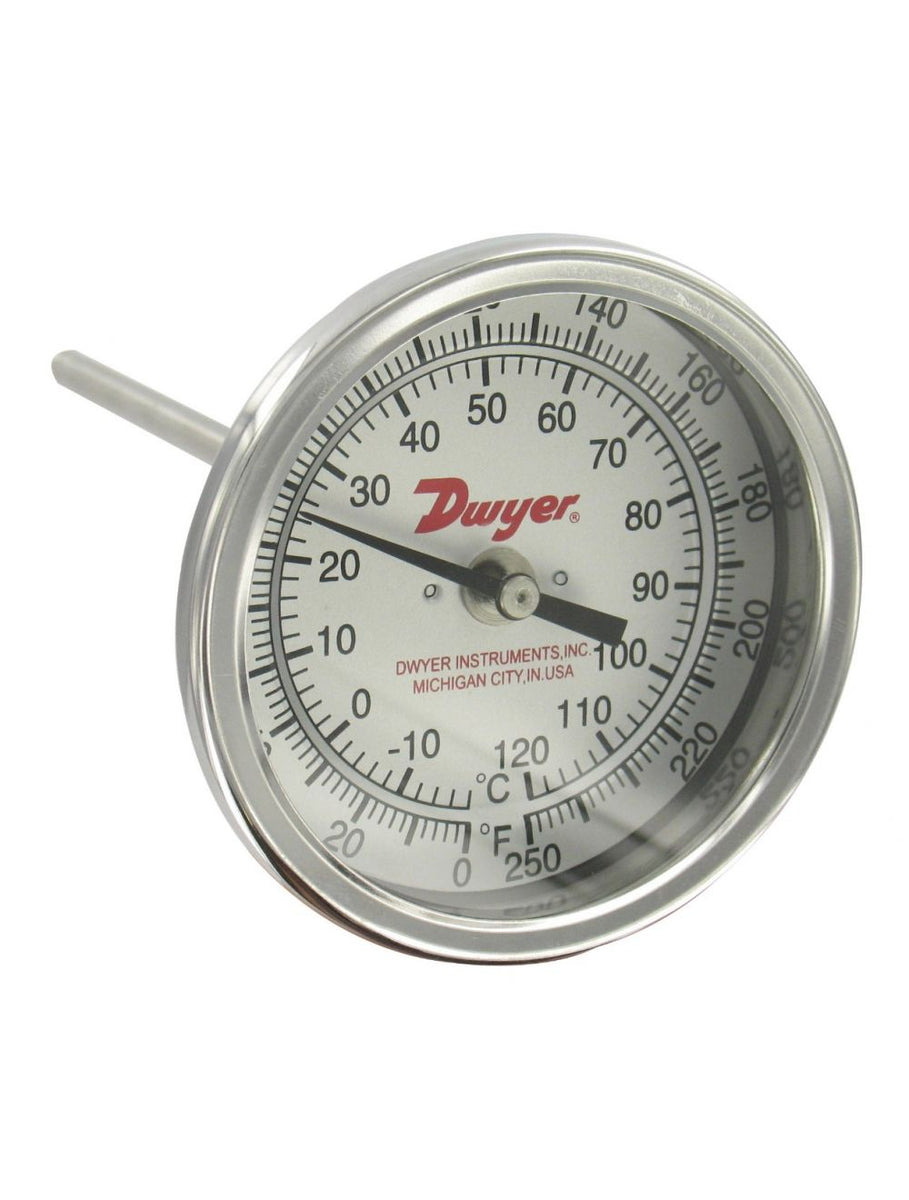

BTB3405D | Bimetal thermometer | 3" dial | 4" stem length | range 0/250°F (-20/120°C) | 2°F (2°C) div. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BTB3405D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BTB3405D Documents

Series BT Catalog Page More Info

Overview

Details for BTB3405D

Dwyer Instruments BTB3405D 3" Bi-Metal Thermometer Dwyer Instruments BTB3405D Bi-Metal Thermometer features a 3" dial with a 0-250Â°F temperature range, making it ideal for monitoring temperatures in industrial settings. Its 4" stem allows for easy insertion into tanks or other applications. The thermometer's robust construction ensures durability and accuracy in demanding environments. The BTB3405D is known for its reliability and precision, making it a trusted choice for industrial engineers and maintenance professionals. Our HVAC supply store offers competitive pricing and fast shipping on the Dwyer Instruments BTB3405D Bi-Metal Thermometer. Shop with us today to benefit from our expertise and commitment to customer satisfaction.

SERIES BT BIMETAL THERMOMETER

2", 3" or 5" Dial, Dual Scale, ±1% FS Accuracy, External Reset

The Series BT Bimetal Thermometers offer accurate, reliable service even in the toughest environments. These corrosion resistant units are constructed from stainless steel and are hermetically sealed to prevent crystal fogging. The bimetal element directly drives pointer, eliminating gears and linkage. An external reset screw allows field calibration and easy-to-read aluminum dial minimizes parallax error. Choose back connection, lower connection or adjustable angle for easy viewing and installation. Adjustable models can be rotated a full 360° and tilted over a 180° arc. NOTE: When using in pressurized applications, use a suitable thermowell.

Product Applications

Chiller or boiler water temperature monitoring
Treatment plant temperature monitoring

Hermetically sealed
Adjustable dial position models

Specifications

Series: BT BIMETAL THERMOMETER
Category/Type: Temperature
Type: Thermometers
Series: BT BIMETAL THERMOMETER
Wetted Materials: 304 SS.
Housing Material: Series 300 SS.
Lens: Glass.
Accuracy: ±1% FS.
Response Time: ≤40 s.
Temperature Limits: Head: 200°F (93°C); Stem: Not to exceed 50% over-range or 1000°F (538°C) or 800°F (427°C) continuously.
Process Connection: 1/4" NPT on 2" dial size; 1/2" NPT on 3" or 5" dial size.
Stem Diameter: 1/4" O.D.
Immersion Depth: Minimum 2" in liquids; 4" in gas.
