BTB34010D | Bimetal thermometer | 3" dial | 4" stem length | range 0/200°F (-20/100°C) | 2°F (2°C) div. | Dwyer Instruments

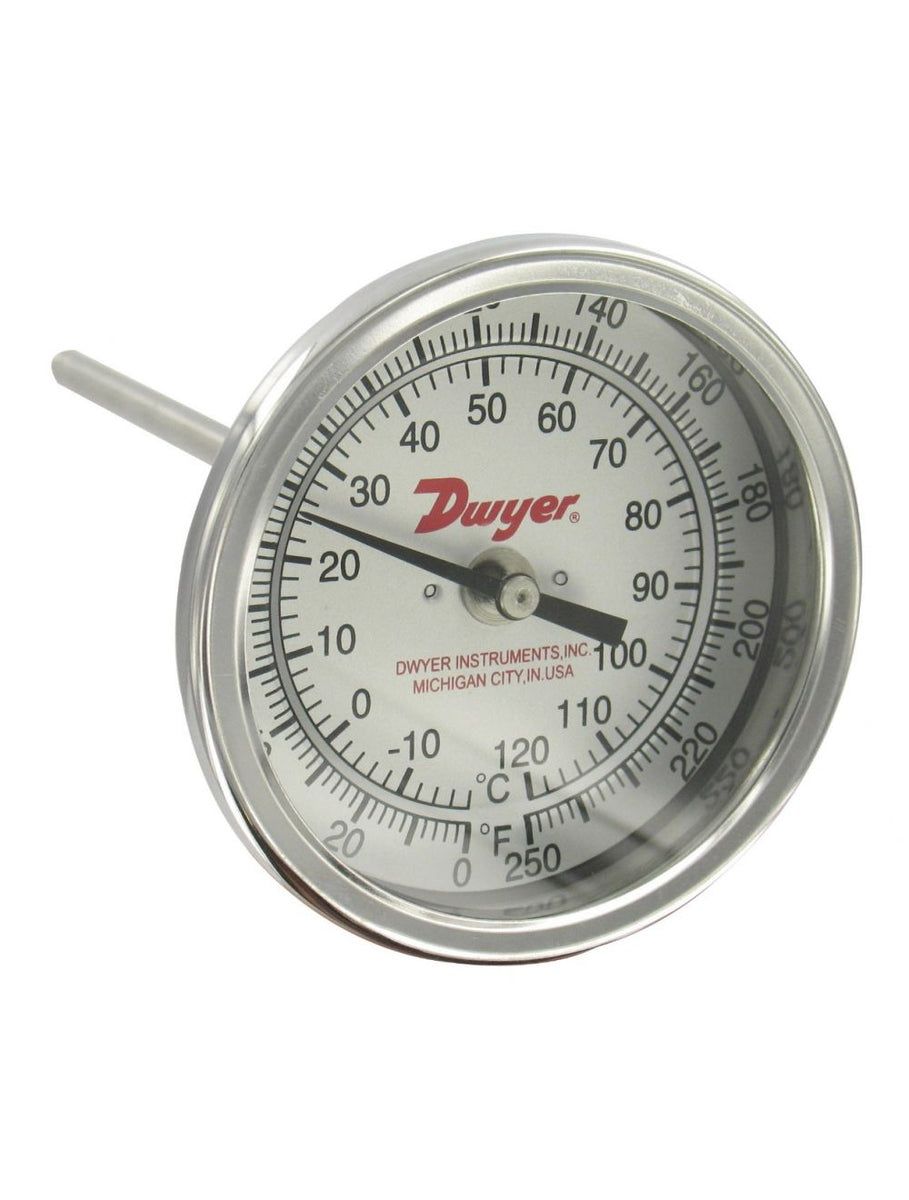

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BTB34010D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BTB34010D Documents

Series BT Catalog Page More Info

Overview

Details for BTB34010D

BTB34010D Bimetal Thermometer by Dwyer Instruments The BTB34010D from Dwyer Instruments is a precise and durable bimetal thermometer, ideal for measuring temperatures in industrial and commercial applications. Features: * 3" dial size with a clear and easy-to-read scale * 0-200Â°F temperature range * Â±2% accuracy over the entire range * Durable stainless steel case and stem * NPT connection Benefits: * Provides accurate and reliable temperature readings * Rugged construction withstands harsh environments * Easy installation and maintenance * Ideal for monitoring temperatures in HVAC systems, boilers, and process equipment Applications: * Temperature monitoring in industrial settings * HVAC systems * Boilers * Process equipment * Food and beverage industry * Chemical industry * Manufacturing facilities Our HVAC supply store offers the best prices and fast shipping on the BTB34010D Bimetal Thermometer. Trust us for your industrial and commercial supply needs.

SERIES BT BIMETAL THERMOMETER

2", 3" or 5" Dial, Dual Scale, ±1% FS Accuracy, External Reset

The Series BT Bimetal Thermometers offer accurate, reliable service even in the toughest environments. These corrosion resistant units are constructed from stainless steel and are hermetically sealed to prevent crystal fogging. The bimetal element directly drives pointer, eliminating gears and linkage. An external reset screw allows field calibration and easy-to-read aluminum dial minimizes parallax error. Choose back connection, lower connection or adjustable angle for easy viewing and installation. Adjustable models can be rotated a full 360° and tilted over a 180° arc. NOTE: When using in pressurized applications, use a suitable thermowell.

Product Applications

Chiller or boiler water temperature monitoring
Treatment plant temperature monitoring

Hermetically sealed
Adjustable dial position models

Specifications

Series: BT BIMETAL THERMOMETER
Category/Type: Temperature
Type: Thermometers
Series: BT BIMETAL THERMOMETER
Wetted Materials: 304 SS.
Housing Material: Series 300 SS.
Lens: Glass.
Accuracy: ±1% FS.
Response Time: ≤40 s.
Temperature Limits: Head: 200°F (93°C); Stem: Not to exceed 50% over-range or 1000°F (538°C) or 800°F (427°C) continuously.
Process Connection: 1/4" NPT on 2" dial size; 1/2" NPT on 3" or 5" dial size.
Stem Diameter: 1/4" O.D.
Immersion Depth: Minimum 2" in liquids; 4" in gas.
