Get your Special Pricing!

Brand: Dwyer InstrumentsSKU: BTB3255D

List Price
~~$233.00~~

$77.80

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

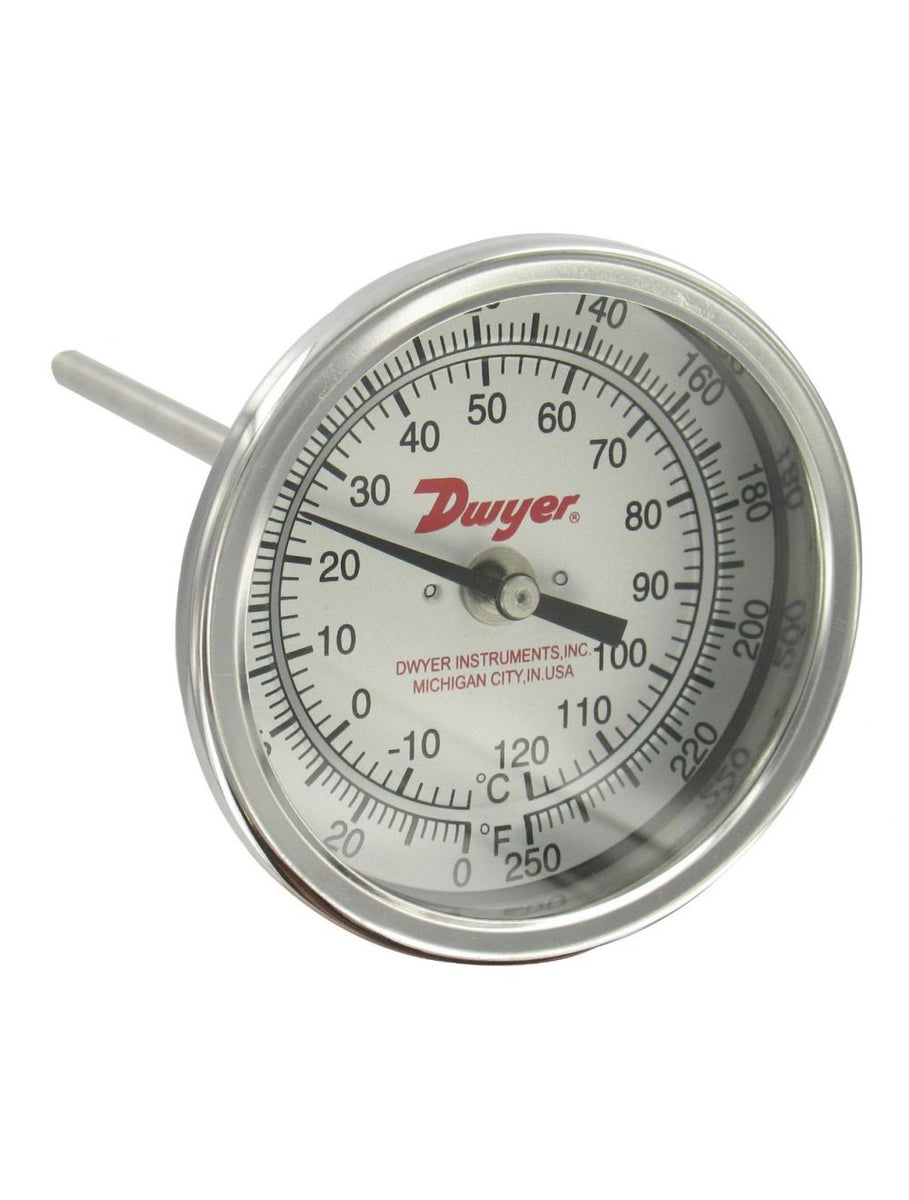

BTB3255D | Bimetal thermometer | 3" dial | 2-1/2" stem length | range 0/250°F (-20/120°C) | 2°F (2°C) div. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BTB3255D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BTB3255D Documents

Series BT Catalog Page More Info

Overview

Details for BTB3255D

Dwyer Instruments BTB3255D: 3" Bimetal Thermometer for Precise Temperature Monitoring The Dwyer Instruments BTB3255D is a 3-inch bimetal thermometer designed to provide accurate and reliable temperature readings for industrial and commercial applications. With a temperature range of 0-250Â°F and a 2.5-inch stem, it is ideal for measuring temperatures in tanks, pipes, and other systems. Constructed from durable materials, the BTB3255D features a rugged aluminum construction for enhanced durability and corrosion resistance. Its bimetallic sensing element ensures accurate temperature readings, even in harsh environments. Key Features: - Temperature range: 0-250Â°F - 3-inch dial size - 2.5-inch stem length - Aluminum construction - Bimetallic sensing element - Easy-to-read dial Applications: - Monitoring temperature in tanks, pipes, and equipment - HVAC systems - Industrial and commercial processes - Food and beverage manufacturing - Pharmaceutical industry Enhance your temperature monitoring capabilities with the Dwyer Instruments BTB3255D. Contact our HVAC supply store today for the best prices and fast shipping on all your industrial supply needs!

SERIES BT BIMETAL THERMOMETER

2", 3" or 5" Dial, Dual Scale, ±1% FS Accuracy, External Reset

The Series BT Bimetal Thermometers offer accurate, reliable service even in the toughest environments. These corrosion resistant units are constructed from stainless steel and are hermetically sealed to prevent crystal fogging. The bimetal element directly drives pointer, eliminating gears and linkage. An external reset screw allows field calibration and easy-to-read aluminum dial minimizes parallax error. Choose back connection, lower connection or adjustable angle for easy viewing and installation. Adjustable models can be rotated a full 360° and tilted over a 180° arc. NOTE: When using in pressurized applications, use a suitable thermowell.

Product Applications

Chiller or boiler water temperature monitoring
Treatment plant temperature monitoring

Hermetically sealed
Adjustable dial position models

Specifications

Series: BT BIMETAL THERMOMETER
Category/Type: Temperature
Type: Thermometers
Series: BT BIMETAL THERMOMETER
Wetted Materials: 304 SS.
Housing Material: Series 300 SS.
Lens: Glass.
Accuracy: ±1% FS.
Response Time: ≤40 s.
Temperature Limits: Head: 200°F (93°C); Stem: Not to exceed 50% over-range or 1000°F (538°C) or 800°F (427°C) continuously.
Process Connection: 1/4" NPT on 2" dial size; 1/2" NPT on 3" or 5" dial size.
Stem Diameter: 1/4" O.D.
Immersion Depth: Minimum 2" in liquids; 4" in gas.
