BTB2409D | Bimetal thermometer | 2" dial | 4" stem length | range 200/1000°F (100/550°C) | 10°F (5°C) div. | Dwyer Instruments

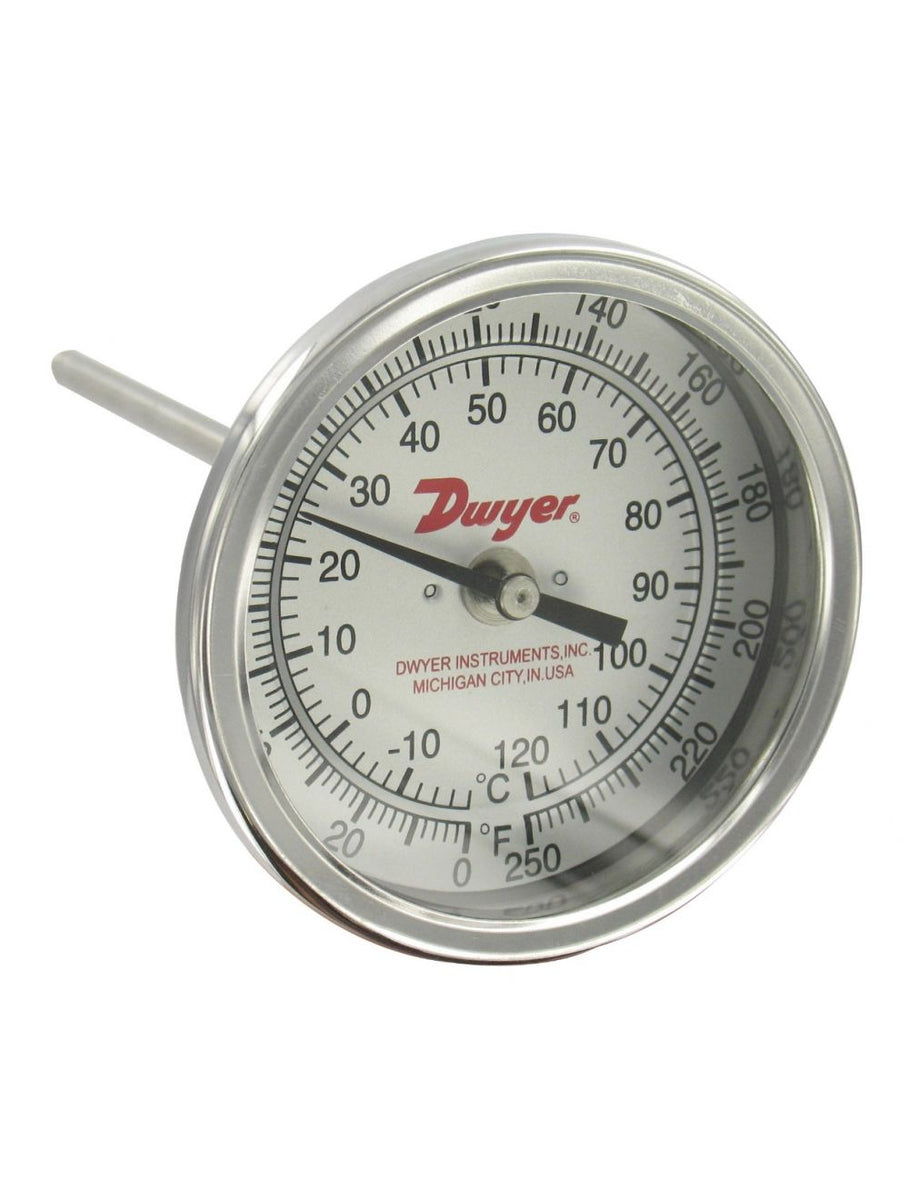

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BTB2409D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BTB2409D Documents

Series BT Catalog Page More Info

Overview

Details for BTB2409D

BTB2409D Bimtal Thermometer: Reliable Temperature Monitoring for Industrial Environments The Dwyer Instruments BTB2409D Bimtal Thermometer is an essential tool for industrial engineers and maintenance professionals seeking accurate and reliable temperature measurements. This 3" bimetallic thermometer features a rugged design with a 200-1000Â°F temperature range and a 4" stem for easy insertion into various applications. The BTB2409D utilizes a bimetallic coil that reacts to temperature changes, providing a high level of accuracy and durability. Its wide temperature range makes it suitable for monitoring various processes and environments. The 4" stem allows for convenient mounting in tight spaces or where remote temperature readings are required. Whether it's monitoring temperatures in HVAC systems, industrial machinery, or laboratory equipment, the Dwyer Instruments BTB2409D Bimtal Thermometer delivers precise and dependable measurements. Trust our HVAC supply store for the best prices and fast shipping on all your industrial products.

SERIES BT BIMETAL THERMOMETER

2", 3" or 5" Dial, Dual Scale, ±1% FS Accuracy, External Reset

The Series BT Bimetal Thermometers offer accurate, reliable service even in the toughest environments. These corrosion resistant units are constructed from stainless steel and are hermetically sealed to prevent crystal fogging. The bimetal element directly drives pointer, eliminating gears and linkage. An external reset screw allows field calibration and easy-to-read aluminum dial minimizes parallax error. Choose back connection, lower connection or adjustable angle for easy viewing and installation. Adjustable models can be rotated a full 360° and tilted over a 180° arc. NOTE: When using in pressurized applications, use a suitable thermowell.

Product Applications

Chiller or boiler water temperature monitoring
Treatment plant temperature monitoring

Hermetically sealed
Adjustable dial position models

Specifications

Series: BT BIMETAL THERMOMETER
Category/Type: Temperature
Type: Thermometers
Series: BT BIMETAL THERMOMETER
Wetted Materials: 304 SS.
Housing Material: Series 300 SS.
Lens: Glass.
Accuracy: ±1% FS.
Response Time: ≤40 s.
Temperature Limits: Head: 200°F (93°C); Stem: Not to exceed 50% over-range or 1000°F (538°C) or 800°F (427°C) continuously.
Process Connection: 1/4" NPT on 2" dial size; 1/2" NPT on 3" or 5" dial size.
Stem Diameter: 1/4" O.D.
Immersion Depth: Minimum 2" in liquids; 4" in gas.
