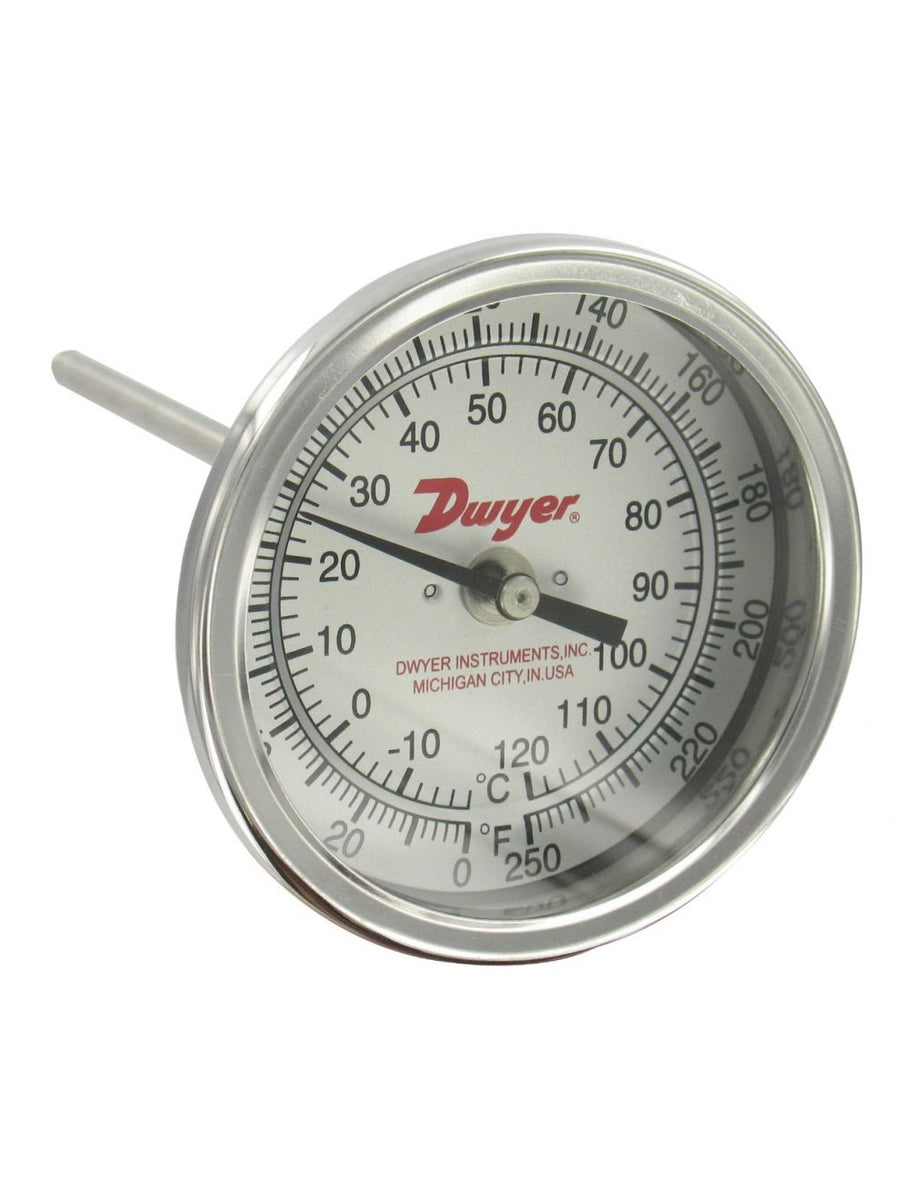

BTB22551 | Bimetal thermometer | 2" dial | 2-1/2" stem length | range 0/250°F | 2°F div. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BTB22551

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BTB22551 Documents

Series BT Catalog Page More Info

Overview

Details for BTB22551

Dwyer Instruments BTB22551 2" Dial Thermometer The Dwyer Instruments BTB22551 is a precise and durable dial thermometer designed for industrial and commercial applications. It features a 2" dial with bold markings for easy readability, allowing quick and accurate temperature monitoring. The 2.5" stem and 1/4" NPT connection provide easy installation and compatibility with various systems. Crafted from high-quality materials, the BTB22551 withstands harsh industrial environments, ensuring long-lasting performance. Its 0-250Â°F temperature range makes it suitable for a wide range of applications, including HVAC systems, industrial machinery, and process control. Key Features: 2" dial with clear markings for precise temperature readings 2.5" stem length for versatile installation 1/4" NPT connection for compatibility with standard fittings 0-250Â°F temperature range covers various industrial applications Robust construction for reliable operation in demanding environments our HVAC supply store is your trusted source for Dwyer Instruments and other top-quality industrial supplies. We offer competitive prices, fast shipping, and excellent customer support. Order your BTB22551 thermometer today and experience the precision and durability of Dwyer Instruments.

SERIES BT BIMETAL THERMOMETER

2", 3" or 5" Dial, Dual Scale, ±1% FS Accuracy, External Reset

The Series BT Bimetal Thermometers offer accurate, reliable service even in the toughest environments. These corrosion resistant units are constructed from stainless steel and are hermetically sealed to prevent crystal fogging. The bimetal element directly drives pointer, eliminating gears and linkage. An external reset screw allows field calibration and easy-to-read aluminum dial minimizes parallax error. Choose back connection, lower connection or adjustable angle for easy viewing and installation. Adjustable models can be rotated a full 360° and tilted over a 180° arc. NOTE: When using in pressurized applications, use a suitable thermowell.

Product Applications

Chiller or boiler water temperature monitoring
Treatment plant temperature monitoring

Hermetically sealed
Adjustable dial position models

Specifications

Series: BT BIMETAL THERMOMETER
Category/Type: Temperature
Type: Thermometers
Series: BT BIMETAL THERMOMETER
Wetted Materials: 304 SS.
Housing Material: Series 300 SS.
Lens: Glass.
Accuracy: ±1% FS.
Response Time: ≤40 s.
Temperature Limits: Head: 200°F (93°C); Stem: Not to exceed 50% over-range or 1000°F (538°C) or 800°F (427°C) continuously.
Process Connection: 1/4" NPT on 2" dial size; 1/2" NPT on 3" or 5" dial size.
Stem Diameter: 1/4" O.D.
Immersion Depth: Minimum 2" in liquids; 4" in gas.
