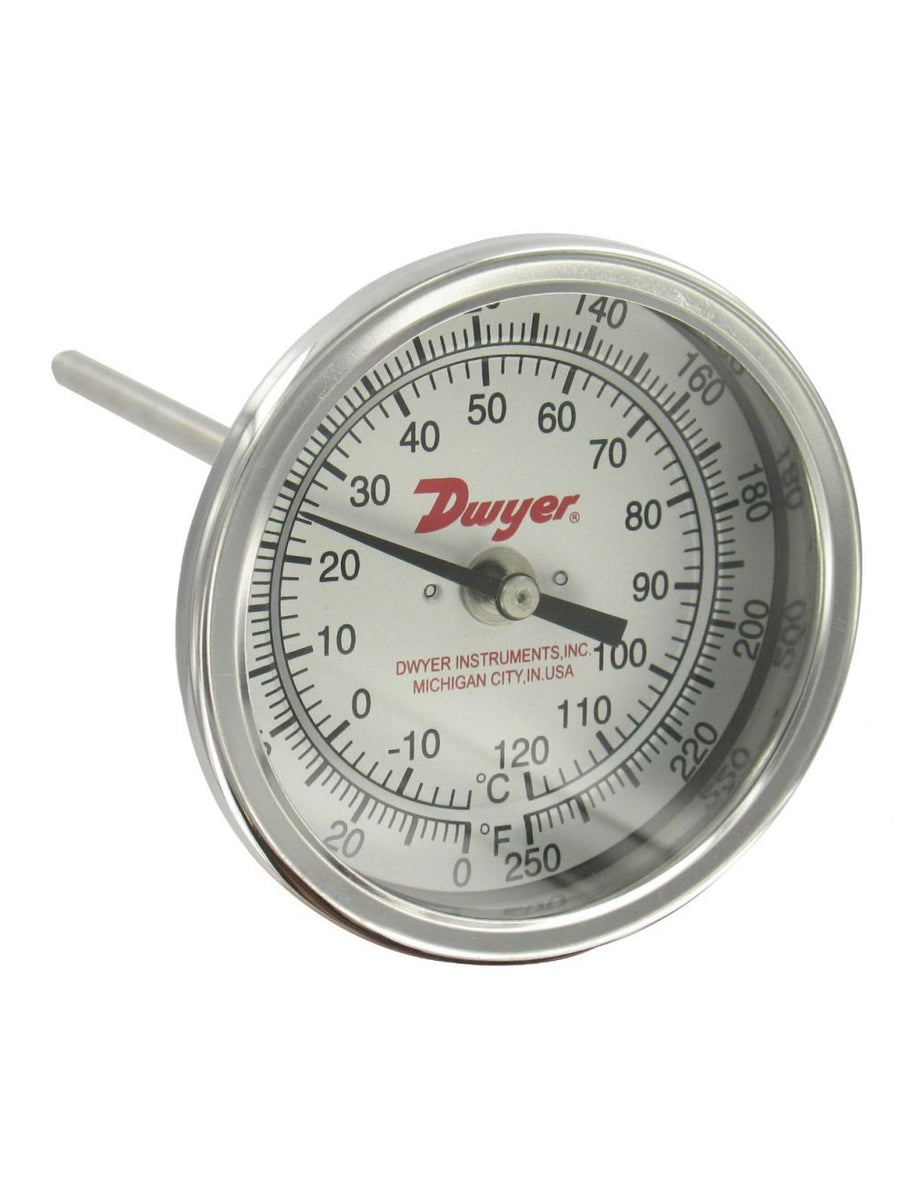

BTA5605D | Bimetal thermometer | 5" dial | 6" stem length | range 0/250°F (-20/120°C) | 2°F (2°C) div. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BTA5605D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BTA5605D Documents

Series BT Catalog Page More Info

Overview

Details for BTA5605D

The Dwyer Instruments BTA5605D is a pressure gauge designed for industrial applications. It features a 2-1/2-inch gauge with a 316 stainless steel case for durability and a brass movement for corrosion resistance. The BTA5605D has a 0-300 psi pressure range and a 1/4-inch NPT male connection. It also includes a rubber bumper to protect the gauge from impact. The Dwyer Instruments BTA5605D is a reliable and accurate pressure gauge for a wide range of industrial applications. Our HVAC supply store has the best prices and fastest shipping of the BTA5605D. Order yours today

SERIES BT BIMETAL THERMOMETER

2", 3" or 5" Dial, Dual Scale, ±1% FS Accuracy, External Reset

The Series BT Bimetal Thermometers offer accurate, reliable service even in the toughest environments. These corrosion resistant units are constructed from stainless steel and are hermetically sealed to prevent crystal fogging. The bimetal element directly drives pointer, eliminating gears and linkage. An external reset screw allows field calibration and easy-to-read aluminum dial minimizes parallax error. Choose back connection, lower connection or adjustable angle for easy viewing and installation. Adjustable models can be rotated a full 360° and tilted over a 180° arc. NOTE: When using in pressurized applications, use a suitable thermowell.

Product Applications

Chiller or boiler water temperature monitoring
Treatment plant temperature monitoring

Hermetically sealed
Adjustable dial position models

Specifications

Series: BT BIMETAL THERMOMETER
Category/Type: Temperature
Type: Thermometers
Series: BT BIMETAL THERMOMETER
Wetted Materials: 304 SS.
Housing Material: Series 300 SS.
Lens: Glass.
Accuracy: ±1% FS.
Response Time: ≤40 s.
Temperature Limits: Head: 200°F (93°C); Stem: Not to exceed 50% over-range or 1000°F (538°C) or 800°F (427°C) continuously.
Process Connection: 1/4" NPT on 2" dial size; 1/2" NPT on 3" or 5" dial size.
Stem Diameter: 1/4" O.D.
Immersion Depth: Minimum 2" in liquids; 4" in gas.
