BDG-01 | Brass digital pressure gage | range 0 to 150 psig | 10.342 Bar | 1.034 mPa and 10.545 kg/cm2. | Dwyer Instruments

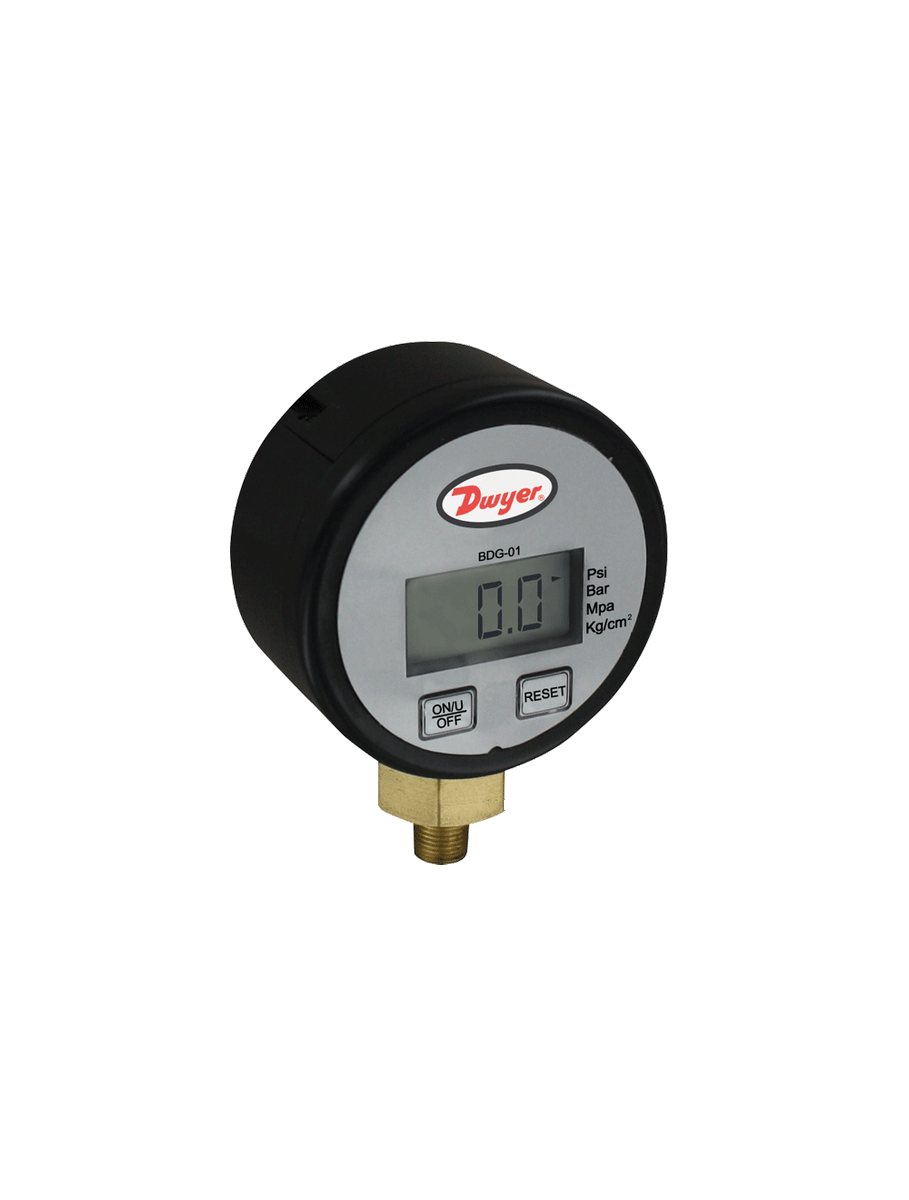

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BDG-01

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BDG-01 Documents

Instruction Manual Model BDG-01 Catalog Page More Info

Overview

Details for BDG-01

Dwyer Instruments BDG-01 BRASS DIGITAL GAGE The Dwyer Instruments BDG-01 is a rugged, reliable, and versatile digital pressure gauge that is ideal for industrial applications. With its compact design, 1% accuracy, and wide pressure range, the BDG-01 is the perfect tool for measuring and monitoring pressure in air, gas, and liquid systems. This digital pressure gauge features a bright, easy-to-read LED display that shows both the current pressure reading and the minimum and maximum pressure readings. The BDG-01 also has a built-in 4-button keypad that allows you to easily navigate through the gauge's menu and select the desired units of measurement. The Dwyer Instruments BDG-01 is a durable and reliable digital pressure gauge that is built to withstand the harsh conditions of industrial environments. Its rugged construction and corrosion-resistant materials make it ideal for use in a variety of applications, including: * Monitoring pressure in air compressors and vacuum systems * Testing the pressure of hydraulic and pneumatic systems * Measuring the pressure of gases and liquids in pipelines and vessels Shop our HVAC supply store for the best prices and fast shipping on the Dwyer Instruments BDG-01 BRASS DIGITAL GAGE!

MODEL BDG-01 BRASS DIGITAL PRESSURE GAGE

±0.5% FS Accuracy, Brass Wetted Parts

The Model BDG-01 Brass Digital Pressure Gage measures gas pressure with ± 0.5%of full-scale accuracy at an affordable price. With brass wetted material, the series BDG is designed for your specific applications of compatible gases. Its design allows for easy installation. User-selectable units of measure let one gage be used for various pressure scales.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Pneumatic
Draft measurement
Filter monitoring
Industrial
Outdoor
HVAC roof-top
Flow

Brass wetted materials for use with compatible gases
Backlit display provides easy viewing of gage measurement
Selectable units provide readings in easily recognizable units for user
Well-suited gage for application designs specifying simple operation and accuracy
Rugged weatherproof enclosure enables a range of use outdoor or indoor wherewater is present

Specifications

Service: Compatible gases.
Wetted Materials: Brass and silicone sensor.
Housing Materials: ABS plastic.
Accuracy: ±0.5% FS.
Long Term Stability: ±0.05% FS per year.
Pressure Limits: 2X pressure range; Burst pressure: 3X pressure range.
Enclosure Rating: IP10.
Temperature Limits: 14 to 140°F (- 10 to 60°C).
Thermal Effect: ±0.04% FS per °C.
Size: 2.5" OD.
Process Connection: 1/4" male NPT.
Display: 4-digit LCD (1-1/4 x 5/8").
Power Requirements: 3 V CR123A lithium metal battery; installed functional; user replaceable.
Battery Life: 2 to 3 years typ.
Weight: 0.29 lb (0.13 kg).
