BBV-1F | Flanged 3-valve block manifold. | Dwyer Instruments

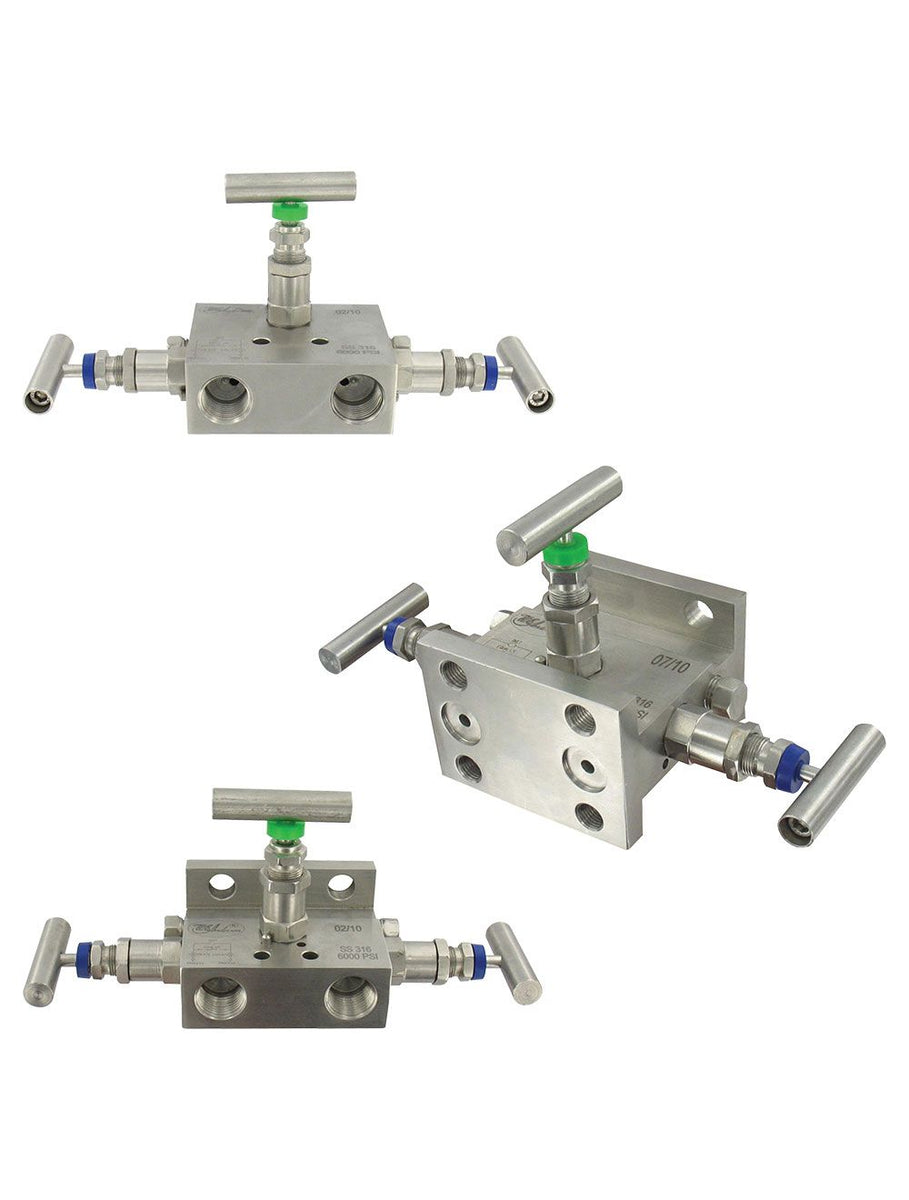

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BBV-1F

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BBV-1F Documents

Instruction Manual Series BBV-1 Catalog Page More Info

Overview

Details for BBV-1F

Dwyer Instruments BBV-1F Flanged 3-Valve Block Manifold The BBV-1F Flanged 3-Valve Block Manifold from Dwyer Instruments is designed for use in various industrial and commercial applications. It features flanged connections for secure and reliable installation. This manifold is constructed of durable materials to withstand harsh environments and provide long-lasting performance. The three valves allow for precise control and isolation of fluid flow, making it suitable for various process applications. Technical Specifications: - Flanged connections for secure installation - Three valves for precise flow control and isolation - Durable construction for harsh environments - Suitable for various industrial and commercial applications our HVAC supply store offers the BBV-1F Flanged 3-Valve Block Manifold at the best prices with fast shipping. Our team of experts is available to assist you with your selection and provide technical support. Trust our HVAC supply store for your industrial and commercial supply needs!

Series BBV-1 3-Valve Block Manifold

Stainless Steel Body, NPT Connections

Series BBV-1 Block Manifold can be used over a broad range of industrial applications including oil refineries, nuclear power stations, petrochemical processing, and more. The Series BBV-1 body is forged from 316 stainless steel bar stock and designed to withstand repeated open and close operations. Suited to control oil, water, toxic fluids, chemicals, air, and steam; the 3-valve block manifold has (2) isolate and (1) equalizing valves. Each valve stem is precision machined with hard seats to reduce operating torque.

The flanged model is designed to mount to an industrial differential pressure transmitter. The BBV-1F comes with four 7/16-20 UNF mounting bolts and two PTFE gaskets, and the BBV-1D comes with eight 7/16-26 UNF mounting bolts and four PTFE gaskets.

Specifications

Series: BBV-1 3-Valve Block Manifold
Category/Type: Valves
Type: Valves
Valve Type: Manifold
Series: BBV-1 3-Valve Block Manifold
Service: Compatible liquids; gases; or steam.
End Connections: Process Connection: No flange: 1/2" female NPT; Flange: DIN 19213 flange; Instrument Connection: No flange: 1/2" female NPT; Flange: DIN19213 flange; Vent/Test: 1/4" female NPT.
Wetted Materials: Body; stem; valve assembly: 316 SS; Stem packing: PTFE.
Pressure Limit: 6000 psi (400 bar).
Temperature Limit: 464°F (240°C).
Other Material: Handle: 304 SS.
