BBV-0N | 2-valve block manifold | Dwyer Instruments

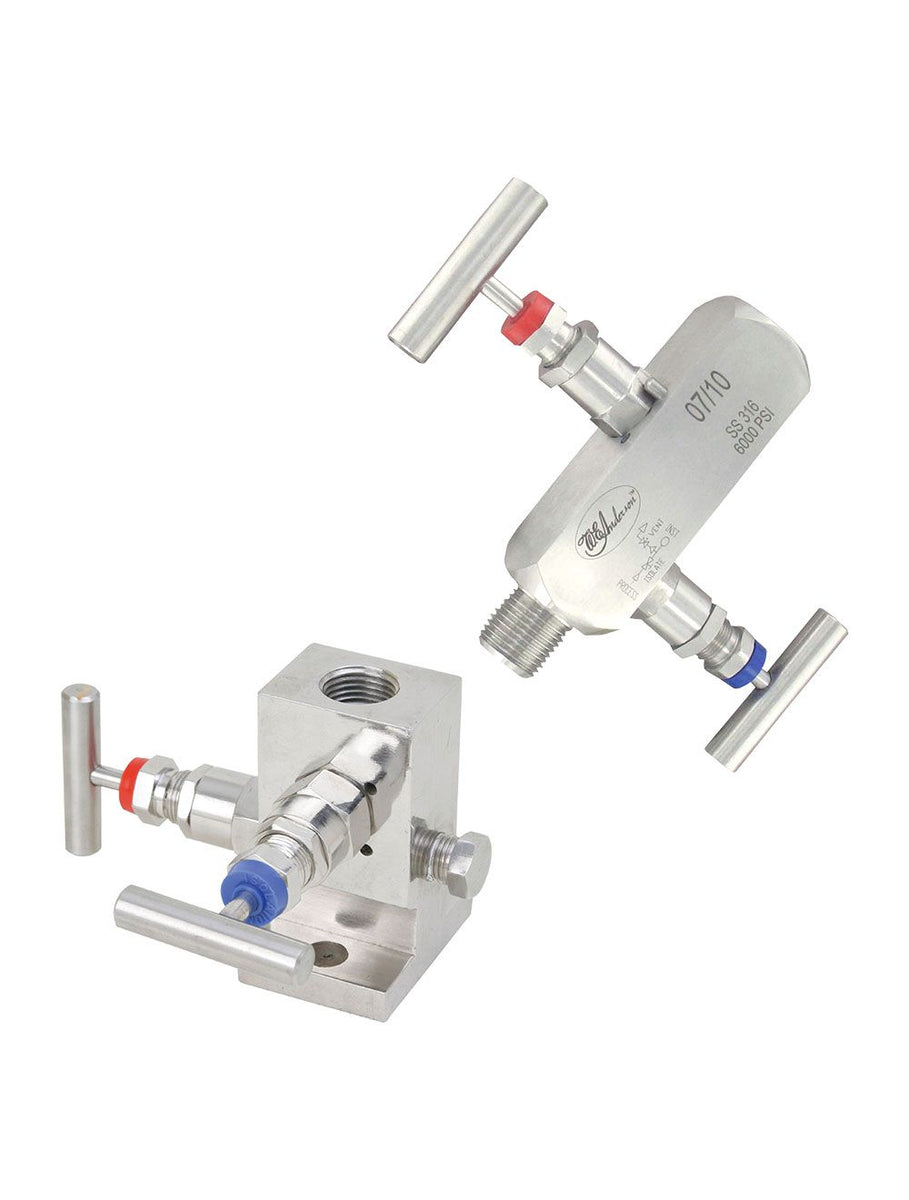

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BBV-0N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments BBV-0N Documents

Instruction Manual Series BBV-0 Catalog Page More Info

Overview

Details for BBV-0N

BBV-0N Compact Digital Manometer by Dwyer InstrumentsThe Dwyer Instruments BBV-0N is a compact and easy-to-use digital manometer that measures air pressure. It features a 3-digit LCD display and a 1/8" NPT pressure connection. The BBV-0N is ideal for measuring air pressure in industrial, commercial, and HVAC applications. Technical Specifications: Measuring Range: 0-50 psi Overpressure: 100 psi Accuracy: +/- 2% of reading Resolution: 0.1 psi Display Type: 3-digit LCD Power Supply: 9V battery Features: Compact and lightweight design Easy-to-use interface 1/8" NPT pressure connection Measures air pressure Perfect for industrial, commercial, and HVAC applications Shop our HVAC supply store now! We offer the best prices and fast shipping for your products!

Series BBV-0 2-Valve Block Manifold

Stainless Steel Body, NPT Connections

The Series BBV-0 2-Valve Block Manifold is perfect for use over a broad range of industrial applications including oil refineries, nuclear power stations, petrochemical processing, and more. The Series BBV-0 is forged from 316 stainless steel bar stock and designed to withstand repeated open and close operations. Suited to control oil, water, toxic fluids, chemicals, air, and steam; the 2-valve block manifold has (1) isolate and (1) vent valves. Each valve stem is precision machined with hard seats to reduce operating torque. The BBV-0F and BBV-0N are designed to mount directly to industrial pressure transmitters. The BBV-0F comes with two 7/16-20 UNF mounting bolts and one PTFE gasket.

Product Applications

Industrial gage or transmitter isolation

6000 psi pressure limit
316 SS body, stem and valve assembly
PTFE stem packing

Specifications

Series: BBV-0 2-Valve Block Manifold
Category/Type: Valves
Type: Valves
Valve Type: Manifold
Series: BBV-0 2-Valve Block Manifold
Service: Compatible liquids; gases; or steam.
End Connections: Process connection: 1/2" male NPT;Instrument connection:No flange: 1/2" female NPT;Flange: 1/2" DIN 19213 flange;Vent/test: 1/4" female NPT.
Wetted Materials: Body; stem; valve assembly: 316 SS;Stem packing: PTFE.
Pressure Limit: 6000 psi (400 bar).
Temperature Limit: 464°F (240°C).
Other Materials Handle:: 304 SS.
