BBU-24-MOD | Battery Backup Retrofit Kit | Bray Commercial

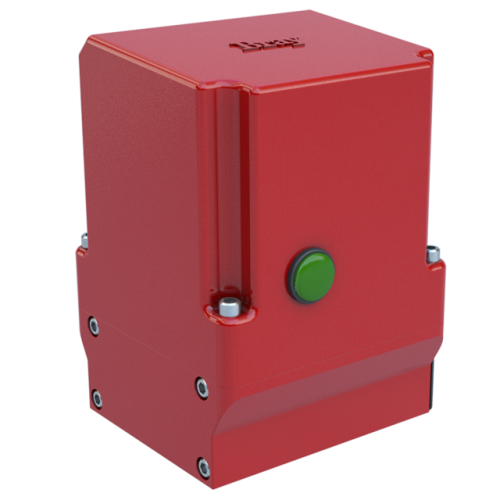

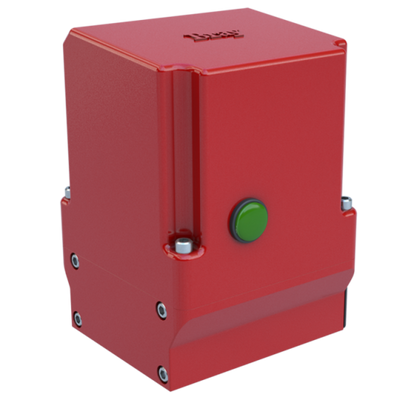

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BBU-24-MOD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial BBU-24-MOD Documents

Bray BBU Battery Backup Submittal More Info

Overview

Details for BBU-24-MOD

UNIV BATTERY BU TOP ASSY The Bray Commercial BBU-24-MOD is a battery backup unit designed for commercial applications. It features a 24-hour battery life and a variety of output options, making it ideal for powering critical equipment in the event of a power outage. The BBU-24-MOD is housed in a durable steel enclosure and is equipped with a variety of safety features, including over-voltage, over-current, and short-circuit protection. It is also backed by a one-year warranty. Key Features: * 24-hour battery life * Variety of output options * Durable steel enclosure * Variety of safety features * One-year warranty Benefits: * Ensures critical equipment remains powered during outages * Protects against damage from power surges and fluctuations * Easy to install and maintain * Provides peace of mind knowing your equipment is protected Applications: * Data centers * Hospitals * Industrial facilities * Security systems * Retail stores Our HVAC supply store offers the best prices and fast shipping on the Bray Commercial BBU-24-MOD battery backup unit. Contact us today to learn more.

Description:

Bray BBU-24-MOD Battery Backup Retrofit Kit:

- 24 VAC.

- Unmounted.

- For Servo's rated Rev. J or later (servo NOT included)

- Fits Series 70 actuator 600-5000 In-Lb models.

- NEMA 4 enclosure.

The Battery Backup BBU option for the Bray Series 70 24VAC actuators provides a convenient and cost effective solution to provide return of the valve or damper to a user-selectable position upon loss of supply power. The BBU is available for both On/Off and modulating actuators. The advanced circuitry of the BBU continuously monitors battery strength and provides a visual indication (LED) and remote indication (via dry contact). The BBU is housed in sturdy die cast aluminum NEMA 4x (IP 65) enclosure.

Battery Backup Operation: In the normal mode of operation with power supplied to the actuator, the batteries maintain a charge and are in an offline mode. The power applied to the motor is from the power supply, not the batteries. When a power loss occurs, the BBU pauses for 5 seconds and then reads the “Open/Close” fail position switch setting. The BBU circuitry applies the stored power in the batteries to move the valve or damper to the full open or full closed position designated by the user. The actuator remains in this position until external power is restored to the unit. For two position (on/off units), and modulating units, the BBU board automatically detects when the actuator has reached the desired position and then disconnects the battery power from the motor.
