AVU-3-V | Air velocity transmitter | range 0-3150 FPM (0-16 m/s) | 0-10 VDC output | 5% accuracy. | Dwyer Instruments (OBSOLETE)

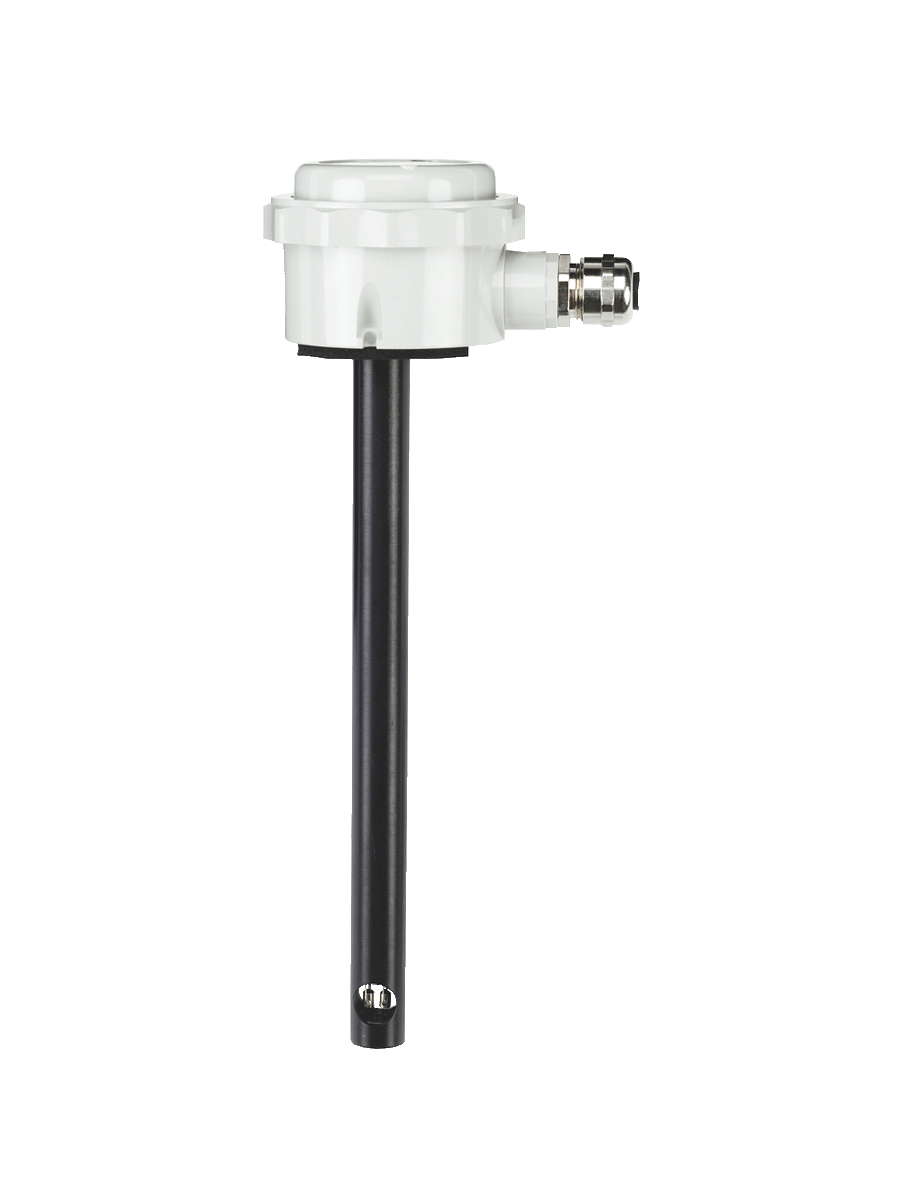

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AVU-3-V

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments AVU-3-V Documents

AVU AVUB Series AVU Catalog Page More Info

Overview

Details for AVU-3-V

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS The Dwyer Instruments AVU-3-V Air Velocity Transmitter is a highly accurate and reliable device designed to measure air velocity in various industrial and commercial applications. Its rugged construction and durable design ensure long-lasting performance even in harsh environments. Key Features: * Measures air velocity from 0 to 5,000 feet per minute (FPM) * Field-selectable units of measurement: FPM, meters per second (m/s), miles per hour (MPH), and kilometers per hour (km/h) * 4-20 mA analog output for easy integration with data acquisition systems * NEMA 4X (IP66) rated enclosure for indoor and outdoor use * Backlit LCD display for clear readings in low-light conditions * Wall- or duct-mountable for flexible installation Applications: * HVAC systems optimization * Industrial ventilation monitoring * Cleanroom air quality control * Airflow measurement in laboratories and research facilities Our HVAC supply store offers the best prices and fast shipping for the Dwyer Instruments AVU-3-V Air Velocity Transmitter. Trust us to provide the highest quality products and exceptional customer service for your industrial needs. Shop now!

SERIES AVU AIR VELOCITY TRANSMITTER

Ideal for Building Automation Systems, ±5% or ±8% Full-Scale Accuracy

The Series AVU Air Velocity Transmitter is ideal for a wide range of HVAC measurement and control applications, particularly in complete building control and energy management systems. The Series AVU Transmitter operates by measuring the heat loss from one of the two sensing elements in the air stream, then calculating the air velocity. Units are virtually immune to drift due to the design of the sensing element, which makes the transmitter accurate over the whole air velocity range.

Product Applications

Supply and exhaust fan tracking
Clean room systems
Air pollution studies and manufacturing
Zone control in HVAC systems

4 to 20 mA or 0 to 10 V output versions
NEMA 6 (IP67) enclosure rating
AC or DC powered (loop version DC only)
5% or 8% accuracy

Specifications

Series: AVU AIR VELOCITY TRANSMITTER
Category/Type: Air Quality
Type: Air Velocity Transmitters
Series: AVU AIR VELOCITY TRANSMITTER
Service: Clean air and compatible; non-combustible gases.
Accuracy: AVU: ±5% of FS;AVUB: ±8% of FS.
Response Time (90%): 5 sec (typical).
Temperature Limits: 32 to 122°F (0 to 50°C).
Humidity Limit: 0-90% RH; non-condensing.
Power Requirements: -A models 24 VDC +10% - 15%; -V models 24 VDC or 24 VAC +10% - 15%.
Output Signal: -A models 4 to 20 mA current loop; -V models 0 to 10 VDC.
Loop Resistance: (-A models ) 700 Ω.
Current Consumption: 60 mA + output current.
Maximum Start Up Current: 85 mA; 10 V.
Output Current Limit: (-V models) >10 mA.
Electrical Connections: Screw terminal. Cable gland for 4-8 mm wire (16 gage wire).
Enclosure Rating: NEMA 6 (IP67) except sensing point.
Probe Dimensions: 9.45 x .75" (240 x 19 mm).
Mounting Orientation: Unit not position sensitive. Probe must be aligned with airflow.
Weight: 8.8 oz (250 g).
Agency Approvals: CE.
