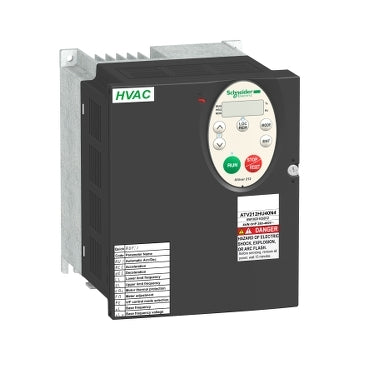

ATV212HU30N4 | Altivar 212 VFD, 4 HP/7.2 amps, 380/480 VAC Three Phase Input/Output, IP20 | Schneider Electric (Square D)

Introducing the Schneider Electric (Square D) ATV212HU30N4 - a 480V Variable Frequency Drive (VFD) designed to control the speed and torque of 5HP motors. This compact and robust VFD is packed with advanced features to meet the demands of industrial engineers and maintenance professionals. The ATV212HU30N4 provides precise speed control, enabling efficient motor operation across a wide range of applications. Its built-in PLC functionality allows for customized programming, simplifying automation tasks. The VFD also features an intuitive user interface that simplifies programming and troubleshooting. With its durable construction, the ATV212HU30N4 is built to withstand harsh industrial environments. It offers a wide range of safety features, including overvoltage, overcurrent, and overtemperature protection, ensuring reliable operation and protecting your connected equipment. Other key specifications include: * Input voltage: 480V, 3-phase * Output voltage: 0-480V, 3-phase * Output frequency: 0-60Hz * Dimensions: 11.81" x 4.53" x 7.09" * Weight: 22 lbs Choose the Schneider Electric (Square D) ATV212HU30N4 VFD for exceptional performance and reliability in your industrial applications. Shop our HVAC supply store today and benefit from our competitive pricing and fast shipping. This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 3kW and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 3.35kg and its dimensions are, 142mm wide, 184mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

device short name

ATV212

product destination

Asynchronous motors

Phase

3 phase

motor power kW

3 kW

Maximum Horse Power Rating

4 hp

supply voltage limits

323…528 V

supply frequency

50...60 Hz - 5...5 %

line current

4.9 A 480 V;6.2 A 380 V

Range of Product

Altivar 212

Product or Component Type

Variable speed drive

Product Specific Application

Pumps and fans in HVAC

communication port protocol

METASYS N2;LonWorks;Modbus;BACnet;APOGEE FLN

[Us] rated supply voltage

380...480 V - 15...10 %

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP21

apparent power

5.5 kVA 380 V

continuous output current

7.2 A 380 V;7.2 A 460 V

maximum transient current

7.9 A 60 s

speed drive output frequency

0.5…200 Hz

speed range

1…10

speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

local signalling

for DC bus energized 1 LED (red)

output voltage

<= power supply voltage

isolation

Electrical between power and control

type of cable

Without mounting kit 1 IEC cable 113 °F (45 °C);copper 90 °C / XLPE/EPR;Without mounting kit 1 IEC cable 113 °F (45 °C);copper 70 °C / PVC;With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C);copper 75 °C / PVC

electrical connection

VIA;VIB;FM;FLA;FLB;FLC;RY;RC;F;R;RES terminal 0.00 in² (2.5 mm²) / AWG 14;L1/R;L2/S;L3/T terminal 0.01 in² (6 mm²) / AWG 10

tightening torque

11.51 lbf.in (1.3 N.m);11.5 lb.in L1/R;L2/S;L3/T);5.31 lbf.in (0.6 N.m) VIA;VIB;FM;FLA;FLB;FLC;RY;RC;F;R;RES)

supply

Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %;<10 A overload and short-circuit protection;Internal supply 24 V DC 21…27 V);<200 A overload and short-circuit protection

sampling duration

2 ms +/- 0.5 ms F discrete;2 ms +/- 0.5 ms R discrete;2 ms +/- 0.5 ms RES discrete;3.5 ms +/- 0.5 ms VIA analog;22 ms +/- 0.5 ms VIB analog

response time

FM 2 ms +/- 0.5 ms analog;FLA;FLC 7 ms +/- 0.5 ms discrete;FLB;FLC 7 ms +/- 0.5 ms discrete;RY;RC 7 ms +/- 0.5 ms discrete

accuracy

+/- 0.6 % VIA) for a temperature variation 60 °C;+/- 0.6 % VIB) for a temperature variation 60 °C;+/- 1 % FM) for a temperature variation 60 °C

linearity error

VIA +/- 0.15 % of maximum value input;VIB +/- 0.15 % of maximum value input;FM +/- 0.2 % output

analogue output type

FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits;FM switch-configurable current 0...20 mA 970 Ohm 10 bits

discrete output type

Configurable relay logic FLA;FLC) NO - 100000 cycles;Configurable relay logic FLB;FLC) NC - 100000 cycles;Configurable relay logic RY;RC) NO - 100000 cycles

minimum switching current

3 mA 24 V DC configurable relay logic

maximum switching current

5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL;R);5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL;R);2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL;R);2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL;R)

discrete input type

F programmable 24 V DC level 1 PLC 4700 Ohm;R programmable 24 V DC level 1 PLC 4700 Ohm;RES programmable 24 V DC level 1 PLC 4700 Ohm

discrete input logic

Positive logic (source) F;R;RES);<= 5 V;>= 11 V;Negative logic (sink) F;R;RES);>= 16 V;<= 10 V

dielectric strength

3535 V DC between earth and power terminals;5092 V DC between control and power terminals

insulation resistance

>= 1 mOhm 500 V DC for 1 minute

frequency resolution

Display unit 0.1 Hz;Analog input 0.024/50 Hz

Communication Service

Write multiple registers (16) 2 words maximum;Read holding registers (03) 2 words maximum;Time out setting from 0.1 to 100 s;Read device identification (43);Monitoring inhibitable;Write single register (06)

option card

Communication card LonWorks

power dissipation in W

137 W

air flow

12416.31 Gal/hr(US) (47 m3/h)

functionality

Mid

specific application

HVAC

Variable speed drive application selection

Building - HVAC Compressor for scroll;Building - HVAC Fan;Building - HVAC Pump

Motor power range AC-3

2.2…3 kW 380…440 V 3 phase;2.2…3 kW 480…500 V 3 phase

motor starter type

Variable speed drive

discrete output number

2

analogue input number

2

analogue input type

VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits;VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits;VIB configurable PTC probe 0...6 probes 1500 Ohm;VIA switch-configurable current 0...20 mA 250 Ohm 10 bits

analogue output number

1

physical interface

2-wire RS 485

Connector Type

1 open style;1 RJ45

Transmission Rate

9600 bps or 19200 bps

transmission frame

RTU

number of addresses

1…247

data format

8 bits;1 stop;odd even or no configurable parity

type of polarization

No impedance

asynchronous motor control profile

Voltage/frequency ratio;2 points;Voltage/frequency ratio;5 points;Voltage/frequency ratio;automatic IR compensation (U/f + automatic Uo);Voltage/frequency ratio - Energy Saving;quadratic U/f;Flux vector control without sensor;standard

torque accuracy

+/- 15 %

transient overtorque

120 % of nominal motor torque +/- 10 % 60 s

acceleration and deceleration ramps

Automatic based on the load;Linear adjustable separately from 0.01 to 3200 s

motor slip compensation

Adjustable;Automatic whatever the load;Not available in voltage/frequency ratio motor control

switching frequency

6...16 kHz adjustable;12...16 kHz with derating factor

nominal switching frequency

12 kHz

braking to standstill

By DC injection

Network Frequency

47.5...63 Hz

prospective line Isc

5 kA

protection type

Overheating protection drive;Thermal power stage drive;Short-circuit between motor phases drive;Input phase breaks drive;Overcurrent between output p
