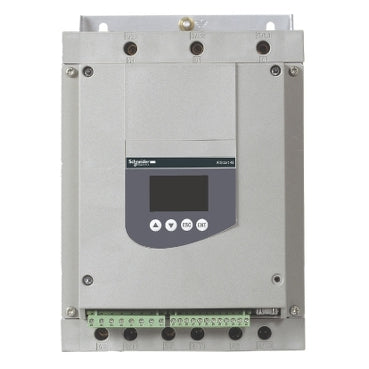

ATS48C11Y | Altistart 48 Soft Start (ATS48), for Asynchronous Motor, 208-690V, 25-100 HP, 22-90 kW, Triple-phase, External Bypass, w/Heat Sink | Schneider Electric (Square D) (OBSOLETE)

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS 110A 208,690V SOFT START: Schneider Electric (Square D) ATS48C11Y The Schneider Electric (Square D) ATS48C11Y is a soft start designed to reduce the inrush current and torque of AC induction motors during starting. It features an adjustable starting time and current limit to optimize the starting process for different motor sizes and loads. The ATS48C11Y is suitable for applications such as pumps, fans, compressors, and conveyors. Key Features: * Reduces inrush current and torque during motor starting * Adjustable starting time and current limit * Protects motors from damage caused by excessive starting currents * Improves power factor and reduces energy consumption * Easy to install and operate Shop our HVAC supply store for the best prices and fast shipping on the Schneider Electric (Square D) ATS48C11Y soft start. We have a wide selection of soft starts, contactors, relays, and other electrical components in stock and ready to ship. This Altistart 48 soft start/soft stop unit is a controller with 6 thyristors used for torque-controlled soft starting and stopping of three-phase asynchronous motors. It offers soft starting and deceleration functions along with machine and motor protection functions, as well as functions for communicating with control systems. It works at a rated supply voltage from 208V to 690V AC and up to 110A rating. Altistart 48 torque control enables starting without mechanical stress and smooth control of hydraulic transitions, with a single acceleration ramp making adjustments is quick and easy, whatever the load. It is suitable for motors with power rating up to 100hp (at 575V) / 90kW (at 690V) for standards applications and 75hp (at 575V) / 75kW (at 690V) for severe applications. It weighs 8.3kg and its dimensions are, 190mm wide, 290mm high, 235mm deep. It is designed for use in the most common applications for centrifugal machines, pumps, fans, compressors and conveyors, which are primarily to be found in the construction, food and beverage and chemical industries. It complies with IEC/EN 60947-4-2 standard and is certified CE, UL, CSA, DNV, C-Tick, GOST, CCC, NOM, SEPRO, and TCF. The Altistart 48 is connected directly to the Modbus bus via its RJ45 connector port, It can also be connected to Ethernet, Fipio, Profibus DP and DeviceNet networks via a module (bridge or gateway) to order separately. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. Altistart 48 delivers high performance with its Torque Control System (TCS) for controlled starting and deceleration, an easy integration in enclosures and control systems. This range provides also continual improvement of your machine operation by reducing mechanical or hydraulic stress and limiting energy loss and temperature rise, plus more.
