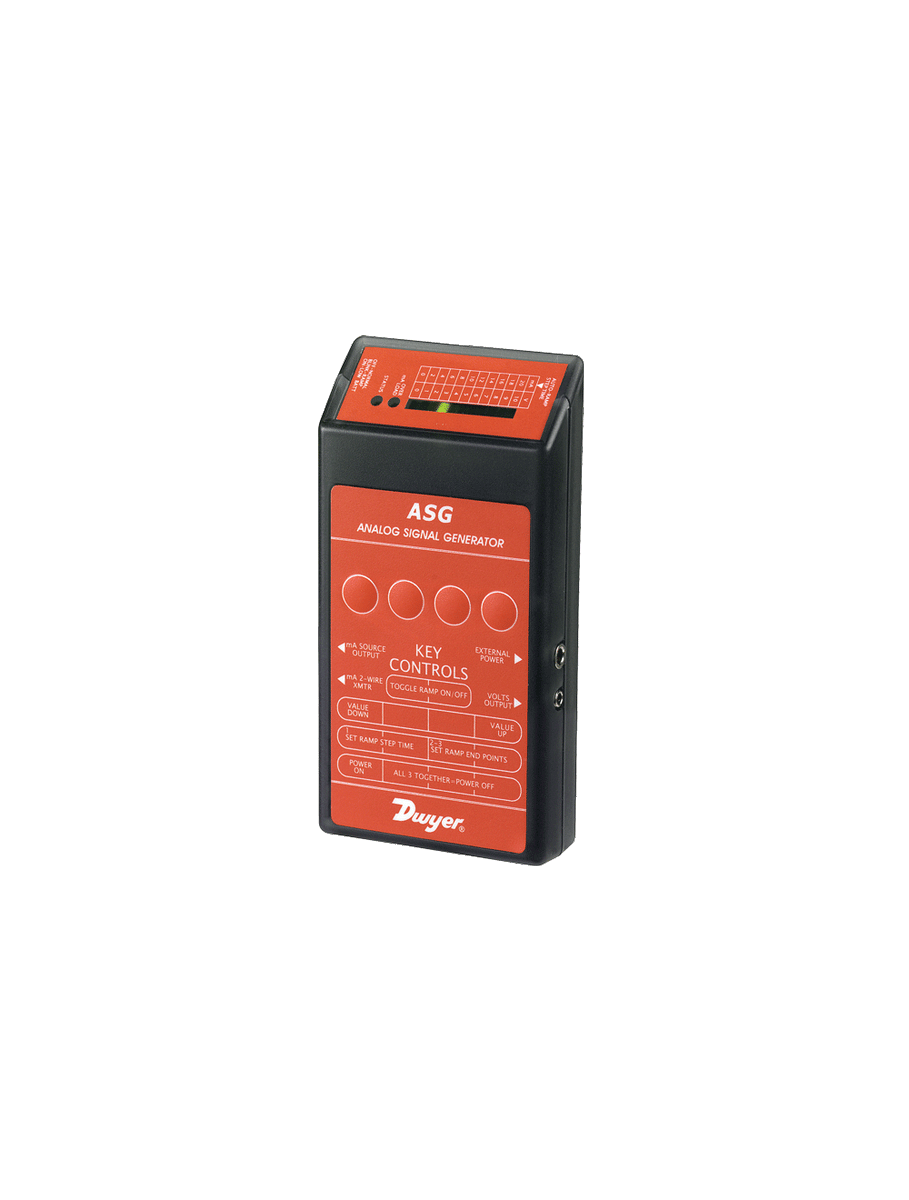

ASG | Analog signal generator. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ASG

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments ASG Documents

IOM Model ASG Catalog Page More Info

Overview

Details for ASG

Dwyer Instruments Analog Signal Generator (ASG) The Dwyer Instruments ASG is an indispensable tool for industrial engineers and maintenance professionals. It generates analog signals to simulate sensors, calibrate instruments, and troubleshoot control systems. Features: * Outputs 0-10V, 4-20mA, or 0-5V signals * Programmable amplitude, frequency, and offset * Easy-to-use interface with LCD display * Rugged construction for industrial applications Benefits: * Simulate sensors to verify system operation * Calibrate instruments to ensure accuracy * Troubleshoot control systems to identify faults * Compact and portable for easy field use Applications: * Process control * Industrial automation * Instrumentation calibration * Maintenance and repair Our HVAC supply store offers the ASG at the best prices with fast shipping. Enhance your toolkit today and optimize your industrial processes with the Dwyer Instruments Analog Signal Generator!

MODEL ASG ANALOG SIGNAL GENERATOR

Ramp Function, Bar Graph LED, Selectable Auto Shut Off

The Model ASG Analog Signal Generator generates a 0-10 VDC signal in increments of 1 V or a 4-20 mA signal in increments of 2 mA. An LED bar graph visually indicates the analog signal level. Model ASG will also continuously ramp to user defined maximum and minimum values with user defined ramp interval timing.

Specifications

Power Requirements: 9 V alkaline battery; installed functional; user replaceable or 120 VAC (provided).
Auto Shutoff Times: 2 to 20 m. (2 m. increments) (6 m. default).
Electrical Connections: 6' (1.8 m) with alligator clips.
Weight: 3.2 oz (without battery).
