APS-150 | PRESSURE SWITCH 2-30PSI | Dwyer Instruments

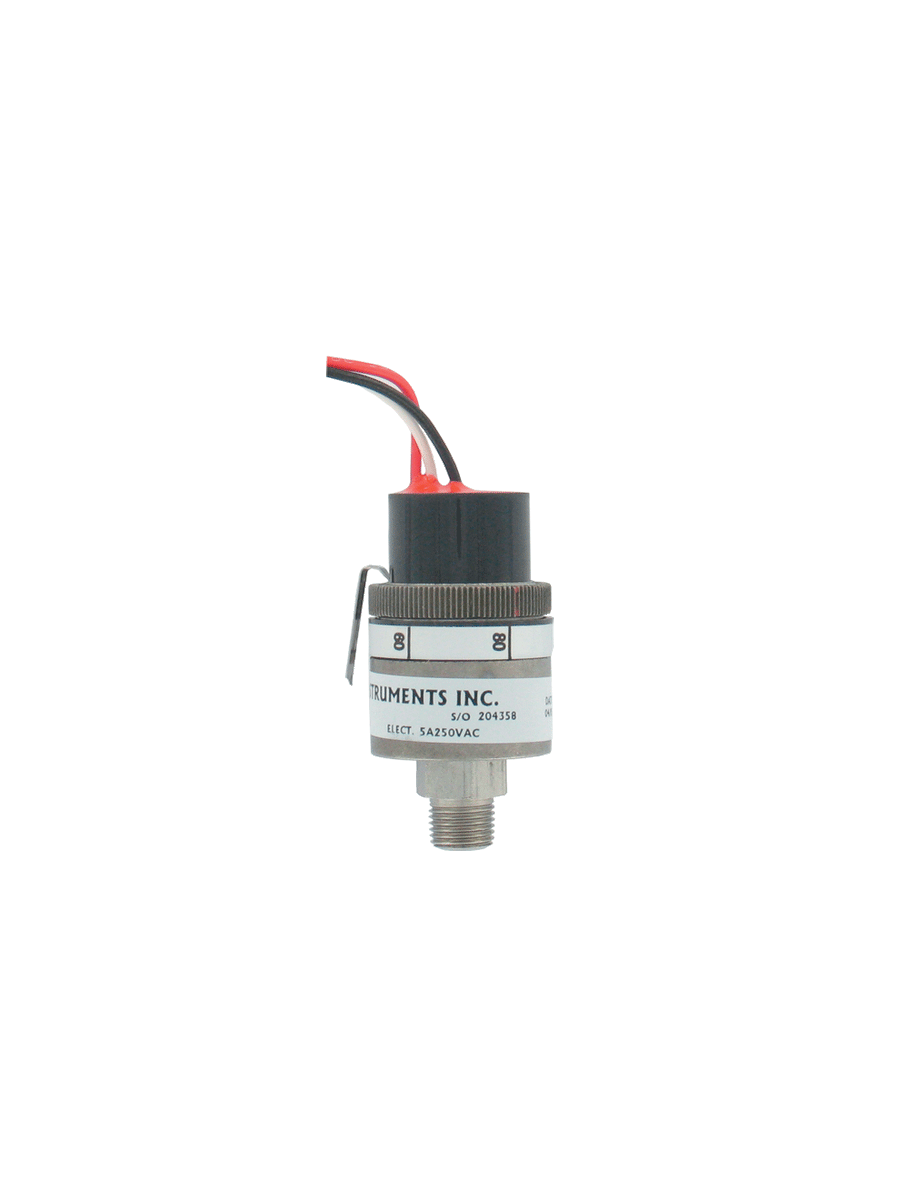

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to APS-150

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments APS-150 Documents

APS/AVS Series APS/AVS Catalog Page APS/AVS More Info

Overview

Details for APS-150

The Dwyer Instruments APS-150 is a robust and reliable pressure switch designed to meet the demands of industrial applications. With a pressure range of 2-30 psi, it provides accurate and reliable pressure monitoring. Its rugged construction ensures longevity even in harsh environments. The APS-150 is ideal for use in a variety of applications, including process control, fluid level monitoring, and pump control. Features: - Pressure range: 2-30 psi - Electrical rating: 15 amps, 120/240 VAC - SPDT contacts - 1/4" NPT female connection - UL and CSA approved Our HVAC supply store offers the best prices and fast shipping on the Dwyer Instruments APS-150 pressure switch. Contact us today to learn more or place your order.

SERIES APS/AVS ADJUSTABLE PRESSURE SWITCH

Vacuum and Pressure Ranges, 5 A Switch, Compact Size

Miniature Series APS/AVS Adjustable Pressure Switches offer reliable switching for pressure/vacuum alarm, shutdown or control. The units are readily adjustable throughout their range using the locking adjusting ring and indicating pointer. The body is constructed of stainless steel for durability in harsh environments. Switches include 12" (30 cm) wire leads sealed with epoxy for additional protection.

Product Applications

OEM
Compressors
Motor control
Process equipment
Pump control

Field adjustable with simple indicating pointer reduces installation time bringingapplication on-line faster
Stainless steel construction provides a durable solution in harsh environments

Specifications

Series: APS/AVS ADJUSTABLE PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: APS/AVS ADJUSTABLE PRESSURE SWITCH
Service: Compatible liquids or gases.
Wetted Materials: Capsule: 17-7 PH SS; Fitting: 303 stainless steel.
Temperature Limits: -65 to 225°F (-54 to 107°C); a set point change of up to 2% when used below -10°F (-23°C) or above 125°F (52°C).
Pressure/Vacuum Limits: 150% of range.
Switch Type: SPDT snap action.
Electrical Ratings: 5 A @ 250 VAC; 3 A @ 28 VDC.
Electrical Connections: 3-wire; 20 AWG insulated with PVC; 12" (30 cm) length.
Process Connection: 1/8" male NPT.
Set Point: Field adjustable.
Cycling: Not to exceed 20 CPM.
Sensor Element: Capsule.
Weight: 3 oz (85 g).
Agency Approvals: UR.
