AP-7021-153-39 | Diaphragm operated pressure switch | range 10-125 psig (.69-8.6 bar) | SPDT snap switch | low deadband 3 psig (0.21 bar) | high deadband 7 psig (0.48 bar) | max. pressure 160 psig (11.0 bar). | Dwyer Instruments

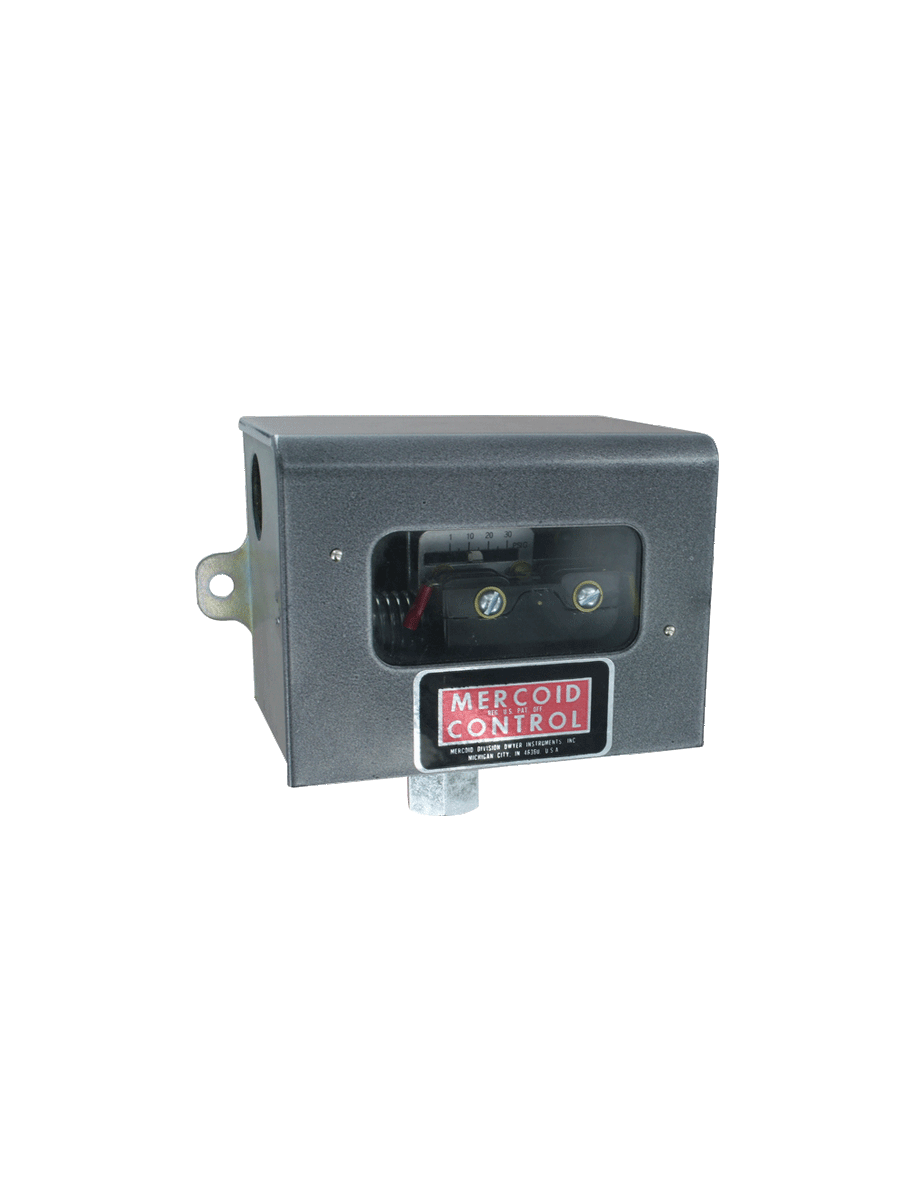

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AP-7021-153-39

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments AP-7021-153-39 Documents

Instruction Manual Series AP Catalog Page More Info

Overview

Details for AP-7021-153-39

PresSwitch 10-125# SPDT-Snap: Versatile and Reliable for Industrial Applications The Dwyer Instruments AP-7021-153-39 PresSwitch is an essential control component for industrial applications. Constructed with precision, it features a 10-125# pressure range and a SPDT (Single Pole Double Throw) snap action for precise and reliable switching. Its robust design and accurate performance make it ideal for a variety of pressure-sensing applications. The AP-7021-153-39 is suitable for use in various industrial settings, including fluid power systems, process control, and automation. It can handle pneumatic and hydraulic fluids, making it a versatile solution for different applications. Its compact size and easy installation allow for seamless integration into existing systems. With its high-quality construction and reliable performance, the AP-7021-153-39 PresSwitch ensures accurate pressure control and monitoring, minimizing downtime and optimizing system efficiency. Trust our HVAC supply store for the best prices and fast shipping on all your industrial supply needs. Don't miss out on this dependable and affordable solution for your pressure-sensing applications.

Series AP Diaphragm Operated Pressure Switch

Visible Setpoint Adjustment, Compact

Reliable and convenient, the Series AP Diaphragm Operated Pressure Switch isa compact switch for instrument air or other low pressure applications. Visible setpoint and external adjustment add convenience. Used on air, non-corrosive gas orliquid service compatible with wetted parts. Units are available in weather-proof andexplosion-proof housing.

Product Applications

Low pressure applications
Instrument air

Explosion-proof and weatherproof housing provides device protection for outdooruse or harsh environment operation
External switch set point adjustment reduces set-up time

Specifications

Series: AP Diaphragm Operated Pressure Switch
Category/Type: Pressure
Type: Single Pressure
Series: AP Diaphragm Operated Pressure Switch
Wetted Materials: Nylon reinforced Buna-N and steel. PTFE and 316 SS optional.
Temperature Limits: -30 to 150°F (-35 to 66°C).
Pressure Limit: See Catalog page.
Enclosure Rating: General purpose. Weatherproof and explosion-proof optional.
Switch Type: SPDT mercury switch or SPDT snap switch. Other switch types available.
Electrical Rating: Mercury switch: 4 A @ 120 VAC/DC; 2 A @ 240 VAC/DC. Snap switch: 15 A @ 120 VAC; 8 A @ 240 VAC; 0.5 A @ 120 VDC; 0.25 A @ 240 VDC.
Electrical Connections: Screw terminal.
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
Process Connection: 1/4" female NPT.
Mounting Orientation: Vertical for mercury switch models; any position for snap switch models.
Set Point Adjustment: External screw.
Weight: General Purpose: 2 lb (0.9 kg).
Deadband: See Catalog page.
Agency Approvals: FM; UL. For FM consult factory.
