Brand: Dwyer InstrumentsSKU: AP-7021-153-33

List Price
~~$1,873.00~~

$624.21

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

AP-7021-153-33 | Diaphragm operated pressure switch | range 10" vac-50" w.c. (2.5-12.4 kPa) | SPDT snap switch | low deadband 8" w.c. (2.0 kPa) | high deadband 10" w.c. (2.49 kPa) | max. pressure 15 psig (1.03 bar). | Dwyer Instruments

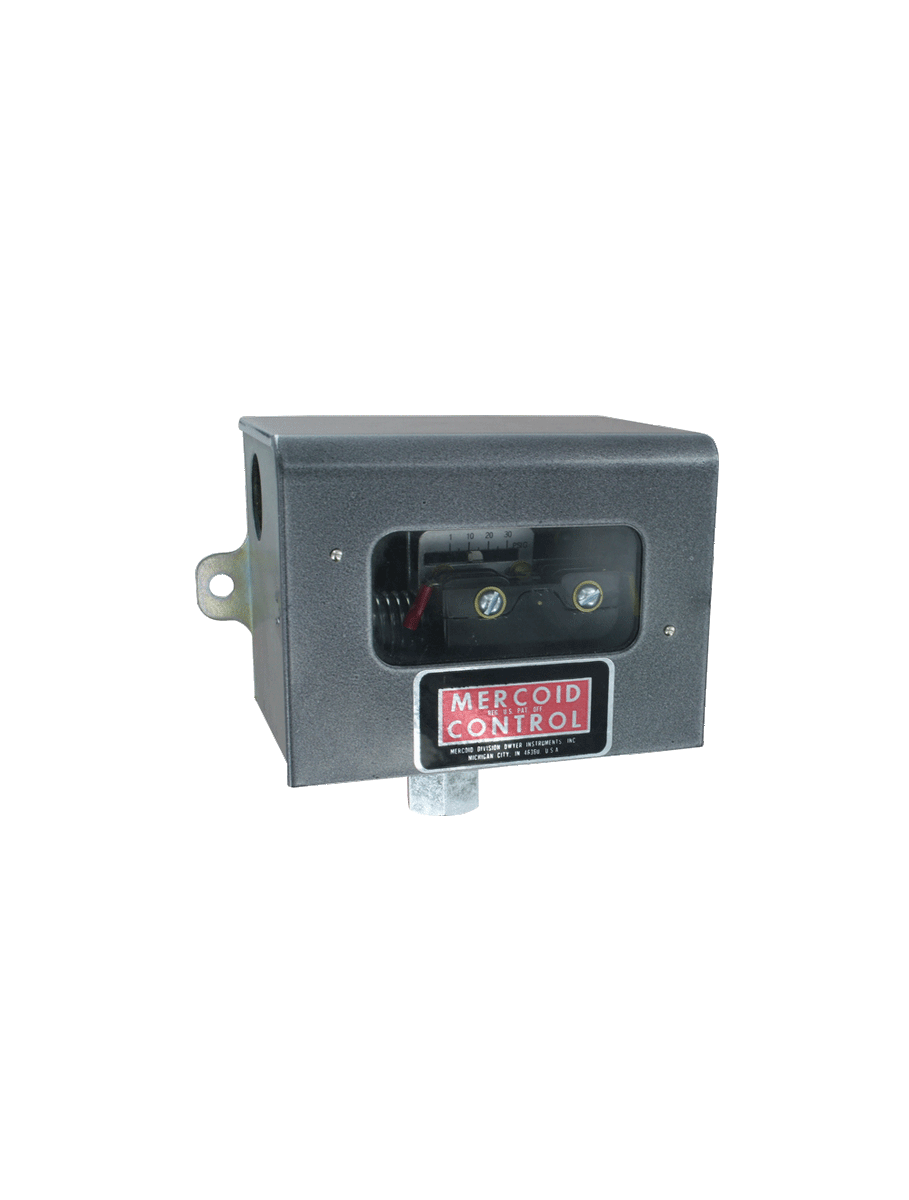

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AP-7021-153-33

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments AP-7021-153-33 Documents

Instruction Manual Series AP Catalog Page More Info

Overview

Details for AP-7021-153-33

Dwyer Instruments AP-7021-153-33 PresSwtch Vacuum Pressure Switch The Dwyer Instruments AP-7021-153-33 PresSwtch Vacuum Pressure Switch is designed for use in vacuum applications ranging from 10"wc to 50"wc. It features a SPDT snap action switch with a pressure range of 10"wc to 50"wc and a maximum pressure of 100"wc. The switch is housed in a durable plastic enclosure and has a 1/4" NPT female connection. Key Features: * Pressure range: 10"wc to 50"wc * Maximum pressure: 100"wc * SPDT snap action switch * 1/4" NPT female connection * Durable plastic enclosure Benefits: * Accurate and reliable pressure measurement * Wide pressure range for various applications * Easy to install and maintain * Durable construction for long-lasting use Applications: * Vacuum systems * Industrial processes * HVAC systems * Medical equipment Order your Dwyer Instruments AP-7021-153-33 PresSwtch Vacuum Pressure Switch today from our HVAC supply store and receive the best prices and fast shipping!

Series AP Diaphragm Operated Pressure Switch

Visible Setpoint Adjustment, Compact

Reliable and convenient, the Series AP Diaphragm Operated Pressure Switch isa compact switch for instrument air or other low pressure applications. Visible setpoint and external adjustment add convenience. Used on air, non-corrosive gas orliquid service compatible with wetted parts. Units are available in weather-proof andexplosion-proof housing.

Product Applications

Low pressure applications
Instrument air

Explosion-proof and weatherproof housing provides device protection for outdooruse or harsh environment operation
External switch set point adjustment reduces set-up time

Specifications

Series: AP Diaphragm Operated Pressure Switch
Category/Type: Pressure
Type: Single Pressure
Series: AP Diaphragm Operated Pressure Switch
Wetted Materials: Nylon reinforced Buna-N and steel. PTFE and 316 SS optional.
Temperature Limits: -30 to 150°F (-35 to 66°C).
Pressure Limit: See Catalog page.
Enclosure Rating: General purpose. Weatherproof and explosion-proof optional.
Switch Type: SPDT mercury switch or SPDT snap switch. Other switch types available.
Electrical Rating: Mercury switch: 4 A @ 120 VAC/DC; 2 A @ 240 VAC/DC. Snap switch: 15 A @ 120 VAC; 8 A @ 240 VAC; 0.5 A @ 120 VDC; 0.25 A @ 240 VDC.
Electrical Connections: Screw terminal.
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
Process Connection: 1/4" female NPT.
Mounting Orientation: Vertical for mercury switch models; any position for snap switch models.
Set Point Adjustment: External screw.
Weight: General Purpose: 2 lb (0.9 kg).
Deadband: See Catalog page.
Agency Approvals: FM; UL. For FM consult factory.
