AN24-2 | Indicating annunciator | four input | with 12 to 36 VDC power supply. | Dwyer Instruments

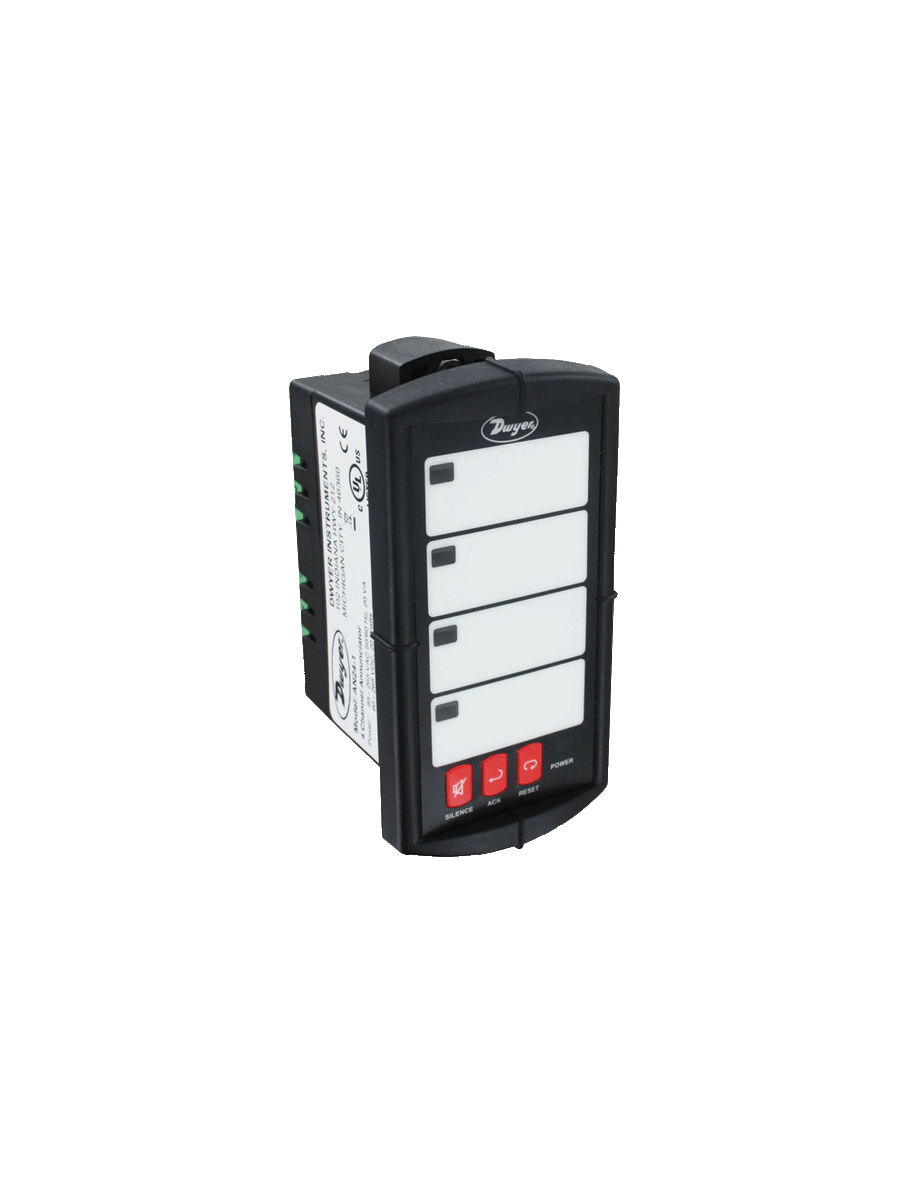

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AN24-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments AN24-2 Documents

AN2 Series AN2 Catalog Page More Info

Overview

Details for AN24-2

The AN24-2 from Dwyer Instruments is an advanced 12-36VDC 4 INPUT ANNUNCIATOR designed for monitoring and controlling critical processes in industrial facilities. It features a rugged construction and high accuracy, making it an ideal choice for demanding applications where reliability and precision are paramount. The AN24-2 offers four isolated analog inputs that can be configured for voltage, current, or temperature measurements. This versatility allows it to monitor a wide range of parameters, including temperature, pressure, flow, and level. The built-in digital display provides clear and real-time readings, while the programmable alarms alert operators to any deviations from set points. Key Features: * 4 isolated analog inputs for voltage, current, or temperature * Programmable alarm set points with visual and audible indications * Rugged construction for harsh industrial environments * High accuracy and reliability for critical applications The AN24-2 is widely used in industrial automation, process control, and monitoring applications. Its versatile design and advanced features make it a valuable asset for maintaining optimal performance and ensuring safety in industrial operations. Shop our HVAC supply store for the best prices and fast shipping on the AN24-2 and all your industrial supply needs!

Series AN2 Indicating Alarm Annunciator

Up to 8 Inputs, Integral Power Supply

The Series AN2 Indicating Alarm Annunciator provides visible and audible alarms for up to eight inputs. The annunciator also has two SPDT relay outputs that can be used to initiate external alarms, buzzers, or paging devices. The Integral 24 VDC power supply can power most level, temperature, pressure, and flow switches. Audible alarm conditions can be acknowledged, reset, or silenced either via the front panel push buttons or the rear terminal block. The Series AN2 can be set to any common ISA sequences including First-Out.

Product Applications

Water and wastewater panels
Tank level monitoring
Temperature monitoring process

Includes integral 24 VDC power supply to power most switches
Can be set to any common ISA sequences

Specifications

Series: AN2 Indicating Alarm Annunciator
freeship
Category/Type: Process Control
Type: Indicating Annunciators
Series: AN2 Indicating Alarm Annunciator
Inputs: NO or NC switches; Open Collector Transistor (Open circuit voltage = 3.3 VDC); Logic Levels: LO = 0 to 0.9 VDC; HI = 2.4 to 28 VDC (100 KΩ input impedance).
Outputs: Two SPDT relay (3 A @ 250 VAC or 30 VDC; resistive; 1/14 HP @ 125/250 VAC; inductive).
Ambient Operating Temperature: -40 to 149ºF (-40 to 65ºC).
Power Requirements: 85 to 265 VAC 50/60 Hz; 90 to 265 VDC; 12 to 36 VDC; 12 to 24 VAC (depending on model).
Power Consumption: 20 W (6 W on low voltage models).
Mounting: 1/8 DIN.
Housing Material: UL rated 94V-0 high impact plastic.
Enclosure Rating: NEMA 4X (IP65) front panel.
Weight: 9.6 oz (272 g).
Agency Approvals: CE; cUL; UL.
