AM100C1070-US-1LF | AM-1 1070 Series | Resideo

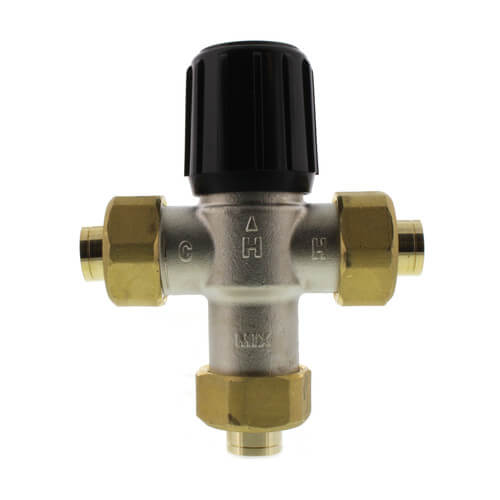

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AM100C1070-US-1LF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Resideo AM100C1070-US-1LF Documents

Datasheet More Info

Overview

Details for AM100C1070-US-1LF

1/2" UNION SWT 70-120FUnion Sweat Fittings are used to connect two pieces of copper pipe. They are made of a durable copper alloy and are available in a wide range of sizes. Union Sweat Fittings are easy to install and can be used in a variety of applications, including plumbing, heating, and cooling. Features: * Made of a durable copper alloy * Available in a wide range of sizes * Easy to install * Can be used in a variety of applications, including plumbing, heating, and cooling Purchase your AM100C1070-US-1LF Union Sweat Fitting today from our HVAC supply store. We offer the best prices and fast shipping on all of our products.

Specifications

Application: Scald prevention in Domestic water; Nursing homes; Public facilities; Automatic faucets; Industrial applications; Photo processing
Maximum Safe Operating Pressure (psi): 150 psi
Maximum Safe Operating Pressure (kPa): 1034 kPa
Comments: Low lead Content <.25% by weighted average
Item Type: Product
Approvals, Canadian Standards Association: CSA Certified
Approvals, Others: NSF/ANSI; IAPMO
Connection Type: Union Sweat
Minimum flow rate (gpm): 0.5 gpm
Pipe Size (inch): 1/2 in.
Pipe Size (DN): DN15
Fluid Temperature (C): Cold Inlet: 4 C to 27 C; Hot Inlet: 49 C to 82 C; Mixed Outlet: 21 C to 49 C
Fluid Temperature (F): Cold Inlet: 39 F to 80 F; Hot Inlet: 120 F to 180 F; Mixed Outlet: 70 F to 120 F
Capacity (Cv): 1.8 Cv
Valve Type: Mixing Valves
Materials (Body): Teflon-Coated, Nickle-Plated Low Lead Brass
Minimum flow rate (lpm): 1.9 lpm
Materials (Packing): EPDM O-rings
Approvals, ASSE: 1017 and 1070
