AFS-460 | AIR FLOW SWITCH; ADJUSTABLE MANUAL RESET | Johnson Controls

AFS-460 Airflow Switch by Johnson Controls The AFS-460 Airflow Switch is an adjustable airflow sensor designed to monitor and control airflow in various HVAC systems. It features a measuring range of 0.4 to 12 inches of water column (WC), providing accurate airflow monitoring and adjustment. Key Features: * Adjustable airflow setpoint * Remote mountable sensor * SPDT switch output * Manual and automatic reset modes Benefits: * Ensures optimal airflow in HVAC systems * Protects equipment from airflow variations * Reduces energy consumption by maintaining proper airflow levels * Easy to install and adjust for various applications Applications: * Airflow monitoring and control in HVAC systems * Fan control in exhaust systems * Airflow measurement in ductwork * Industrial and commercial buildings Technical Specifications: * Measuring Range: 0.4 to 12 inches WC * Accuracy: ±2% FS * Setpoint Adjustment: Manual * Output: SPDT switch * Repeatability: ±0.2% FS * Hysteresis: ±0.1% FS Contact our HVAC supply store today for the best prices and fast shipping on the AFS-460 Airflow Switch and other Johnson Controls products. We are your trusted supplier for all your industrial and commercial HVAC needs!

Application

The Model AFS-460 is a general purpose proving switch designed to require manual operator reset following actuation. It can be used to sense positive, negative, or differential air pressure in HVAC and Energy Management applications which require operator interface.

Description & Operation

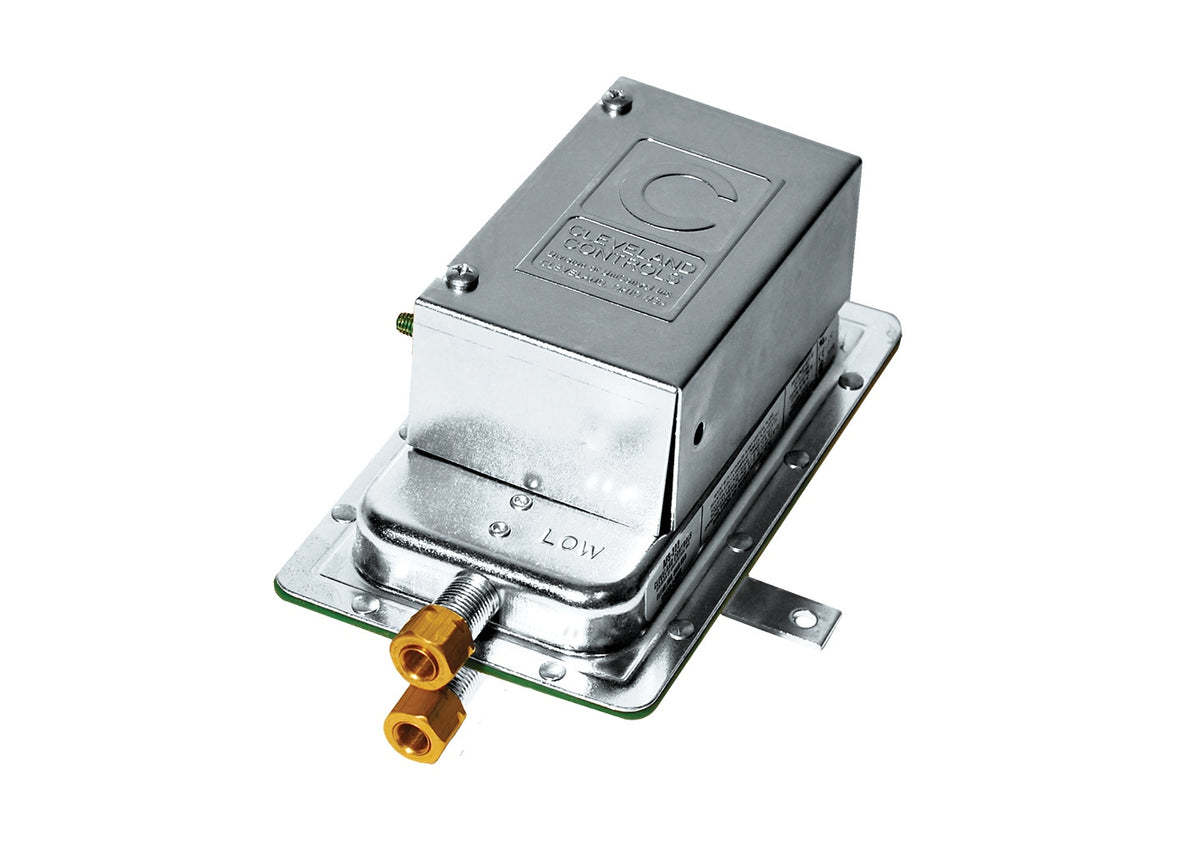

The plated housing contains a diaphragm, a calibration spring and a snap-acting SPST–NC switch with manual reset button. The sample connections located on each side of the diaphragm accept 0.25" OD metallic tubing via the integral compression ferrule and nut. An enclosure cover protects the operator from accidental contact with the live switch terminal screws and the set point adjusting screw. The enclosure cover accepts a 0.5" conduit connection.
