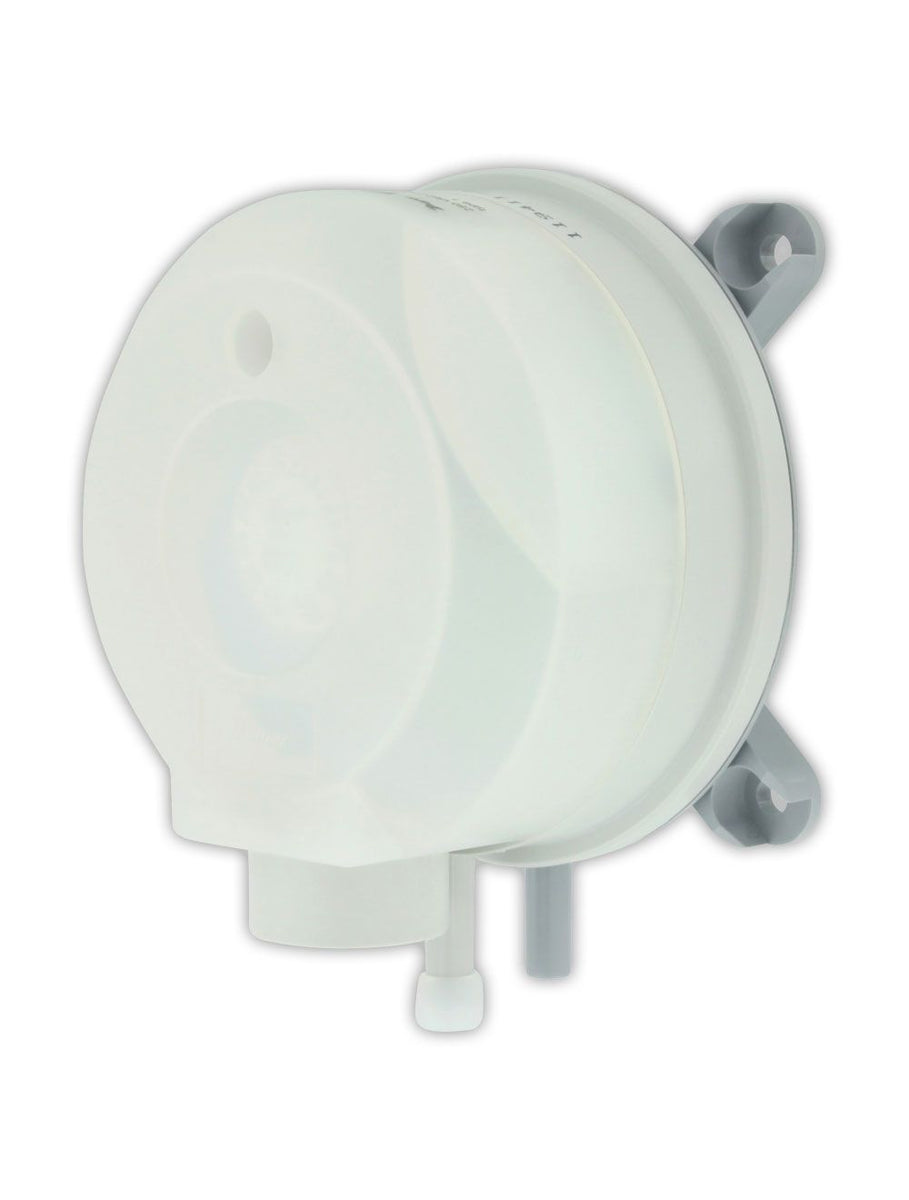

ADPS-05-1-N | Adjustable differential pressure switch | set point range 0.80 to 4.00" w.c. | 1/2" NPT connection. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ADPS-05-1-N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments ADPS-05-1-N Documents

ADPS EDPS Series ADPS/EDPS Catalog Page More Info

Overview

Details for ADPS-05-1-N

Dwyer Instruments ADPS-05-1-N Differential Pressure Switch: Precision Pressure MonitoringThe Dwyer Instruments ADPS-05-1-N Differential Pressure Switch is a high-precision instrument designed to monitor pressure differences between two points. With its adjustable set point ranging from 0.8 to 4 inches of water column (WC), this switch ensures accurate pressure readings within a specific range.Key Features:- Differential pressure measurement range: 0.8 to 4 inches WC - Adjustable set point allows customization to specific requirements - Single-pole, double-throw (SPDT) switch output for versatile control applications - Rugged construction for industrial environments - Compact design for easy installation in limited spacesApplications: The ADPS-05-1-N Differential Pressure Switch is ideally suited for various industrial applications, including: - Monitoring air pressure in HVAC systems - Controlling fluid levels in tanks and reservoirs - Detecting pressure changes in pipelines - Maintaining proper pressure balance in industrial processes By providing precise pressure monitoring and control, the Dwyer Instruments ADPS-05-1-N Differential Pressure Switch helps ensure optimal system performance, enhances safety, and reduces maintenance costs. Contact us at our HVAC supply store for the best prices and fast shipping on all your industrial products!

Series ADPS/EDPS Differential Pressure Switch

With Dual Scale Field Adjustable Set Point Knob

The Series ADPS/EDPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gage. The ADPS/EDPS is available with settings from 0.08 in w.c. (20 Pa) up to 20 in w.c. (5000 Pa). The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases. Series EDPS models meet UL508 and are constructed of plenum rated plastics. The compact size, adjustment knob and low cost make the ADPS/EDPS the perfect choice for HVAC applications.

Please see Series AT-ADPS for ATEX approved.

Product Applications

Monitoring air filters and ventilators.
Monitoring industrial cooling-air circuits.
Overheating protection for fan heaters.
Monitoring flows in ventilation ducts.
Controlling air and fire-protection dampers.
Frost protection for heat exchanges.

Adjustment knob changes switching pressure easily with a pressure gage reducing components for application
Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring
Relay contact allows simple integration with DDC or building systems

Specifications

Series: ADPS/EDPS Differential Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: ADPS/EDPS Differential Pressure Switch
Service: Air and non-combustible; compatible gases.
Wetted Materials: ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene;EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6; Cover: Polystyrene; Materials UL 94 V-0 rated.
Temperature Limits: Process and ambient temperature from -4 to 185°F (-20 to 85°C).
Storage: -40 to 185°F (-40 to 85°C).
Pressure Limits: Max. Operating Pressure: 40" w.c. (10 kPa) for all pressure ranges.
Switch Type: Single-pole double-throw (SPDT).
Electrical Rating: Max. 1.5 A res./0.4 A ind./250 VAC; 50/60 Hz; Max. switchingrate: 6 cycles/min.
Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2" NPT connection.
Process Connections: 5/16" (7.94 mm) outside diameter tubing; 1/4" (6.0 mm) inside diameter tubing.
Enclosure Rating: NEMA 3 (IP54).
Mounting Orientation: Vertically; with pressure connections pointing downwards.
Mechanical Working Life: Over 106 switching operations.
Weight: 4.4 oz (125 g).
Agency Approvals: CE; ETL approved to UL508 and CSA C22.2#14 (EDPS only).
