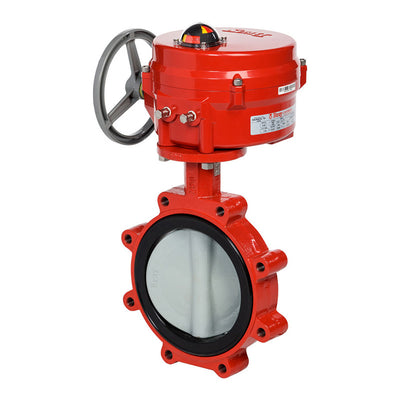

ABL2-C120-70-0501 | 2 Way Butterfly Valve | 12 Inch | 120V Non Spring Return Actuator | Bray Commercial
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ABL2-C120-70-0501
Documents and manuals
Overview
Details for ABL2-C120-70-0501
ABL2-C120-70-0501 12" Lug Butterfly Valve 2-Way 5000 lb. 120V by Bray CommercialBray Commercial ABL2-C120-70-0501 Lug Butterfly Valve is a lightweight, easy to install valve designed for commercial and industrial applications. Constructed from ductile iron and stainless steel, the ABL2-C120-70-0501 valve is corrosion resistant and suitable for use in harsh environments. The valve features a 12" bore size, a 2-way design, and a 5000 lb. pressure rating. It is actuated by a 120V electric actuator, providing reliable and efficient operation. The valve is suitable for controlling the flow of liquids and gases in a wide range of applications, including water treatment, chemical processing, and manufacturing. Our HVAC supply store offers the ABL2-C120-70-0501 Lug Butterfly Valve at the best price with fast shipping.
Resilient seated butterfly valve model ABL2-C120 features:
- 12 inch.
- 300 mm.
Description:
Bray ABL2-C120/70-0501 2 Way Butterfly Valve, 12 Inch, 120V Non Spring Return Actuator.
Bray NY and AB series butterfly valves have been replaced by the all new 3L series located here:
Resilient seated butterfly valve model ABL2-C120 features:
- 12 inch.
- 300 mm.
- 175 PSI close-off.
Factory installed actuator model 70-0501 features:
- 90 degree 8077 Cv.
- 60 degree 2563 Cv.
- 2-way flow.
- 60 degree 2563 Cv.
- 2-way flow.
- Normally closed.
- For use with hot water, chilled water, condenser water, up to 50% glycol solutions.
- Cast iron body.
- Aluminum bronze disc.
- EPDM peroxide cured seat.
- 416 stainless steel stem.
Factory installed actuator model 70-0501 features:
- 120 VAC.
- On/Off.
- NEMA type 4, 4x and IP65 enclosure.
- High visibility beacon position indicator.
- Manual declutchable override hand wheel, pull to engage, push to disengage.
- Auxiliary switch.
- ASTM B85 pressure die cast aluminum housing with polyester powder coat.
- Stainless steel exposed fasteners.
- 2 conduit connections.
- Optional 5 watt PTC style heater.
Bray’s NY and AB series commercial resilient seated butterfly valves set the design standard for quality, reliability and long life in a wide variety of HVAC applications. Specifically designed for automated applications on chilled water, hot water and condenser water, all NY and AB series automated butterfly valves are 100% factory tested for bubble-tight shutoff and low seating/unseating torque.
NY, AB and SS Series valves are available in 2-way configurations to 30" and 3-way configurations to 20”. Actuators include industrial electric, commercial electric, high pressure pneumatic and low pressure pneumatic in both spring return and non spring return variations for on/off and modulating control applications. Differential pressure ratings are available for high close-off (up to 175 PSI) and low close-off (50 PSI) requirements.
Bray Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.
There is no better choice for building automation!
- Actuator Power:120V
- Flow:2 Way
- Return Position:Non-Spring Return
- Valve Size (In.):12
Specifications
| Item Number | ABL2-C120-70-0501 |
| Brand | Bray Commercial |
