ABL2-C060-70-0121 | 2 Way Butterfly Valve | 6 Inch | 120V Non Spring Return Actuator | Bray Commercial

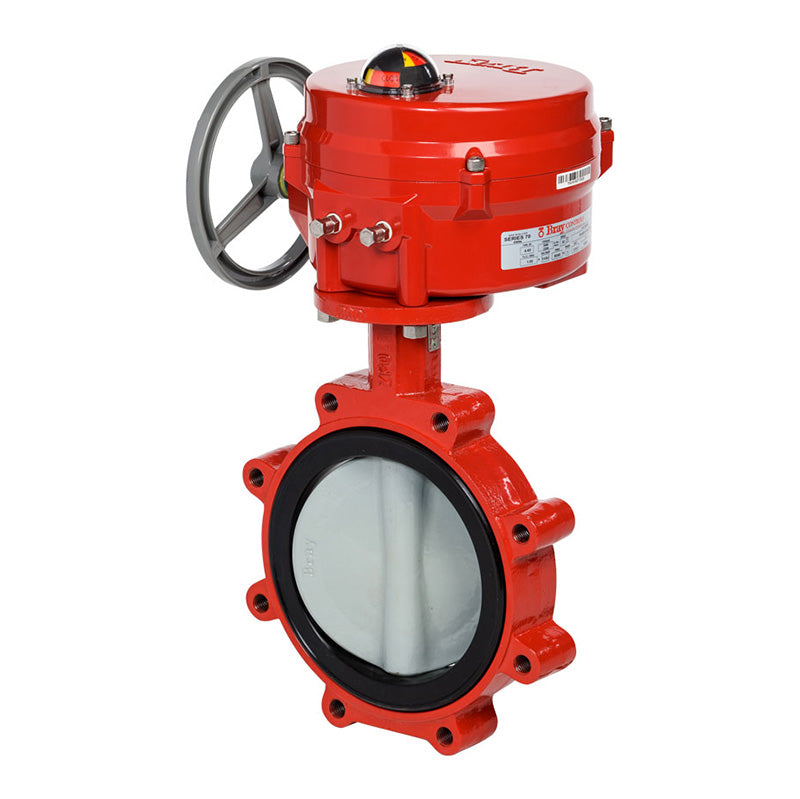

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ABL2-C060-70-0121

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial ABL2-C060-70-0121 Documents

Bray ABL2-C060/70-0121 Catalog Bray ABL2-C060/70-0121 Submittal Bray ABL2-C060/70-0121 Installer's Guide Bray ABL2-C060/70-0121 Specifications Bray 70-0121 Catalog Bray 70-0121 Submittal Bray 70-0121 Installer's Guide Bray 70-0121 Specifications

Overview

Details for ABL2-C060-70-0121

ABL2-C060-70-0121 6" LUG 2W BTRFLY VL W/1200inlb Bray Commercial ABL2-C060-70-0121 is a specialized 6-inch butterfly valve with a 2-way body design. It features a lugged body for secure installation and is engineered with a working pressure of 1200 in-lbs. This valve is ideal for industrial and commercial applications where reliable flow control of liquids or gases is required. The ABL2-C060-70-0121 valve is constructed with high-quality materials for durability and longevity. Its body is made of cast iron, ensuring resistance to corrosion and wear. The valve's seat is made of resilient rubber, providing a tight seal and preventing leakage. Additionally, the valve's disc is made of stainless steel, offering excellent resistance to corrosion and wear, ensuring long-lasting performance. This versatile valve is designed for easy installation and maintenance. Its lugged body allows for direct mounting to piping systems, eliminating the need for additional flanges or adapters. The valve's handle is made of durable metal, providing a comfortable grip for smooth operation. The ABL2-C060-70-0121 valve is suitable for a wide range of applications, including water distribution systems, HVAC systems, and industrial process lines. Its reliable construction and high working pressure make it an excellent choice for demanding applications where precise flow control is crucial. For all your industrial supply needs, choose our HVAC supply store! We offer the best prices and fast shipping on all our products. Contact us today to place your order or for more information on the ABL2-C060-70-0121 butterfly valve.

Description:

Bray ABL2-C060/70-0121 2 Way Butterfly Valve, 6 Inch, 120V Non Spring Return Actuator.

Bray NY and AB series butterfly valves have been replaced by the all new 3L series located here:

Resilient seated butterfly valve model ABL2-C060 features:
- 6 inch.
- 150 mm.

- 175 PSI close-off.

- 90 degree 1850 Cv.
- 60 degree 567 Cv.
- 2-way flow.

- Normally closed.

- For use with hot water, chilled water, condenser water, up to 50% glycol solutions.

- Cast iron body.

- Aluminum bronze disc.

- EPDM peroxide cured seat.

- 416 stainless steel stem.

Factory installed actuator model 70-0121 features:

- 120 VAC.

- On/Off.

- NEMA type 4, 4x and IP65 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

- Optional 5 watt PTC style heater.

Bray’s NY and AB series commercial resilient seated butterfly valves set the design standard for quality, reliability and long life in a wide variety of HVAC applications. Specifically designed for automated applications on chilled water, hot water and condenser water, all NY and AB series automated butterfly valves are 100% factory tested for bubble-tight shutoff and low seating/unseating torque.

NY, AB and SS Series valves are available in 2-way configurations to 30" and 3-way configurations to 20”. Actuators include industrial electric, commercial electric, high pressure pneumatic and low pressure pneumatic in both spring return and non spring return variations for on/off and modulating control applications. Differential pressure ratings are available for high close-off (up to 175 PSI) and low close-off (50 PSI) requirements.

Bray Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

There is no better choice for building automation!

Actuator Power:120V
Flow:2 Way
Return Position:Non-Spring Return
Valve Size (In.):6
