AAFS | Adjustable air flow paddle switch | Dwyer Instruments

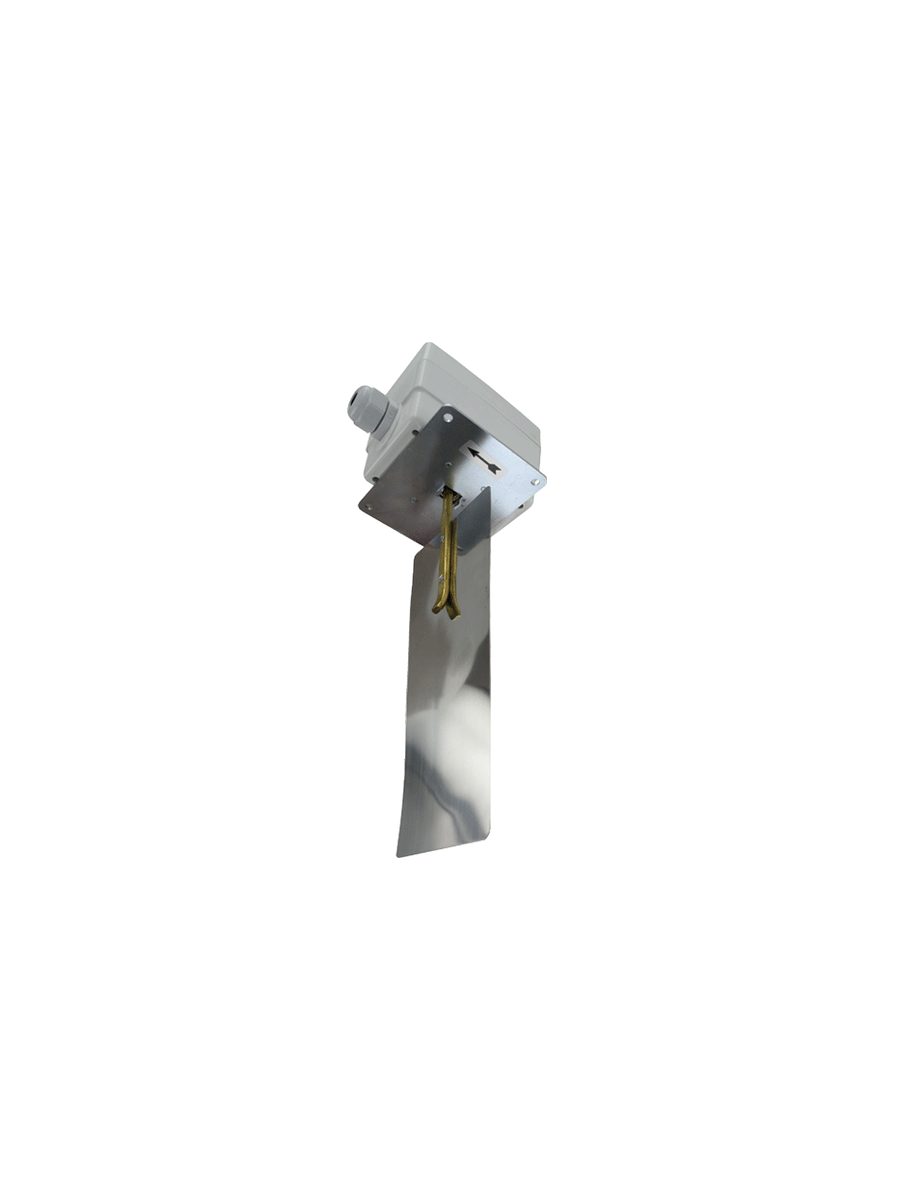

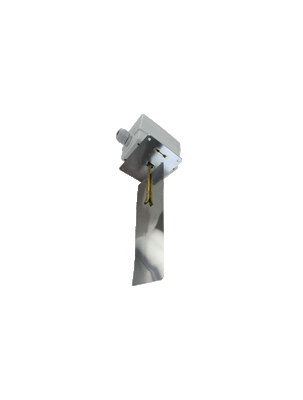

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AAFS

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments AAFS Documents

Instruction Manual Model AAFS Catalog Page More Info

Overview

Details for AAFS

The Dwyer Instruments AAFS Adjustable Air Flow Paddle Switch is an essential tool for industrial engineers and maintenance professionals. It offers precise control of air flow in various applications, ensuring optimal performance and efficiency. The AAFS switch features a rugged construction, making it ideal for demanding industrial environments. Its adjustable setpoint allows for precise customization to meet specific requirements. The switch's paddle design ensures accurate airflow detection, providing reliable and consistent operation. Key Features: * Adjustable setpoint for customized airflow control * Durable construction for harsh industrial environments * Paddle design for accurate airflow detection * Easy installation and maintenance Applications: * Airflow monitoring and control in HVAC systems * Industrial ventilation systems * Air flow measurement and optimization * Process control and automation Choose our HVAC supply store for the best prices and fast shipping on the Dwyer Instruments AAFS Adjustable Air Flow Paddle Switch. Enhance your industrial operations with reliable and efficient airflow control solutions.

Model AAFS Adjustable Air Flow Paddle Switch

Ranges from 200 to 1800 FPM, Stainless Steel Vane, ABS Housing

The Model AAFS Adjustable Air Flow Paddle Switch is capable of detecting a wide range of air velocities with minimal user calibration. Quality features include a stainless steel vane, galvanized steel base, and ABS enclosure.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Air flow proving in HVAC systems

Adjustable air flow sensitivity from 200 to 1800 FPM
High current (15 A) rated SPDT contact
IP65 enclosure rating

Specifications

Service: Air and compatible gas.
Wetted Materials: Vane: SS; Lever: Brass; Base: Galvanized steel.
Housing: ABS.
Temperature Limits: Ambient: -40 to 180°F (-40 to 85°C); Process: -14 to 185°F (-10 to 85°C).
Humidity Limits: 10 to 90%; noncondensing.
Switch Type: SPDT.
Electrical Rating: 15(8) A @ 250 VAC.
Electrical Connection: Screw terminal with M18 x 1.5 cable gland.
Process Connection: Flange.
Mounting Orientation: Horizontal duct flow.
Set Point: Internal screw.
Enclosure Rating: IP65.
Weight: 13.6 oz (380 g).
