A6-653221 | Pressure switch | set point range 25-50 ±5 psi (1.72-3.45 ±0.34 bar). | Dwyer Instruments

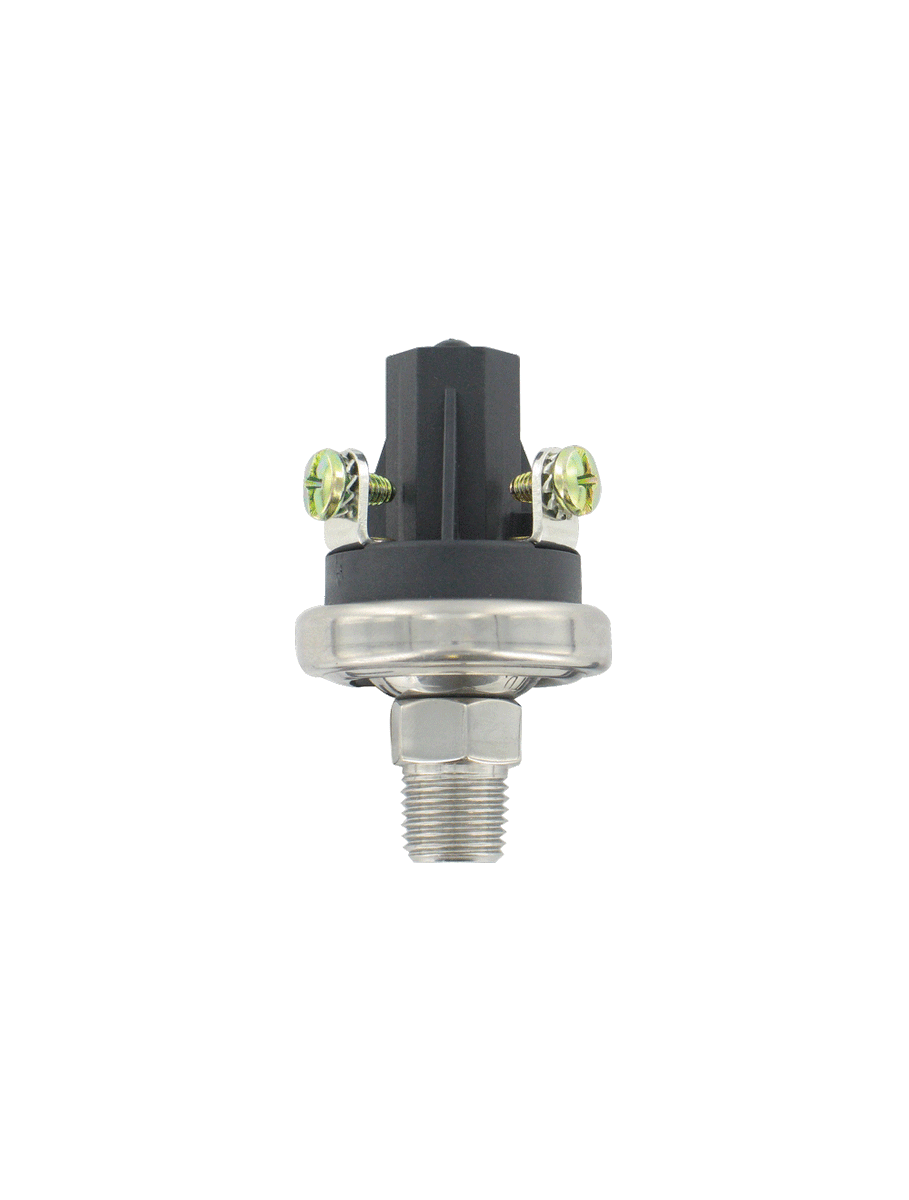

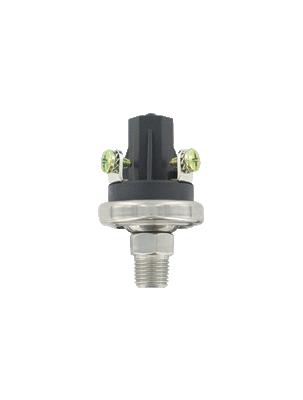

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A6-653221

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments A6-653221 Documents

Instruction Manual Series A6 Catalog Page More Info

Overview

Details for A6-653221

Dwyer Instruments A6-653221: Precision Pressure Switch for Demanding Industrial ApplicationsThe Dwyer Instruments A6-653221 is an industrial-grade pressure switch engineered for accurate and reliable monitoring of pressure levels in diverse applications. Its rugged construction and advanced features make it an indispensable tool for engineers and maintenance professionals in various industries. Key Features and Benefits: * Adjustable range of 25-50 psi for precise pressure control * NEMA 4 explosion-proof enclosure for safe operation in hazardous environments * Stainless steel wetted parts offer corrosion resistance and durability * Electrical rating of 10 amps at 120VAC for high-power handling * UL and CSA certified for safety and quality assurance Applications: The Dwyer Instruments A6-653221 pressure switch finds applications in a wide range of industries, including: * Petrochemical * Power generation * Manufacturing * HVAC and refrigeration * Aerospace Shop our HVAC supply store Now for Unbeatable Prices and Fast Shipping!

SERIES A6 DURABLE PRESSURE SWITCH

Designed for Extended Duty, Simple and Reliable

Series A6 Durable Pressure Switches have been specifically designed to stand upto extended duty applications. These switches are constructed with a polyimide filmdiaphragm and are compatible with a variety of fluids. For ease of installation, theswitches come with a 1/4" male NPT process connection and can be mounted in anyorientation. The Series A6 pressure switches are compact and have great set-pointintegrity, and feature simple, easy set-point field adjustment.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

OEM
Process equipment
Process applications

High switch cycle means long life for extended duty applications
Mounting in any position and feature simple makes a reliable switching for equipmentand OEM applications

Specifications

Series: A6 DURABLE PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: A6 DURABLE PRESSURE SWITCH
Service: Air; motor oils; transmission oils; jet fuels; and similar hydrocarbon media. (Not for water use).
Wetted Materials: Base: 304 SS; Diaphragm: polyimide film.
Temperature Limits: -40 to 248°F (-40 to 120°C).
Pressure Limits: Operating Pressure: 150 psi (10.3 bar) for 0.5-24 psi set point ranges; 250 psi (17.2 bar) for 25-150 psi set-point ranges. Proof Pressure: 500 psi (34.5 bar). Burst Pressure: 750 psi (51.7 bar) for 0.5-24 psi set point ranges; 1250 psi (86.2 bar) for 25-150 psi set point ranges.
Enclosure Rating: General purpose or with cover: IP65 - Weatherproof.
Repeatability: ±10% of set point.
Switch Type: 1 SPST NO; 1 SPST NC. NO and NC switch independent from each other.
Electrical Ratings: Resistive: 15 A @ 6 VDC; 8 A @ 12 VDC; 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC; 0.5 A @ 240 VAC.
Electrical Connections: #8-32 screw terminals.
Process Connection: 1/4" male NPT.
Mounting Orientation: Switch can be installed in any position.
Set Point Adjustment: Screw.
Weight: 0.13 lb (0.06 kg).
Agency Approvals: CE.
