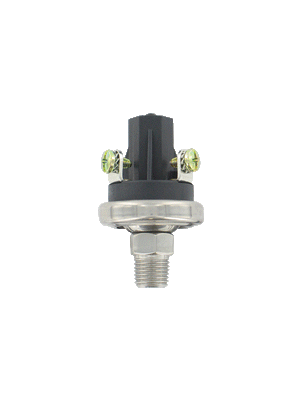

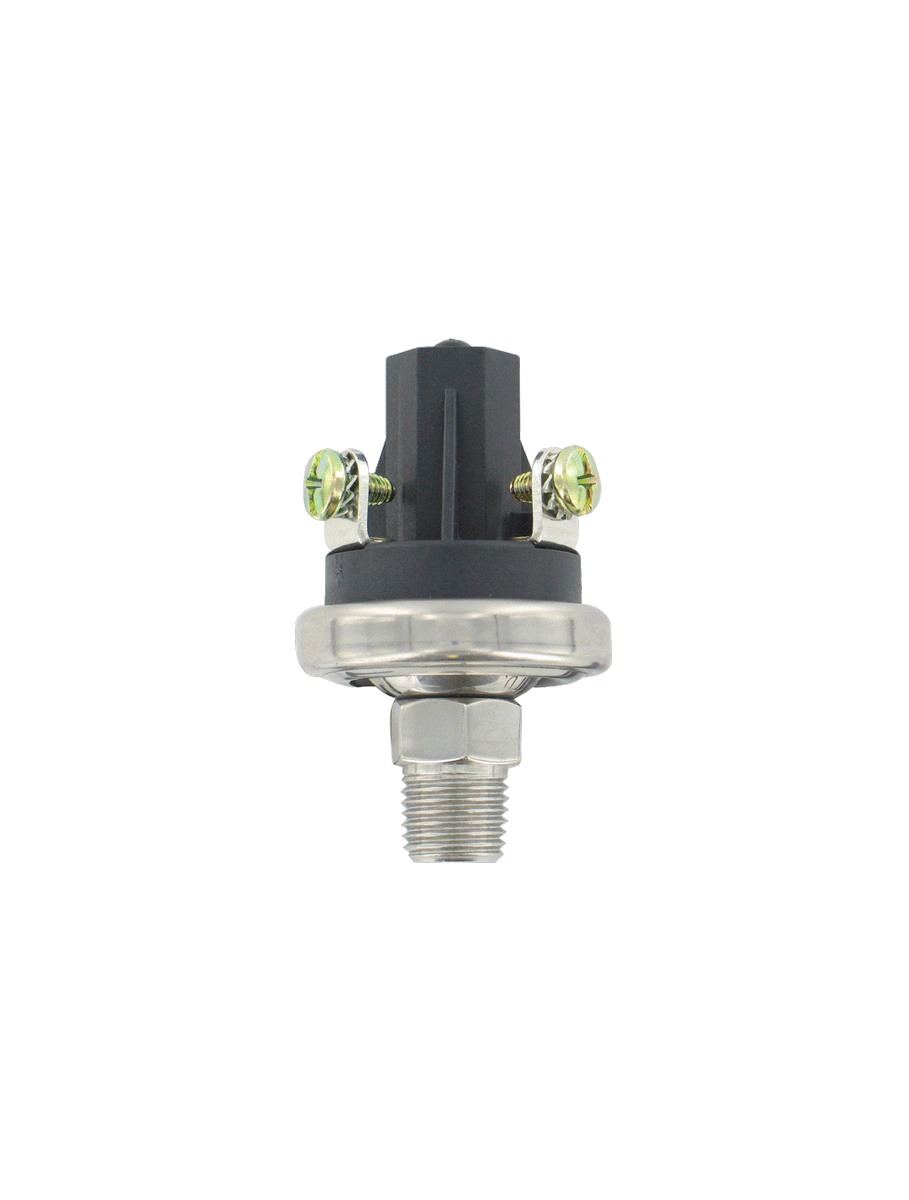

A6-251221 | Durable brass pressure switch | adjustable from 1.1 to 3 psi | SPDT | 1/4" NPT male connection. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A6-251221

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments A6-251221 Documents

Instruction Manual Series A6 Catalog Page More Info

Overview

Details for A6-251221

Dwyer Instruments A6-251221 Pressure Switch: Precise Pressure Control for Industrial Processes The Dwyer Instruments A6-251221 Pressure Switch is a precision-engineered device designed to monitor and control pressure levels in industrial applications. With an adjustable pressure range of 1.1-3 PSI, this switch offers accurate and reliable pressure measurement. Its durable construction ensures long-lasting operation in harsh industrial environments. Key Features: * Adjustable pressure range of 1.1-3 PSI * Snap action switching for precise control * Durable construction for industrial applications Benefits: * Monitors and controls pressure levels with precision * Prevents over-pressurization and ensures system safety * Reliable and long-lasting performance Applications: * Industrial machinery and equipment * Fluid systems * Air compressors * HVAC systems Trust our HVAC supply store for the best prices and fast shipping on Dwyer Instruments pressure switches and other industrial products. Order now and ensure precise pressure control for your critical industrial processes!

SERIES A6 DURABLE PRESSURE SWITCH

Designed for Extended Duty, Simple and Reliable

Series A6 Durable Pressure Switches have been specifically designed to stand upto extended duty applications. These switches are constructed with a polyimide filmdiaphragm and are compatible with a variety of fluids. For ease of installation, theswitches come with a 1/4" male NPT process connection and can be mounted in anyorientation. The Series A6 pressure switches are compact and have great set-pointintegrity, and feature simple, easy set-point field adjustment.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

OEM
Process equipment
Process applications

High switch cycle means long life for extended duty applications
Mounting in any position and feature simple makes a reliable switching for equipmentand OEM applications

Specifications

Series: A6 DURABLE PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: A6 DURABLE PRESSURE SWITCH
Service: Air; motor oils; transmission oils; jet fuels; and similar hydrocarbon media. (Not for water use).
Wetted Materials: Base: 304 SS; Diaphragm: polyimide film.
Temperature Limits: -40 to 248°F (-40 to 120°C).
Pressure Limits: Operating Pressure: 150 psi (10.3 bar) for 0.5-24 psi set point ranges; 250 psi (17.2 bar) for 25-150 psi set-point ranges. Proof Pressure: 500 psi (34.5 bar). Burst Pressure: 750 psi (51.7 bar) for 0.5-24 psi set point ranges; 1250 psi (86.2 bar) for 25-150 psi set point ranges.
Enclosure Rating: General purpose or with cover: IP65 - Weatherproof.
Repeatability: ±10% of set point.
Switch Type: 1 SPST NO; 1 SPST NC. NO and NC switch independent from each other.
Electrical Ratings: Resistive: 15 A @ 6 VDC; 8 A @ 12 VDC; 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC; 0.5 A @ 240 VAC.
Electrical Connections: #8-32 screw terminals.
Process Connection: 1/4" male NPT.
Mounting Orientation: Switch can be installed in any position.
Set Point Adjustment: Screw.
Weight: 0.13 lb (0.06 kg).
Agency Approvals: CE.
